Help CenterHigh Quality 1C4E EoC Converter With 1 BNC Port and 4x Ethernet Ports
Related Products
-
Manufacturer 10/100M Ethernet Over Coaxial EOC ConverterUS$ 1 - 30MOQ: 1 Piece -
Fast EoC Converter With 1 BNC Port and 4x Ethernet PortsUS$ 1 - 50MOQ: 1 Piece
-
Factory 10/100M Fast Ethernet Over Coaxial With 1 BNC ConnectorUS$ 1 - 30MOQ: 1 Piece
-
Ethernet Over Coaxial Converter With 4x Ethernet PortsUS$ 1 - 50MOQ: 1 Piece
-
10/100M EOC Converter With 4x BNC Ports(ONV4C1E-3)US$ 1 - 50MOQ: 1 Piece
Product features
1. Analog monitoring surveillance and HD network upgrading without replacing the coaxial cable
2. Long distance network extended and can be up to 200 meters
3. Support multi-point access, one point to multi-point access
4. Plug and play, no need to set
5. Long distance centralized power supply, the effect is equivalent to PoE power supply
6. Transmission via coaxial cable, twisted pair, telephone line and other transmission media
7. There must be two or more transmissions, the same link(within the same physical coaxial or twisted pair) just set up the master device to support multiple devices work simultaneously

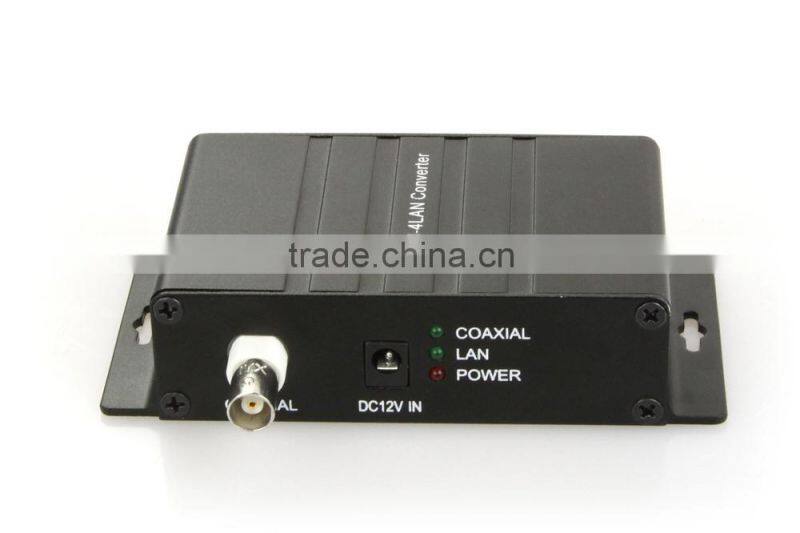

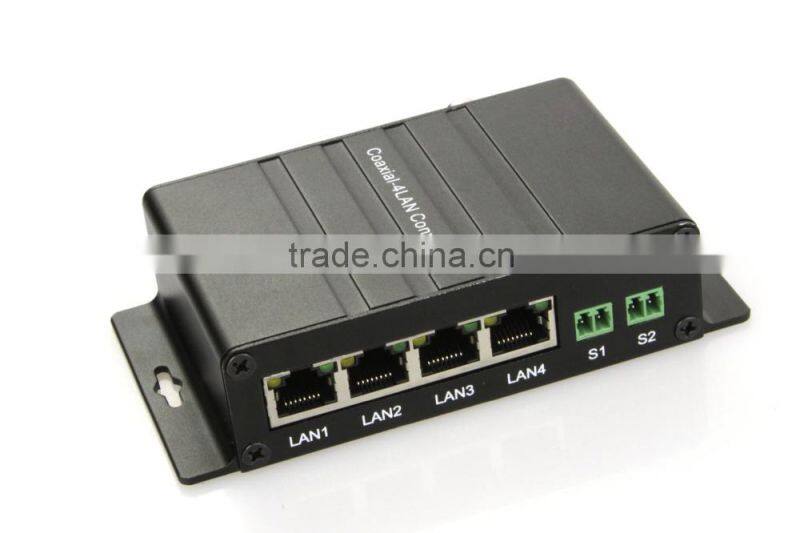

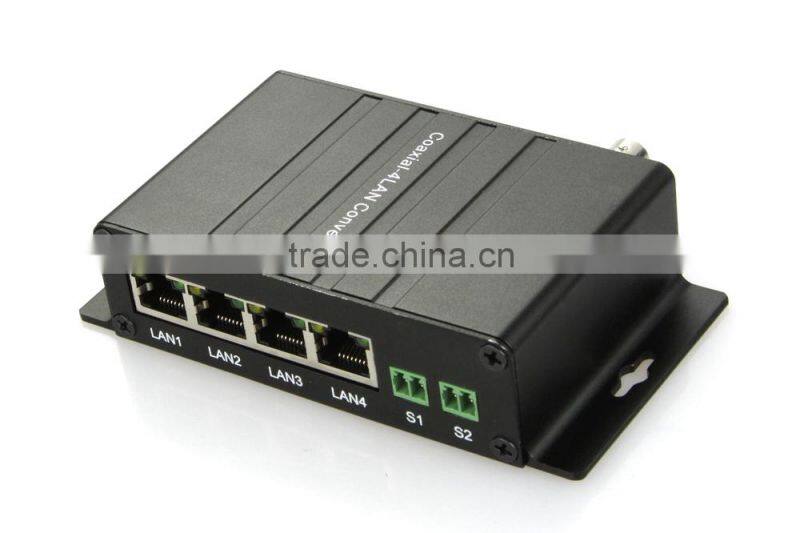

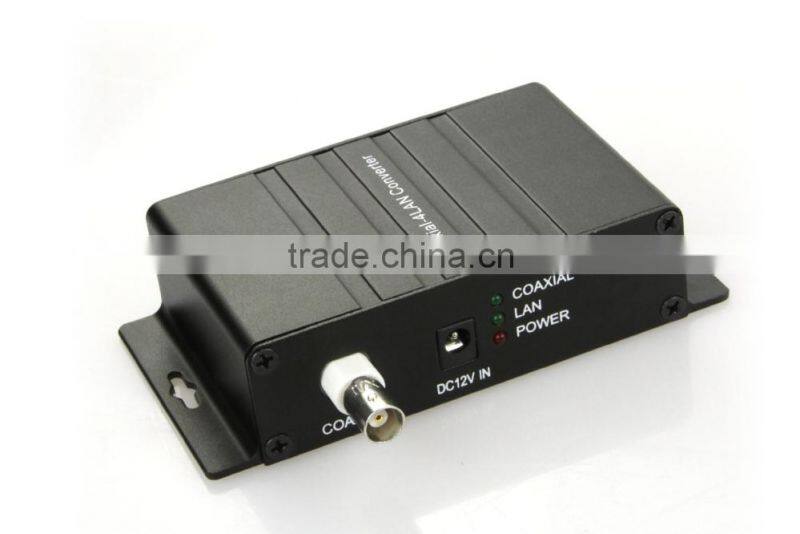

The picture
Specification
| Product Name | 10/100M 1C4E Ethernet over Coaxial EOC Converter |
| Product Model | ONV1C4E-3 |
| Transmission Media | Coaxial Cable,Twisted Pair |
| Network Port | 10/100M auto-sensing RJ45 port |
| Connector | 4 RJ45 connectors,1 BNC connector |
| Transmission Range/Rate | Cable length less than 400M——92Mbps; Cable length less than 1000M——74Mbps; Cable length less than 2000M——30Mbps; |
| Coaxial Input/Output | BNC port/ 75ohm |
| Led Indicator | Network cable connected right – LED light is on Video cable connected right –LED light is flashing |
| Master/Slave Setting | Master mode solidified |
| Power Supply | 12V DC,180mA |
| Max Power | 2.2W |
| Working Environment | Working Temperature:-20℃ ~40℃; Relative Humidity:5%~95%, no condensation; |
| Dimension | 105X68X32mm |
| Weight | 0.24Kg |
| Radiation | FCC Class A, CE |
| Warranty | 1 year warranty, life-time maintain |
Order Information
Product Model: ONV1C4E-3
Product Description: 1X 100Mbps 1C4E Coaxial Cable EOC Converter,4X 10/100M auto-sensing RJ45 port,1X Coaxial Input/Output BNC port,1X Power Supply(12V DC,180mA)
Ordering List: Default ONV1C4E-3 Transmission 300 meters
Product Model | Transmission Distance | Cable Type | ||
75-5 Coaxial Cable | Twisted Pair | Telephone Line | ||
ONV1C4E-3 | 300 meters | 100Mbps | 80 Mbps | 60 Mbps |
ONV1C4E-6 | 600 meters | 90 Mbps | 60 Mbps | 50 Mbps |
ONV1C4E-12 | 1200 meters | 70 Mbps | 40 Mbps | 30 Mbps |
ONV1C4E-15 | 1500 meters | 50 Mbps | 30 Mbps | 20 Mbps |
ONV1C4E-20 | 2000 meters | 30 Mbps | 15 Mbps | 10 Mbps |
Accessories in the Packag
Packing Lists | 100Mbps 1C4E Coaxial Cable EOC Converter ONV1C4E-3 |
Power Adapter | |
User Manual | |
Guarantee Card |
e
Our factory and sale office
Certification
More inforamtion, please feel free to contact us.
