Home > Products > Analog Optical Transceiver > Manufacthrer 6 port gigabit poe network switch 802.3af(ONV-POE33064P-N)
Manufacthrer 6 port gigabit poe network switch 802.3af(ONV-POE33064P-N)
- 500000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
- S5720-36C-EI-28S Combination Configuration (28 Gigabit SFPs, 4 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
- Huawei S5720-28X-SI-24S-AC (24 Gigabit SFPs, 8 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, AC powered, front maintenance)
- S5731-S24P4X 24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, PoE+
- S5720-56C-EI (48 10/100/1000Base-T Ethernet ports, 4 10 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
- S5735-L48T4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
- S5735-L32ST4X-A1 24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access
Product Details
Products Status: | Stock | Ports: | Other, ≤ 8 | Transmission Rate: | 10/100/1000Mbps |
Function: | POE, QoS | Communication Mode: | Other, Full-Duplex & Half-Duplex | Certification: | CE Mark ,commercial; CE/LVD EN60950, RoHS |
Switch Capacity: | 8.8Gbps | Brand Name: | ONV | Model Number: | ONV-POE33064P-N |
Place of Origin: | Guangdong, China |
Product Description
10/100/1000M 6 port gigabit poe switch
Feature
1. Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras
2. Port 3 to port 6 compatible with IEEE802.3af standard power
3. Supply (Maximum power of each port is 15.4W)
4. 4x 10/100 /1000Mbps automatic adjustment RJ45 ports
5. Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab
6. Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard
7. Auto-flip ports (Auto MDI/MDIX)
8. Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
9. Maximum PoE Power: 60W( all PoE ports, port 3 to port 6)
10. Store-and-forward architecture, 192K forwarding memory
11. All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
12. Wall-mounted design, easy to install and use
13. Automatic adjustment, plug and play, no need software and protocol conversion

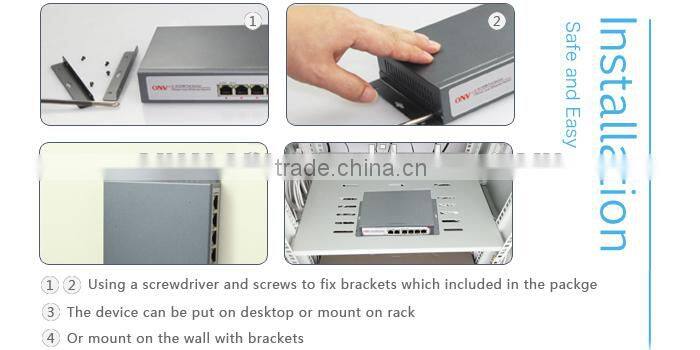

Installation Steps
Application Situations
1. Million HD surveillance transmission and power supply
2. Wireless AP distribution transmission and power supply
3. VoIP transmission, intelligent home systems
4. City intelligent traffic monitoring system (ITS), safe city, and wireless city
5. Highway surveillance system, electronic road surveillance, snapshot system
6. large industrial factory& enterprise security surveillance system, network multifunction system
7. Remote multimedia teaching & campus surveillance, video conferencing systems
8. Building intercom, wireless communications, video surveillance

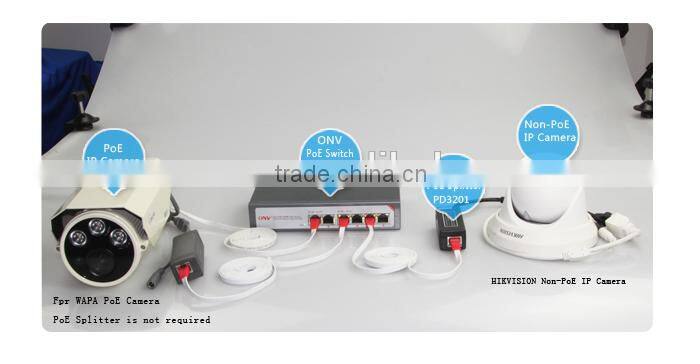

Physical Application Reference
The picture
Specification
Product Name | 6-Port Gigabit PoE Switch with 4 Gigabit PoE Ports |
Model | ONV-POE33064P-N |
Connector Type | 4x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment) |
Network Media | 1000BASE-TX: Cat5 or more UTP(≤100 meter) |
Bandwidth | 8.8Gbps |
Address Database Size | 4,000 |
MTBF | 190,000 hours (about 21 years) |
Network Latency | Maximum delay less than 20μs |
Forwarding Mode | Store-and-forward architecture, 192K forwarding memory |
Buffer Memory | 96KB |
Network Protocols | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab;IEEE 802.3x Flow Control;IEEE 802.1af DTE Power via MDI |
LED Display | System: Power; Every Port: connection status, PoE working status |
Power Input | AC100-240V |
PoE Port Power | each port power is 15.4W |
PoE Standard | IEEE 802.3af international standard |
Power Consumption | 60W |
Working Environment | Working temperature:-20°~ 55°C , Storage temperature: -40°~ 85°C,Working Humidity: 5%~95%, non-condensing |
Certification | CE Mark ,commercial; CE/LVD EN60950; RoHS |
Radiation | CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
Power Supply Type | End-span |

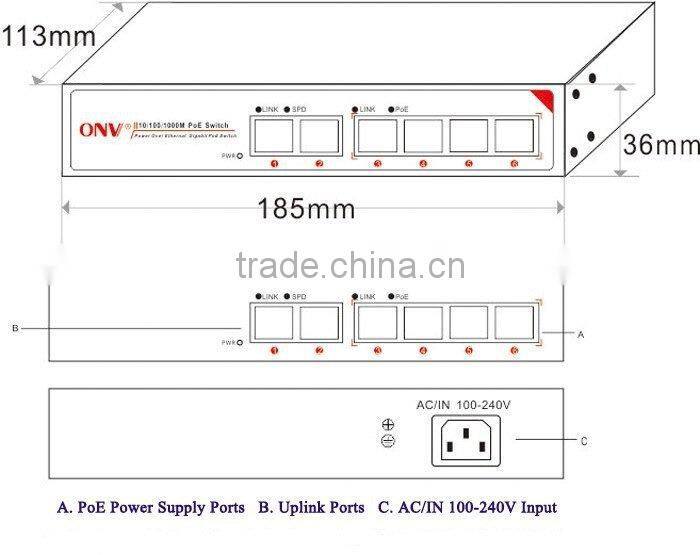

Product Size | LxWxH: 185 x 113 x 36mm, 0.65kg |
Package Size | LxWxH: 250 x 210 x 90mm |
Warranty | 1 year warranty |
Order Information
Product Model: ONV-POE33064P-N
Product Description: 4x Gigabit PoE ports+2x Gigabit Uplink ports PoE switch, among which port 3 to port 6 supports POE IEEE 802.3af international standard, each port power is 15.4W, the whole power is 60W
Ordering Note: Default PoE power supply type is end-span(12, 36 line pair), mid-span(45, 78 line pair) optional

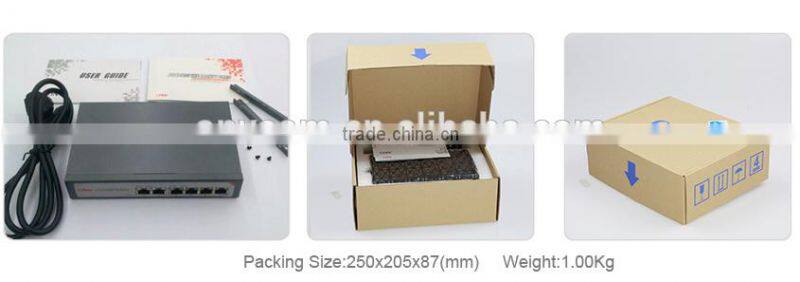

Accessories in the Package:
Package List: | 6-Port PoE switch with 2 Gigabit Uplink ports and 4 Gigabit PoE ports (ONV-POE33064P-N) |
Power Cable | |
User Guide | |
Warranty Card |

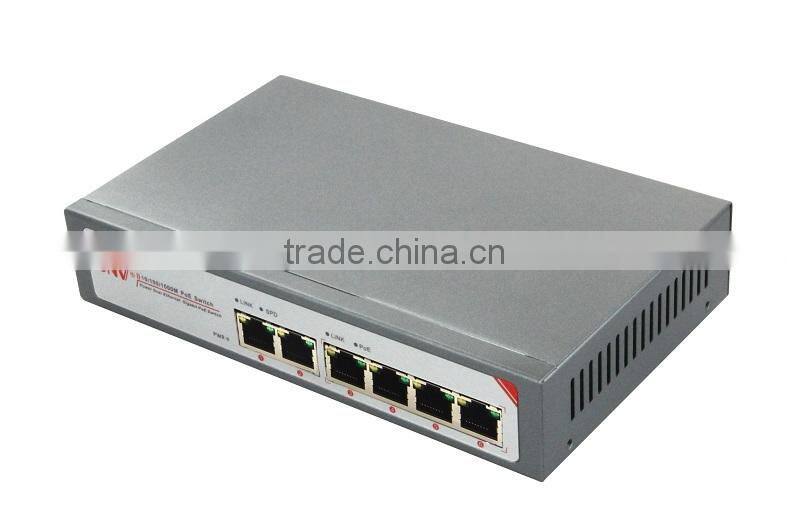

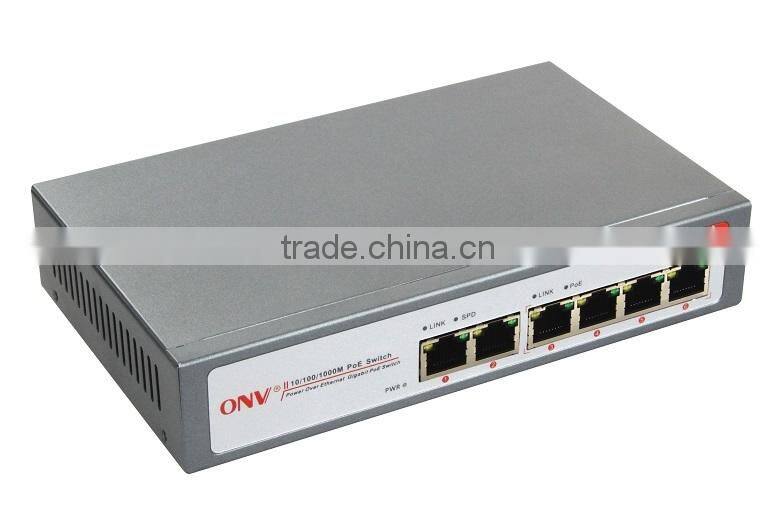

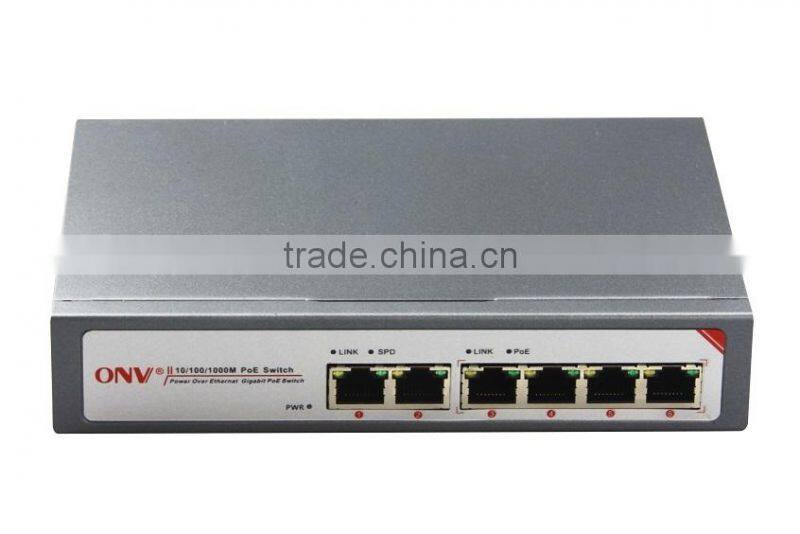

Product Display
Our factory picture
Shipment
Contact: Joe Xie
Skype: onvsz01
Mobile :+86-13006653553
