Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 2 Channel Analog Video Audio Fiber Optic Transmitter Receiver With 2CH Video+2CH Audio

2 Channel Analog Video Audio Fiber Optic Transmitter Receiver With 2CH Video+2CH Audio

US$ 109 - 170 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ONV

Model Number:

ONVDT/R2V2A-S

Contact Supplier Request Quote Chat Now

Optical Network Video Technologies (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ONV

Model Number ONVDT/R2V2A-S

Product Description

2 Channel analog video audio fiber optic transmitter receiver with 2CH Video+2CH Audio

Features
1.Card-type or Stand-alone type for your choice; suitable for concentration management in 2U/4U Racks
2.10 –digit coding and non-compression video transmission
3. supporting any high –resolution video signal
4.Video Band-Width: 10MHz
5.automatically compatible with PAL, NTSC and SECAM video format
6. With APC circuit, constant output optical power and wide dynamic range
7. Large capacity of gigabit optical fiber transmission, easy for upgrading
8.Supporting video intact regenerative relay
9. Supporting advanced SNMP standards, realise long-distance web-controlling
10. LED indication of power and other parameter status, monitoring real-time operation
11. Modularized and industrialized design ensuring reliability and flexibility

12. Advanced auto- adaptive technology avoiding on-site electric or optical regulation

13.Capable of auto resumption of power fuse

Target Industries
1. Intelligent transportation supervisory system(ITS)
2. High-speed Way supervisory/Tele-Communication System
3. Security protection system, TV medical treatment
4. Long-distance Muti-media Schooling, Campus monitoring
5. Long-distance broadcast television transmission system
6. High-building Security Protection, Military Tele-Com projects

Technical parameter list
Product Name	2 Channel analog video audio fiber optic transmitter receiver with 2CH Video+2CH Audio
Product Model	ONVDT/R2V2A-S
Connector Type	2 BNC port, 2 Audio, 1 FC fiber port
Video Interface	BNC
Video Bandwidth	10MHz
Video Bit Wide	8/10/12 bit
Differential Gain	(10%-90%APL) DG<1%
Differential Phase	10%-90%APL) DG<0.7dB
Video SNR	S/N≥70dB
Audio Interface	Industrial terminal blocks
Audio Bandwidth	20Hz~20kHz
Audio SNR	S/N≥85dB
Protocol	IEEE 802.3U 100Base-TX , 10/100M Ethernet standard
Power Supply	External power adapter(input: AC100-240V 50/60Hz; output: 5V 1A
Power Consumption	2.5W(Input:DC5V 1000mA)
Working Environment	Environment temperature: -40 ℃~+85 ℃; storage temperature:-45 ℃~+95 ℃; relative humidity: 0~95%

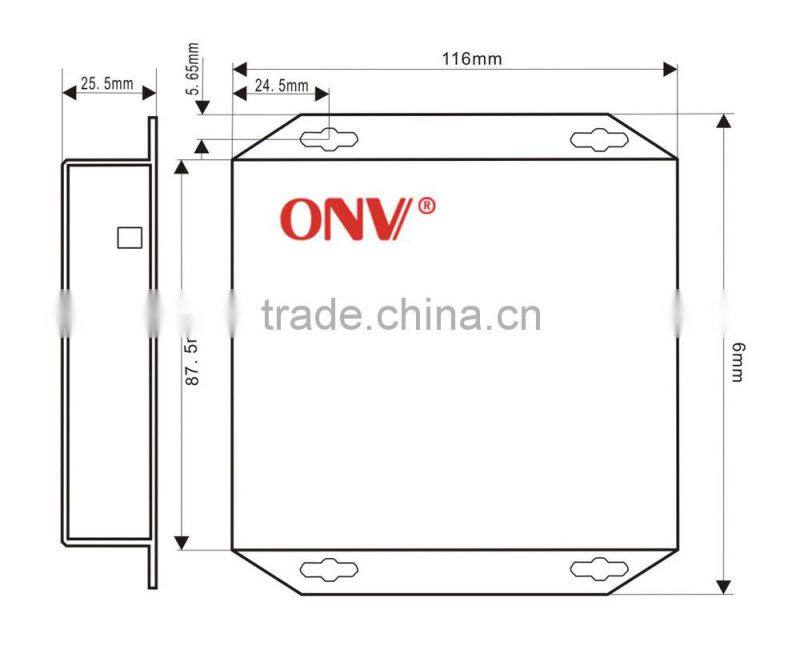

Dimension	LxWxH:116X87.5X25.5mm
Certification	FCC Class A, CE, ROHS
Warranty	3 years

Order Information(Packed in standalone and card type,Card-type is suitable for the 4U Rack)

Type Number	Specification (Interface:FC)	Max Transmission Distance (KM)
ONVDT/R2V2A-M	2 Video+2 forward Audio	2 KM(Multi-mode)
ONVDT/R2V2A-S	2 Video+2 forward Audio	20KM(Single-mode)
ONVDT/R2V22A-S	2 Video+2 Bi-directional Audio	20KM(Single-mode)
ONVDT/R2V2A-S	2 Video+ 2 stereo Audio	20KM(Single-mode)
ONVDT/R2V4A-S	2 Video+4 forward Audio	20KM(Single-mode)
ONVDT/R2V42A-S	2 Video+4 Bi-directional Audio	20KM(Single-mode)

Note: The interface can be ST or FC, according to the different requirements from customers. The fiber optic transmission distance can be ordered. ( 40km, 60km, 100km)

Accessories in the Package
