0.006-1340ml/min BT301L Intelligent Peristaltic Pump
- 1000 Piece / Pieces per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | Leadfluid | Model Number: | BT301L |
Theory: | Rotary Pump | Structure: | Gear Pump | Usage: | Other, Dosing, Metering, Fluid Transfer |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electricity |
Pressure: | Low Pressure | Application: | Metering |
Product Description

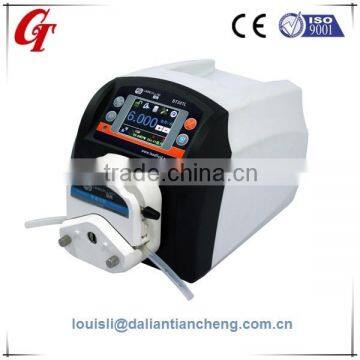

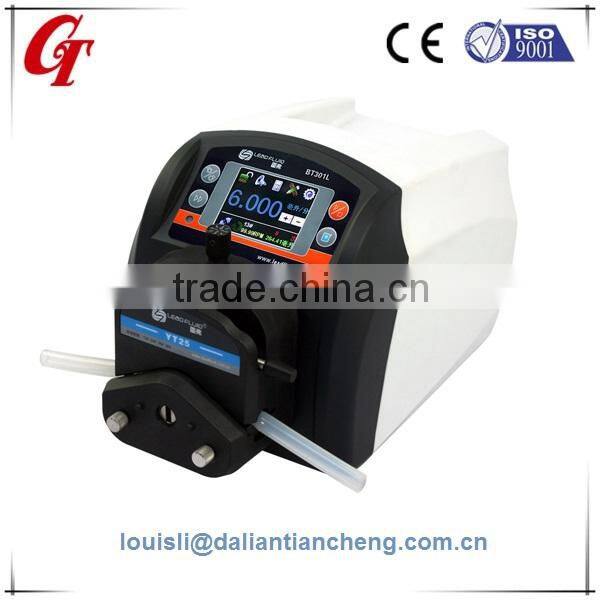

0.006-1340ml/min BT301L Intelligent Peristaltic Pump
1.Intelligent flow type peristaltic pump, display flow rate ,speed,tube,reversible direction,working mode etc.
More easy to help the customer operation and view the work situation.
2.Color LCD touch screen operation can help the customer change the speed,flow rate ,tube very easy. It is so convenient as a touch screen mobile.
3.Modbus protocol make the users to connect the PLC and other equipment in a direct way.
We have many types of peristaltic pumps for your option, with different flow range.
OEM service is also acceptable, and we can put your logo on the products.
BT301L Intelligent peristaltic pump flow range: 0.006-1340 ml/min. It adopts color LCD displaying and touch screen technology. Easy operation interface is intuitive and clear. This pump is mainly applicable to the accurate transmission control;It also display, control flow rate and accumulate dispensing volume as the users requirements. Meanwhile, it realizes repeated timing quantitative transmission. Suitable for precise metering and dosing, highest precision can amount to 0.5%, in order to reduce unnecessary peristaltic pump noise, it adopts the intelligent temperature control technology. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Feature
• Color LCD displaying, touch screen and keypad for operating
• Reversible direction, start/stop and full speed, state memory (power-down memory).
• Speed resolution is above 0.1rpm.
• Display and control flow rate, accumulate dispensing volume automatically.
• Calibrating Flow function.
• Easy dispensing function, it realizes the repeat timing quantitative dispensing, without the time controller.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise.
• External high-low electrical level controls the start/stop,reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• ABS plastic housing, creative streamlined appearance.
• Can drive multi-channels and various types of pump heads.
• Optional footswitch or timer for dispensing fluid.
Technical Parameters for BT301L Matching with Different Pump Heads and Tubes
Drive Model | BT301L |
Pump Head Model | YZ15,YZ25,YT15,YT25 |
Tube | 13#~19#,24#25#35#36# |
Flowrate | 0.006-1340ml/min |
Accuracy | ±0.5% |
Speed | 0.1-350rpm |
Speed Resolution | 0.1 rpm |
Power Supply | AC 220V±10%,50Hz/60Hz(standard); AC 110V±10%,50Hz/60Hz(optional) |
Power Consumption | <40W |
External Control | Input level 5V,12V(standard),24V(optional) External control analog 0-5V(standard),0-10V,4-20mA(optional) |
External Communication Interface | RS485 communication interface, MODBUS protocol is available. |
Ambient Temperature | 0 ~ 40℃ |
Relative Humidity | <80% |
IP Grade | IP31 |
Dimensions(LxWxH) | 255x181x198 mm |
Weight | 4.7KG |

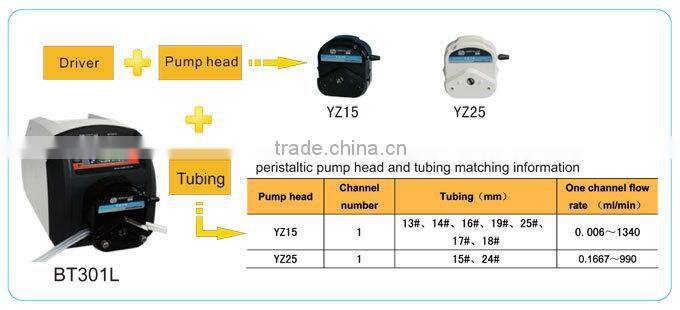

Applicable pump head and tubing, flow parameters
Drive type | Pump head | Channel number | Tubing(mm) | One channel flow rate (ml/min) |
BT301L(streamline plastic housing) | YZ15(YT15) | 1 | 13#14#16#19#25#17#(18#) | 0.006~990(1300) |
YZ25(YT25) | 1 | 15#24#( 35#36#) | 0.1667~990(1600) |
Intelligent Peristaltic Pump(Hose Pump) BT301L(YT15)
Peristaltic Pumps Application:
Quality is always our top priority in our business. We have excellent quality control system and professional quality engineers. We believe the best way to avoid quality problems is not to let any product with quality issue out of the factory. At the same time, we provide 1 year quality guarantee(from B/L date).
