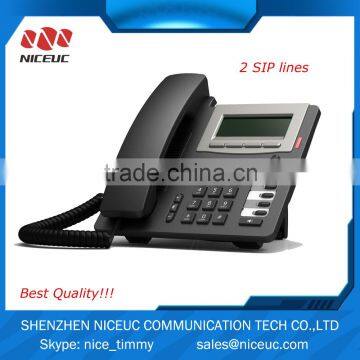

Cheap VoIP SIP IP Phone with 2 SIP lines
Features:
l Support SIP 2.0 (RFC3261) and correlative RFCs
l Support IAX2,iax2 line call
l SIP support 2 SIP lines. Can connect to SIP1 and SIP2 server at the same time
and can incoming and outgoing via any SIP server.
l Support multiple road call waiting in line
l Codec:G.711A/u, G.7231 high/low, G.729a/b, G.722.1,G.726
l Support HD voice
l Echo cancellation: Support G.168, and Hands-free can support 96ms, Hand free Speaker Phone
l Support Voice Gain Setting, VAD, CNG
l Full duplex hands-free speaker phone
l SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call
l DTMF Relay:support inband, SIP info, RFC2833
l 9 kind of ring type and 3 user-defined music ring
l Large dot matrix LCD display and softkeys make user easier to use
l Support headset jack- RJ9
l 4 DSS Key
l Support 5 EXT consoles, each console with 26 keys
l Soft keys programmable; function keys programmable
l Multilanguage realizes localization
l SIP application: support call forward/ transfer (blind/attended)/ holding/ waiting/ 3 way talking/ conference/ paging and intercom/ call park/call pickup/ join call/ redial and unredial/ click to dial/ secondary dialing automatically
l Call control features: flexible dial map, hotline, empty calling no. reject service, black list for reject authenticated call, white list, limit call, no disturb, caller ID, CLIR (reject the anonymous call), CLIP (make a call with anonymous), Dial without register
l Incoming calls /outgoing calls / missing calls. Each support 100 records.
l Support Phonebook 500 records
l Support SMS and Speed Dial
l Support XML phonebook/browser
l Support SRTP and Blf
l Code synchronization via IP PBX/IMS
l Support click to dial via web phone book
l Support action URL/active URI
l Voice codec setting for each SIP line
l Hands-free headset ringing choice
Network Features
l WAN/LAN: 10/100M Ethernet ports, supports Route and Bridge mode.
l Support bridge working as hub(optional)
l Support PPPoE for xDSL and PoE(optional)
l Support VLAN(voice vlan/data vlan)
l Support 802.1
l Support basic NAT and NAPT
l NAT transverse:support STUN client
l Support DHCP client on WAN
l Support DHCP server on LAN
l Support main DNS and secondary DNS server.
l Support DNS Relay, SNTP Client, Firewall, open VPN
l Support VPN (L2TP) and DMZ
l Network tools in telnet server: including ping, trace route, telnet client
Maintenance and Management
l Web ,telnet and keypad management
l Management with different account right
l Upgrade firmware through POST mode and HTTP, FTP or TFTP
l Support dhcp option66 auto provisioning
l Telnet remote management/upload/ download setting file
l Safe mode provide reliability
l Support Auto Provisioning to upgrade firmware or configuration file with HTTPS
l Support TR-069(optional) and Syslog
Specification
Item |
M8 |
|
Power Adaptor |
Input:100-240V Output:5V/1A |
|
|
port |
WAN |
10/100Base-T RJ-45 for WAN |
LAN |
10/100Base-T RJ-45 for PC |
|
headset |
RJ-9 |
|
EXT |
RJ-11 |
|
Power Consumption |
Idle: 2.5W/Active: 2.8W |
|
LCD Size |
75 x 28mm 128X48 |
|
Operation Temperature |
0-4 |
|
Relative Humidity |
10-65% |
|
Main Chipset |
Broadcom |
|
SDRAM |
128Mbits |
|
Flash |
32Mbits |
|
Weight |
0.99kg |
|
Q: Are you trading company or manufacturer ?
A: We are factory in Telecom product from 2000 year.
Q: How long is your delivery time?
A: Generally it is 2 days only, or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How long is warranty?
A: Usually warranty is one year. If you need, we can provide with 3-years warranty.
Q: How is the technical support?
A: 7*24 hours support for ever.
Q: How can I get a sample?
A: By place an order or pay a rent, then we will ship in 2 days by Express.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
