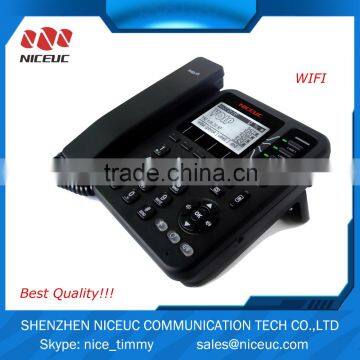

Cheap VoIP SIP Phone
Features
l Support SIP 2.0 (RFC3261) and correlative RFCs
l Support 4 SIP lines. Can connect to 4 SIP servers at the same time.
l Support multi line/HD voice
l Support iax2 line key/ IAX2
l Codec:G.711A/u, G.723.1 high/low, G.729a/b, G.722.1,G.726
l Echo cancellation: G.168 Compliance in LEC, additional acoustic echo cancellation(AEC) can reach 96ms max filter length in hands-free mode
l Support Voice Gain Setting, VAD, CNG
l Full duplex hands-free speaker phone
l SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call
l DTMF: Support SIP info, DTMF Relay, RFC2833
l 9 kind of ring type and 5 user-defined music ring
l Large dot matrix LCD display and softkeys make user easier to use
l Friendly graphic menu
l Support headset jack- RJ9
l 4 line keys defined as multi line with screen display, or used as SIP line keys
l 8 DSS keys
l Soft keys programmable; function keys programmable
l SIP application: support call forward/ transfer (blind/attended)/ holding/ waiting/ 3 way talking/ conference/pickup/ join call/ redial and unredial/ click to dial
l Call control features: flexible dial map, hotline, empty calling no. reject service, black list for reject authenticated call, white list, limit call, no disturb, caller ID, CLIR (reject the anonymous call), CLIP (make a call with anonymous), Dial without register
l Incoming calls /outgoing calls / missing calls. Each support 100 records.
l Support Phonebook 500 records,SMS,XML,Speed dial, SRTP,Blf
l Code synchronization via IP PBX/IMS
l Support EXT DSS consoles with 5max.
l Support click to dial via web phone book/ Group listening
l Voice codec setting for each SIP line
l Support keypad lock, and emergency call during the keypad lock.
l Ring play via headset or speaker setting
l Signal tone parameters customized
Network Features
l WAN/LAN: 10/100M Ethernet ports, supports Route and Bridge mode.
l Support bridge working as hub(optional)
l Support PPPoE for xDSL
l Support PoE (optional)
l Support VLAN(voice vlan/data vlan)
l Support 802.1
l Support basic NAT and NAPT
l NAT transverse:support STUN client
l Support DHCP client on WAN
l Support DHCP server on LAN
l Support main DNS and secondary DNS server.
l Support DNS Relay, SNTP Client, Firewall and open VPN
l Support VPN (L2TP) and DMZ
l QoS with DiffServ
l Network tools in telnet server: including ping, trace route, telnet client
Maintenance and Management
l Web ,telnet and keypad management
l Management with different account right
l Upgrade firmware through HTTP, FTP or TFTP
l Support dhcp option66 auto provisioning
l Telnet remote management/upload/ download setting file
l Safe mode provide reliability
l Support Auto Provisioning to upgrade firmware or configuration file(HTTPS/FTPS optional)
l Support TR-069(optional)/ Syslog
Specification
Item |
M9 |
|
|
Power Adaptor (Input/Output) |
Input:100-240V Output:5V/1A |
|
port |
WAN |
10/100Base-T RJ-45 for WAN |
LAN |
10/100Base-T RJ-45 for PC |
|
Power Consumption |
Idle:2.5W Active: 2.8W |
|
LCD Size |
53.5 x 70mm |
|
Operation Temperature |
0-40°C |
|
Relative Humidity |
10-65% |
|
Main Chipset |
Broadcom |
|
SDRAM |
128Mbits |
|
Flash |
32Mbits |
|
Weight |
0.99kg |
|
Q: Are you trading company or manufacturer ?
A: We are factory in Telecom product from 2000 year.
Q: How long is your delivery time?
A: Generally it is 2 days only, or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How long is warranty?
A: Usually warranty is one year. If you need, we can provide with 3-years warranty.
Q: How is the technical support?
A: 7*24 hours support for ever.
Q: How can I get a sample?
A: By place an order or pay a rent, then we will ship in 2 days by Express.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Modular Design, Easy Expansion
All kinds of our products use modular design, it is very easy to expand capacity by inserting modules. At first, you can place an order with small capacity, after testing, if you want to expand, it is no need to change a device, just need to buy some modules, it is very convenient.
All kinds of signalings on E1 ports
We have been producing E1 products from 2001 year. So we have excellent experience on E1 ports, they support all kinds signaling like ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS, etc. Make connection between different signalings or between PSTN and Ethernet.
All-in one interface on one device
With independent self-development ability, all kinds of interfaces can be supported by one device in our company: E1, FXO/FXS, GSM/CDMA/WCDMA, E&M, Magnet, Radio/VHF/PTT, X86/MIPs. You can install your own software into our gateway by X86 or MIPs card.
Be a Manufacturer for 17 Years
We are a professional Manufacturer and national high-tech enterprise in Telecom products from 2000 year.
We can open our registeration number to every customer. Register No.:440301104600108, if you like, you can use this number to trace and check our company and history in Chinese goverment official system.
Self-developed Ability
Independent self-developed ability let us make development according to customer's special request.
So Many Big Customers
So many big customers from all over the world have been buying our products because of stable quality.
Skype: nice_timmy, what's app/mobile: +86-186 8201 3896, we are at your services at all times.
