Home > Industrial Equipment & Components > Boiler & Furnace > Boiler > 500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler

Name: 500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler
Brand: DINGSHENG
SKU: 105509923
Availability: InStock

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler thumbnail-1

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler thumbnail-2

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler thumbnail-3

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler thumbnail-4

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler thumbnail-5

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler photo-1

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler photo-2

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler photo-3

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler photo-4

500kw Oil Heater Boiler -chain Grate Stoker Boiler,thermal Oil Boiler photo-5

US$ 7,286 - 15,324 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Natural Circulation

Usage:

Industrial

Contact Supplier Request Quote Chat Now

Henan Sheng Zhi Han Import And Export Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao or tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Natural Circulation

Usage Industrial

Structure Water Tube

Pressure Low Pressure

Style Horizontal

Fuel Coal-fired

Place of Origin Henan, China

Brand Name DINGSHENG

Model Number YGL-500MA-Y(Q)

Output Hot Water

Dimension(L*W*H) 1650*2850MM

Weight 6.7tons

Certification ISO9001-2008

After-sales Service Provided Engineers available to service machinery overseas

500kw Oil Heater Boiler -chain grate stoker boiler,thermal oil boiler

Product Description

Rated Thermal Power : 120-1400kw

thermal efficiency: 65%-92%

rated steam pressure : 0.6mpa,1.0mpa

maximum working temperature:320 degree,350degree

oil boiler capacity: 0.07 m3-200m3/h

circulating oil : 12.5-100m3/h

piping connection diameter: 50-125DN

system installed capacity: 8-35kw

boiler diameter: 1215-2200 m

boiler height: 2310-5100m

boiler weight: 2500-7300kg

Product Application

Application of thermal oil heater industry.

1.Chemical Industry --polymerization industry ,oil industry, reaction tank,distillation ,enrichment

2. Plastic industry ---plastic and squeeze to finalize the design

3. Textile industry --resin stenters ,dyeing machine and the dry room ,high temperature machine,

roller.

4.Rubber industry -rubber vulcanization heating

5.Food industry --cooking dry,vegetable oil refining

6.Wood industry --heating to finalize the design of chipboard sandwich plate ,wamu board,fiber

7.Paper industry-multi-layer cardboard of packed carton box ,dying and desiccation

8.Others-heating of metal electroplating slot ,coating condensation ,drying ,distillation of

pharmaceutical industry, reduction ,concentration,dehydration,airconditioning industry.etc

Specification

PARAMETERS:

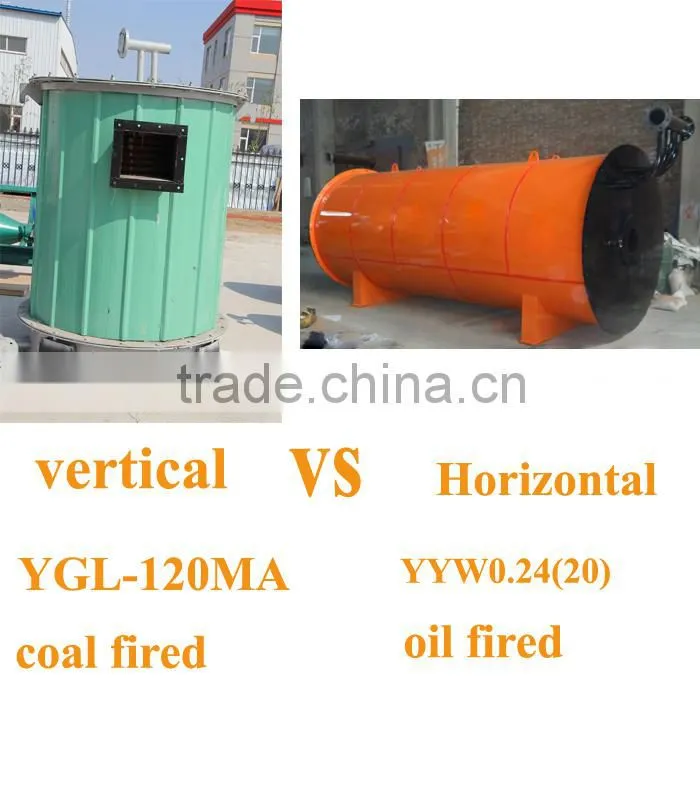

Fuel(Gas)Organic Heat-Carrier Boiler
Type		YYW0.24(20)	YYW0.35(30)	YYW0.6(50)	YYW0.9(75)	YYW1.2(100)	YYW1.5(235)	YYW1.8(150)	YYW2.5(200)	YYW3(250)
Rated thermal power(mw)		0.24	0.35	0.6	0.9	1.2	1.5	1.8	2.5	3
Thermal efficiency(%)		90	90	90	90	90	90	90	90	90
Rated Steam Pressure(Mpa)		1	1	1	1	1	1	1	1	1
Maximum working temperature		350	350	350	350	350	350	350	350	350
Capacity		0.21	0.25	0.28	0.44	0.64	0.793	1.25	1.76	1.9
Circulating oil		40	40	80	80	80	100	100	200	200
Piping connection diameter(DN)		100	100	100	100	125	125	125	150	150
System installed capacity(KW)		14	14	22	22	40	40	40	66	70
Size	Diameter	1016	1016	1216	1416	1716	1716	2000	2000	2320
Size	Height	2050	2350	2450	2900	3300	3900	4100	5100	5300

other product in our company:

Workshop

Certifications

Trade Assurance=secure payment ,

safe payment,timely delivery,quality safeguard.

With Trade Assurance, you’re covered for:

On-time shipment and Pre-shipment product quality (Optional)

explanation: If you pay $2000 to supplier ,$2000will be transfered to alibaba first .

So if the product quality is not what you need ,you could get refund $2000 from alibaba.

( the most biggest Amount of Financing in America)

Below is my contact ,if you have any question ,don't hesitate to contact with me,we will offer best service for you !

OUR

Forced-circulation Fuel Oil(gas) Package Boiler YYW boiler, Industrial thermal oil boiler price YYW boiler, Fuel (gas) Heat Transfer Fluid Heaters (Hot Oil Heater) super quality price, List of Boiler Manufacturers Oil Heater Boiler -chain grate stoker boiler, oil heater boiler
