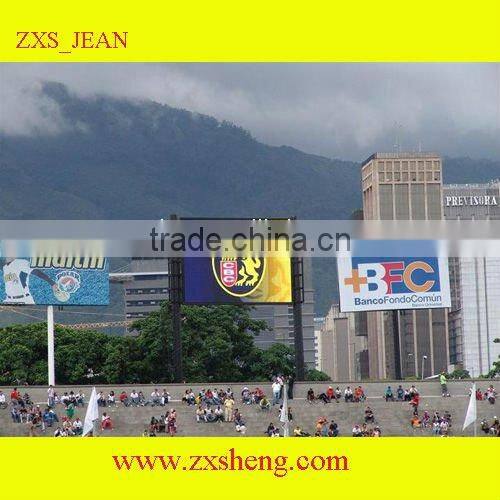

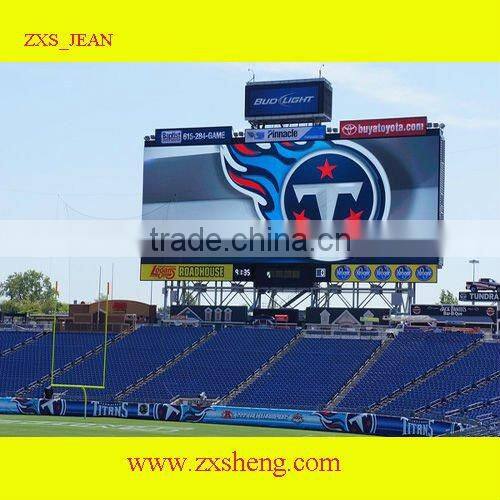

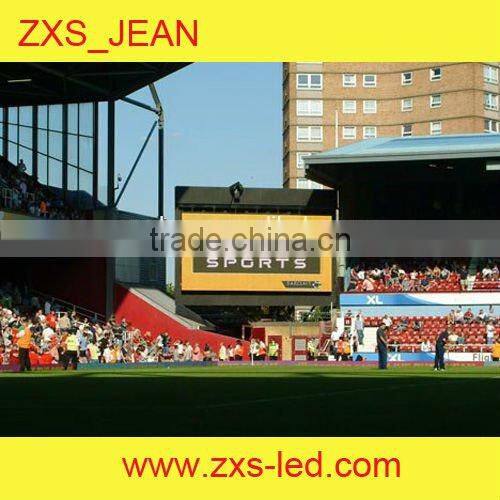

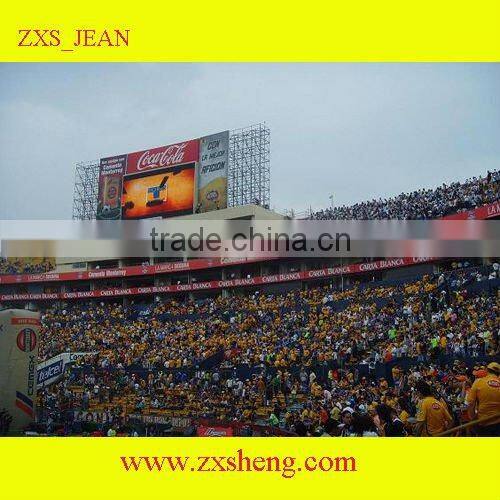

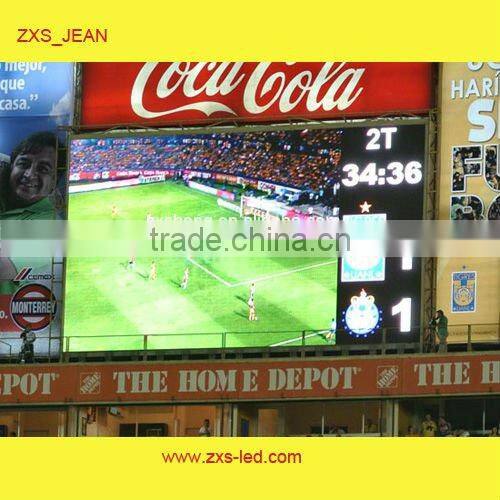

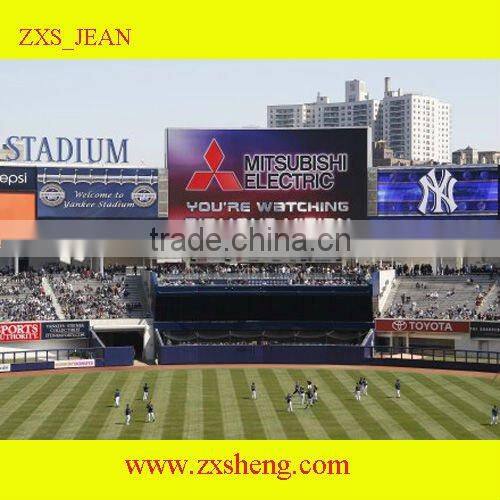

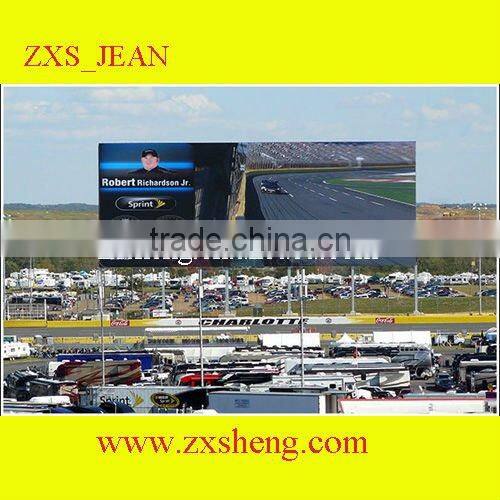

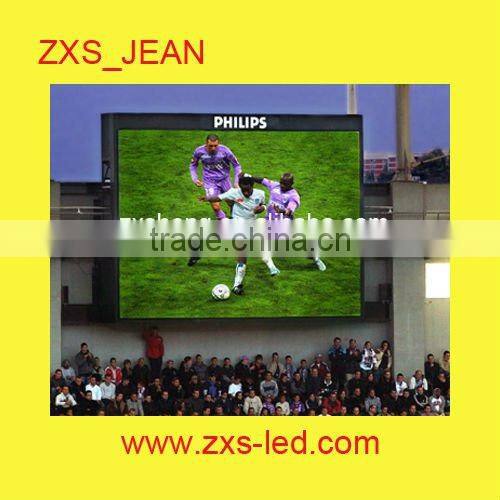

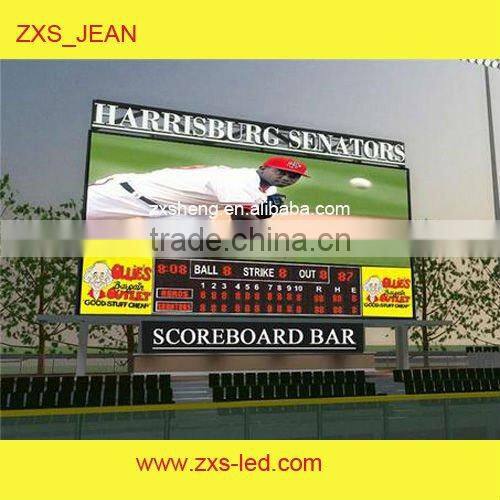

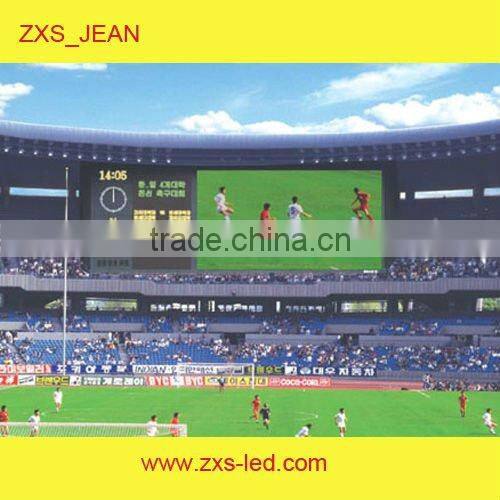

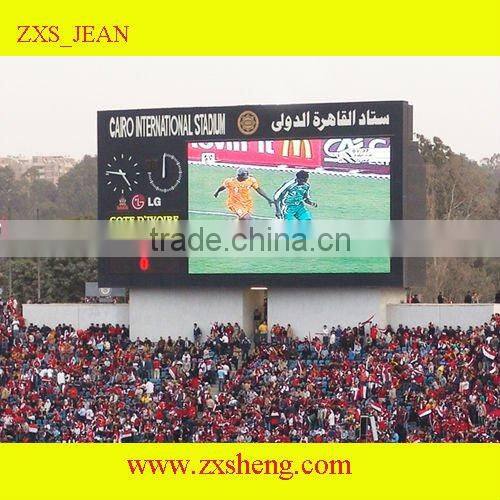

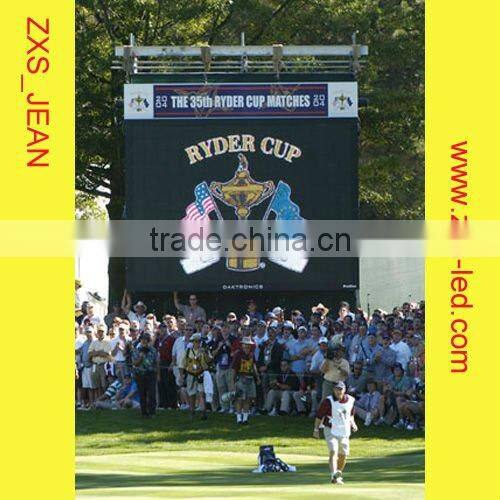

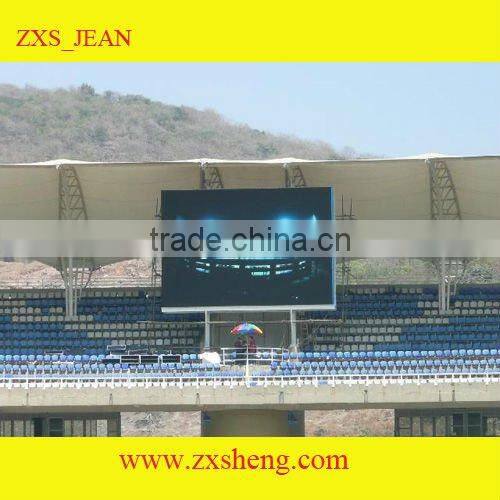

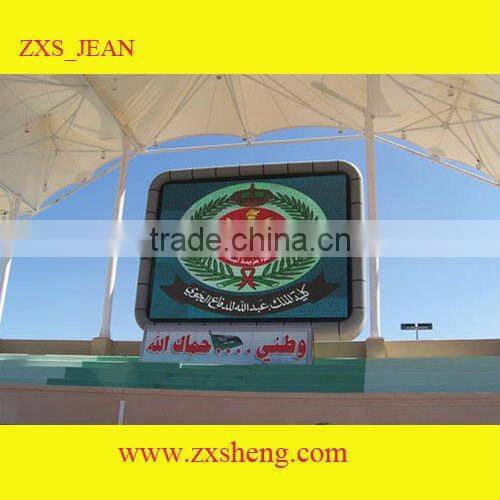

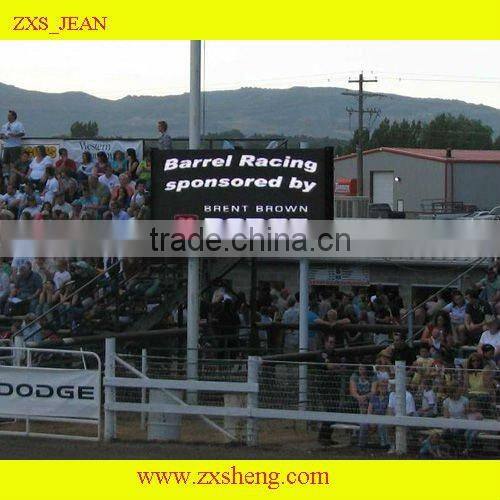

LED Stadium Video Display

Name: LED Stadium Video Display
Brand: ZXSheng
SKU: 105457185
Availability: InStock

US$ 760 - 860 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ZXSheng

Model Number:

ZXS-OS16SOD9

Shenzhen Oscarled Opto Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ZXSheng

Model Number ZXS-OS16SOD9

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 16mm

Screen Dimension 8192*6144mm

Specifications

LED Stadium Video Display:
1)LED stadium video display P16
2)3906dots/sqm
3)Stadium advertising
4)2 years warranty

LED Stadium Video Display:

No.	Specifications
1.	Item No.	LED Stadium Video Display
2.	LED chip	Silan/Opto
3.	Physical Pixel Pitch	16mm
4.	Physical Pixel Density	3906dots/sqm
5.	Pixel composition	2R1G1B
6.	Moduel Size	256*128mm
7.	Moduel resolution	16*8dots
8.	Cabinet thickness	15-18cm
9.	Bracket of cabinet	Easy to install and dismantle
10.	Brightness	≥8000cd/sqm
11.	Colors	16.7million
12.	Viewing angle	Horizontal 110°, Vertical 65°
13.	Viewing distance	16m -200m
14.	Soft Rubber Mask	To protect player and LED display itself .
15.	Scan frequency	≥600 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked. Also it is very easy to move and connect
16.	Video Frame Rate	≥150 fps
17.	Color temperature	6500°K to 9500°K adjustable
18.	Control method	synchronous control by PC
19.	Life span( half brightness)	≥100,000 hours
20.	Weight	50-65Kg/sqm
21.	IP rate	IP65 ( front side and rear side)
22.	Average power consumption	500W/sqm
23.	Peak power consumption	1000W/sqm
24.	Input voltage	AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25.	Operating Environment	Temperature:-25~+60 degrees Humidity:10%-95%RH
26.	Operating system	Windows 98/2000/ME/XP
27.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI
