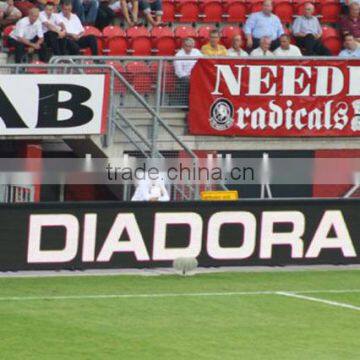

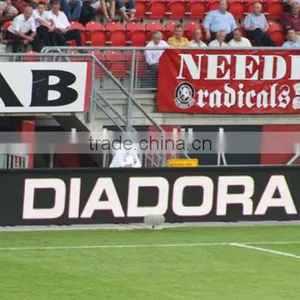

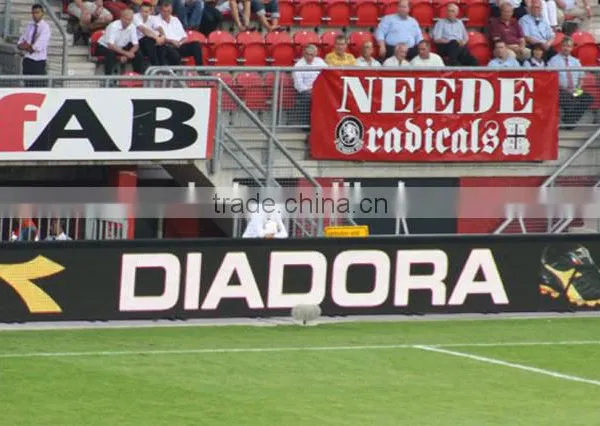

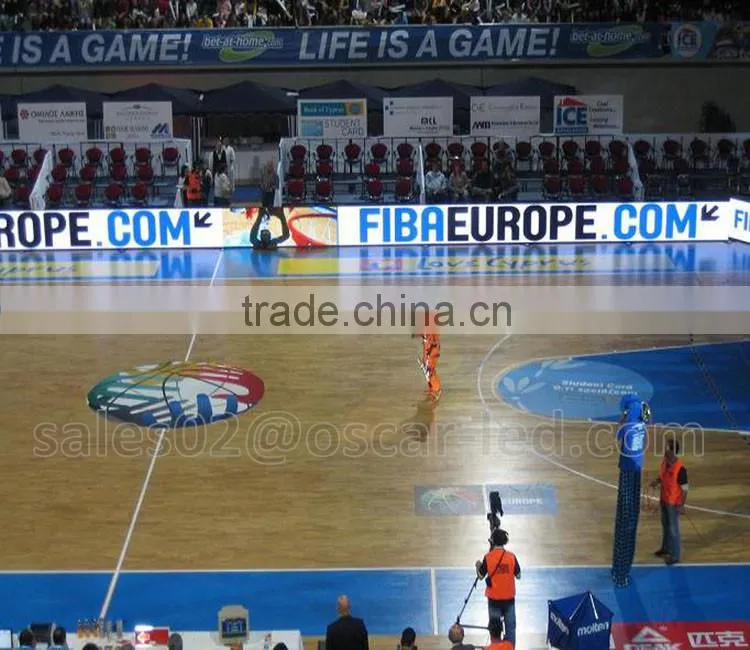

p10 smd football stadium perimeter advertising led screen display
Dear all friends,
Warmly welcome to browse our website.
This is Cindy Zhang.
Any questions, pls send inquiry to me.
We will try our best to help you!
| Led Display Screen | ||
| Pixel Information | Pixel Pitch | 10mm |
| Pixel Density | 10000 Pixels/m2 | |
| Pixel Configuration | SMD 3 IN 1 | |
| LED Wavelength | Red: 615 nm - 635 nm | |
| Green: 520 nm - 535 nm | ||
| Blue: 465 nm - 475 nm | ||
| LED Module | Module Size(mm) | 320 (Width) × 160 (Height) |
| Module Resolution | 32 (Width) × 16 (Height) | |
| Cabinet | Cabinet Size(mm) | 640 (Width) ×640(Height) |
| Cabinet Resolution | 64 (Width) × 64 (Height) | |
| Total QYT Module Per Cabinet | 2 (Width) ×4(Height) | |
| Cabinet Weight | 40kg/m2 | |
| Cabinet Material | Aluminum or steel LED display screen cabinet | |
| Power | Input Voltage | 100-240V AC, 50/60Hz |
| Max Power Consumption | 750 Watt/m2 | |
| Avg. Power Consumption | 380 Watt/m2 | |
| Brightness | ≥6500cd/m2 | |
| Brightness Uniformity | Luminance Discrepancy < 5% | |
| Best Viewing Angle | Horizontal:140°,Vertical:70° | |
| Viewing Distance | 10 - 30 meters | |
| Ambint Conditions | Temperature Range | Working:-20deg. to +60deg |
| Operating Humidity | 10%90%RH | |
| Ingression Protection Grade | Front Side: IP65Back Side: IP54 | |
| Processing | Scanning Mode | 1/2 scanning |
| Refresh Frequency | 800-1500HZ, Adjustable(depends on control system) | |
| Signal Input | DVI, Composite Video for Live Video | |
| Supported Networking | Through LAN/WAN, RS 232/RS485 | |
| Controller | Linsn or Nova | |

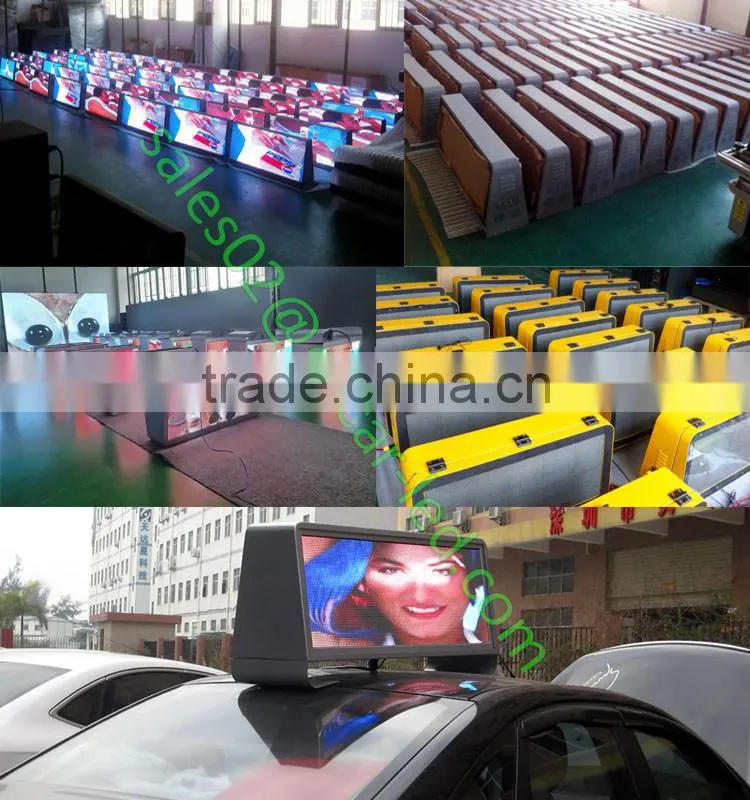

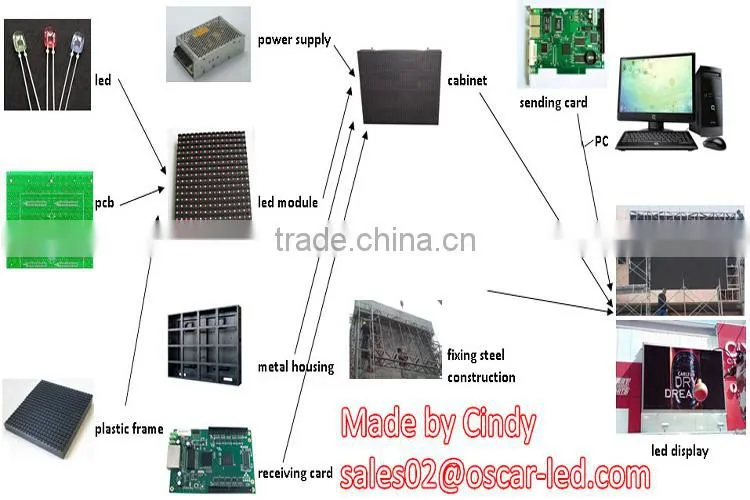

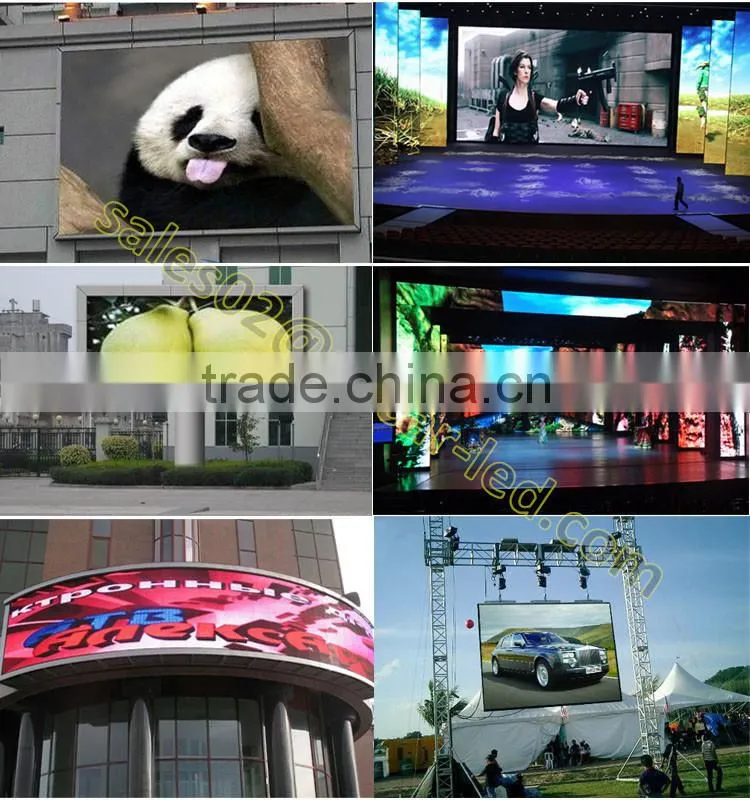

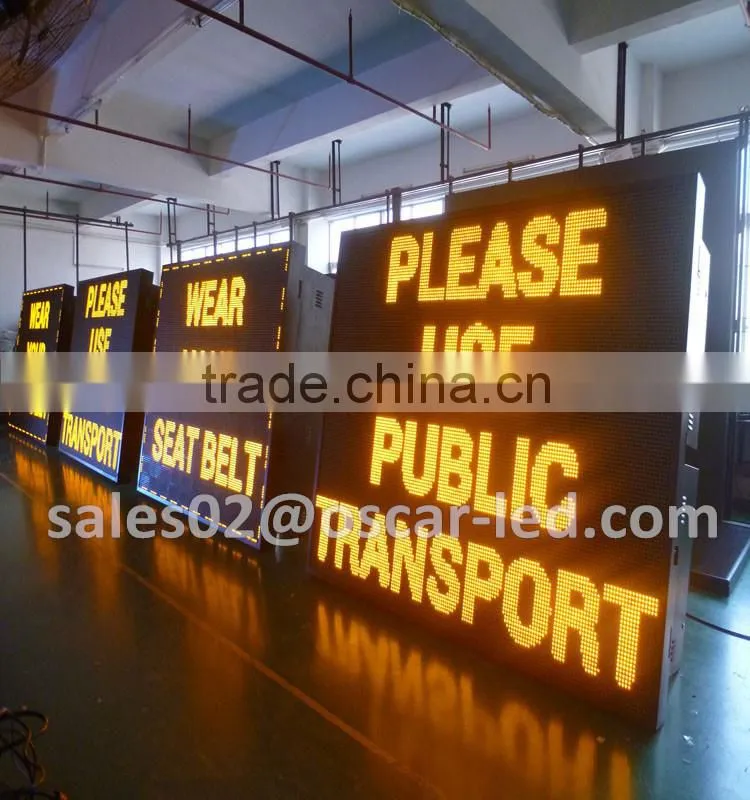

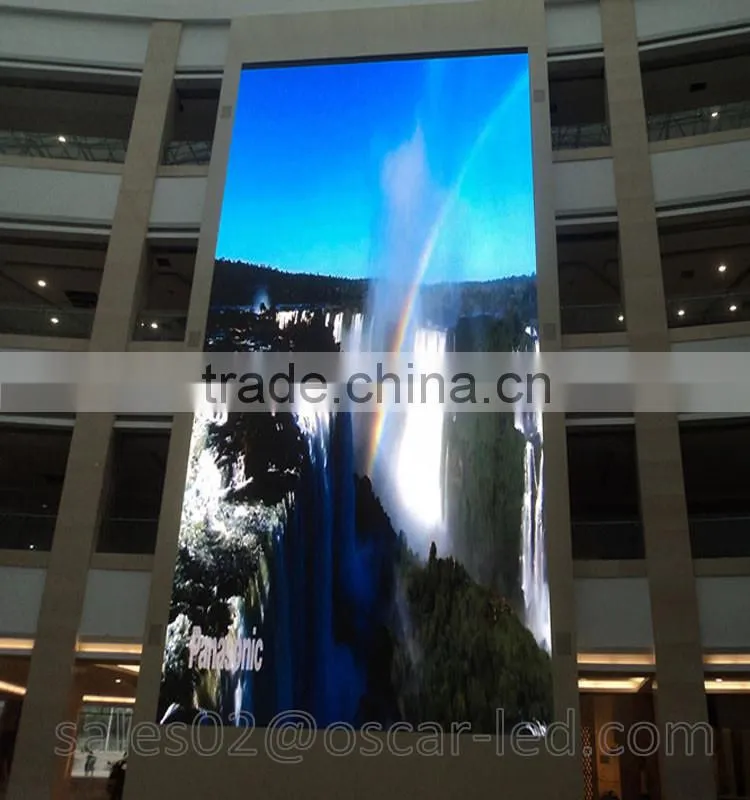

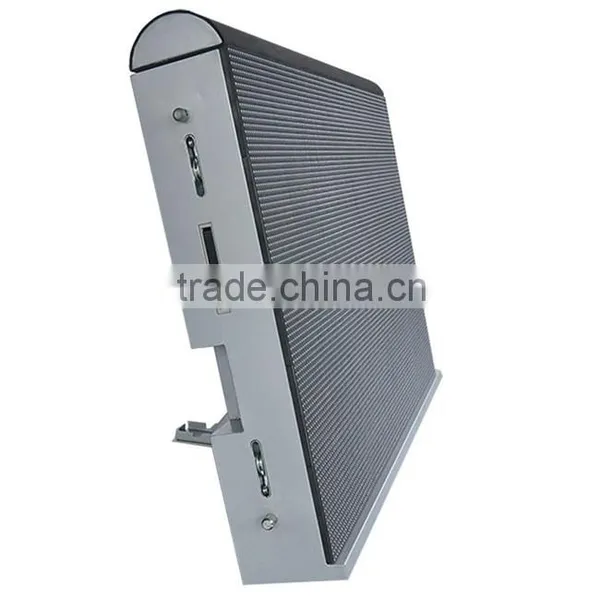

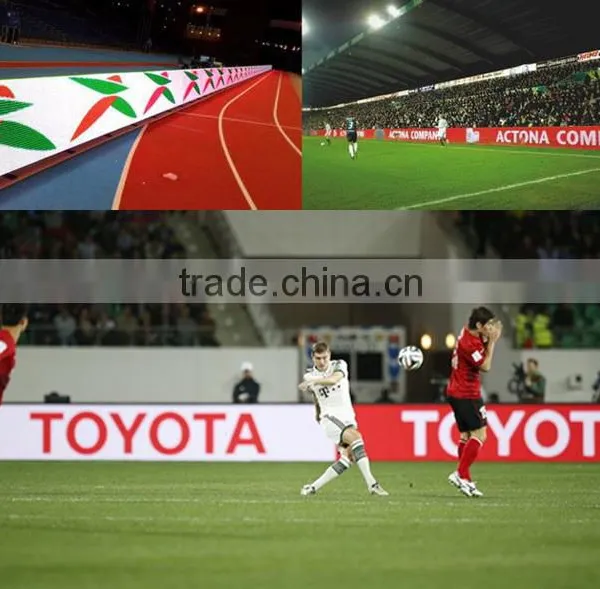

Products Details Images:
Packing:
LED modules: cartons
LED display:wooden case or flight case
Shipping:
By sea,by air,by DHL, by UPS, by TNT ect.
If you want to import some products to test quality,we can low the MOQ.
Warranty time and terms:
LED display brand name: accept to print your company logo
Voltage:220V/50HZ (If your local voltage is 110v/60HZ,please let us know)
1)2 years quality warranty, maintenance for whole life time.
2)1% spare parts for free.We will provide some modules and some meterials such as cable,LED lamp,IC ect. for free parts to repair if there is something wrong with it during this period.
3)Free training:You could send your staff who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair,or we take video about the operate and repair way to user; provide remote assistance and CAD drawing.
4) Technical support:
a.If you need our engineer to guide led display installation, we can arrange this.
b.Our engineer can help you to set up led display once you don't know how to operate led display.
Shenzhen Oscarled Co., Ltd. is located in Fuyong Street, Bao’an District, Shenzhen. Our factory is over 2000 square meters, with research, production, marketing and service together.
There are new automatic production line and product quality testing equipments in our working shop. Our main products include outdoor advertising LED display, mobile LED display, stage curtain LED display, sports LED display, curved LED display, indoor LED display, rental LED display, message LED display, etc.

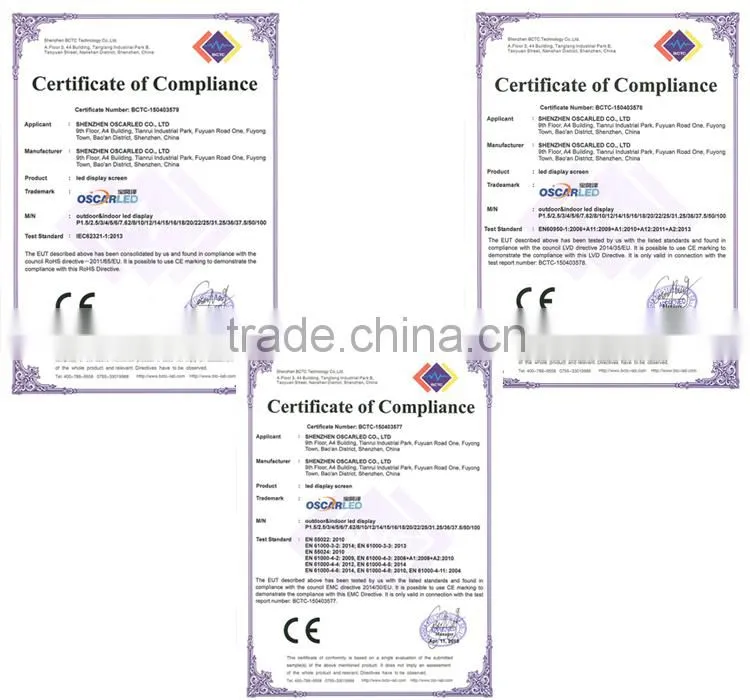

Many certificates like ISO9001, 3C, CE, FCC, ROHS have been achieved. At the same time, we put our efforts to the overseas marketing promotion and platform development, and have perfected the work of automatic DIP and white balance. Therefore, the products could be confirmed to be consistent with the standard of ISO and 8S.
Payment terms:
T/T, L/C, western union, moneygram, ect.
30% T/T in deposit balance 70% T/T before shipment.
Lead time: Below 50sqm, it will take about 2-3 weeks after receiving deposit.
Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs. My Skype: zxshengcindy
3. Well-trained and experienced staffs to answer all questions in fluent English.
4. Distributorship is offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Before we offer you best quotation, we'd to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Is it put any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor, hanging bar, flight case for package? Please advise it as well.
If you are interested in this product or our other products, please send inquiry to us (sales 02 at oscar-led dot com). You also can talk to me via skypezxshengcindy or whatsapp.
Have a nice day!
