0.2mm Flat Nichrome Wire Cr20Ni80

Name: 0.2mm Flat Nichrome Wire Cr20Ni80
Brand: Chonray
Availability: InStock

FOB Price

US$ 8 - 35 / Kilogram

30 Kilograms(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Chonray
Model Number	Cr20Ni80	Type	Other, Bare, Nickel strip,wire/ribbon/bar.etc
Application	Other, Heating, making electric heating elements	Conductor Material	Other, Nickel Chrome
Conductor Type	Solid	Insulation Material	Other, Not insulated

Product Description

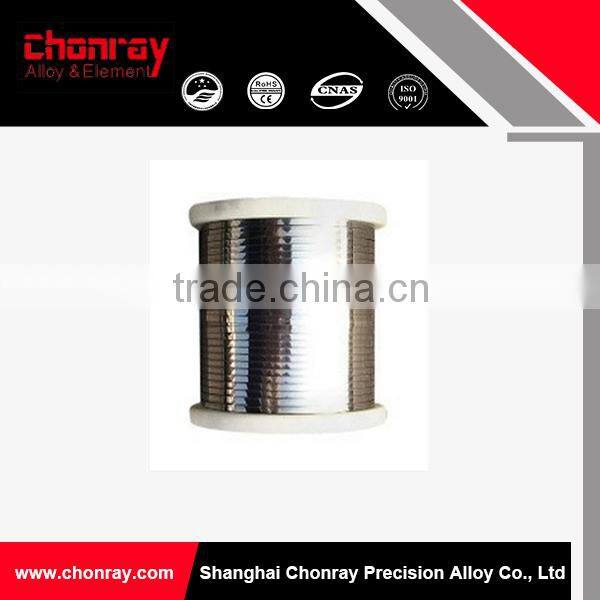

1.The picture of 0.2mm flat nichrome wire Cr20Ni80

0.2mm flat nichrome wire Cr20Ni80 is characterized by high resistivity, stable mechanical properties. Nichrome alloys have higher elongation, better ductility and weldability.

2. Characteristics:

1) The highest working temperature up to 1200 degree.

2) Higher elongation

3) More stable mechanical properties

4) Better ductility and weldability.

3. Applications

0.2mm flat nichrome wire Cr20Ni80 is widely used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

4. Main grades and properties

Type		Cr20Ni80	Cr15Ni60	Cr30Ni70	Cr20Ni35	Cr20Ni30
		Cr20Ni80	Cr15Ni60	Cr30Ni70	Cr20Ni35	Cr20Ni30
Main chemical composition	Ni	Rest	55.0~61.0	Rest	34.0~37.0	30.0~34.0
	Cr	20.0~23.0	15.0~18.0	28.0~31.0	18.0~21.0	18.0~21.0
	Fe	≤1	Rest	≤1	Rest	Rest
Maximal Temperature(℃)		1200	1150	1250	1100	1100
Resistance Temperature correction coefficient.(CT)		1.09±0.05	1.11±0.05	1.18±0.05	1.04±0.05	1.06±0.05
Melting point (℃)		1400	1390	1380	1390	1390
Resistivityρ20℃(10-6Ω.m)	800℃	1.008	1.078	1.028	1.188	1.173
	1000℃	1.014	1.095	1.033	1.219	1.201
	1200℃	1.025		1.043
Fast life value	Tem.(℃)	1175	1100	1200	1050	1050
Fast life value	hour(h)	≥110	≥100	≥110	≥100	≥100
Specific gravity(g/cm3)		8.40	8.2	8.1	7.90	7.90
Elongation(%)		≥25	≥25	≥20	≥20	≥20
Thermal(kj/m.h.℃)		60.3	45.2	45.2	43.8	43.8
Specific heat(20℃)j/g.℃		0.440	0.494	0.461	0.500	0.500
Extend strength(20~1000℃)α*10-6℃		18.0	17.0	17.1	19.0	19.0
Tensile strength(kg/mm2)		>85	>85	>85	>85	>85
Repeatedly bending(F/R)		>12	>12	>12	>12	>12
Microstructure		Austenitic	Austenitic	Austenitic	Austenitic	Austenitic

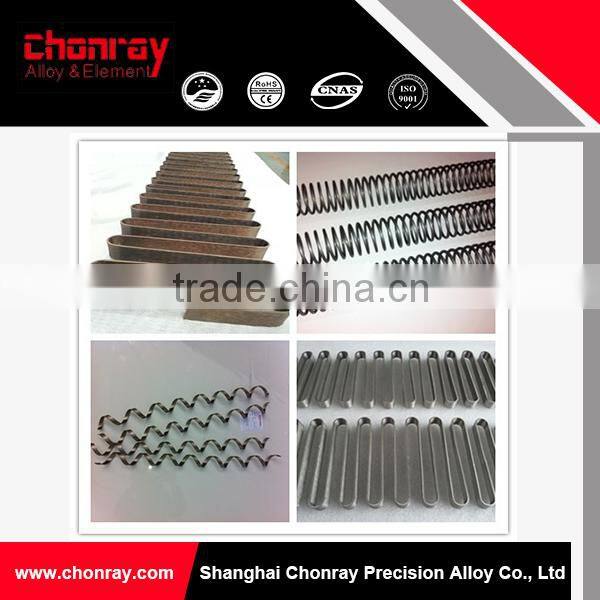

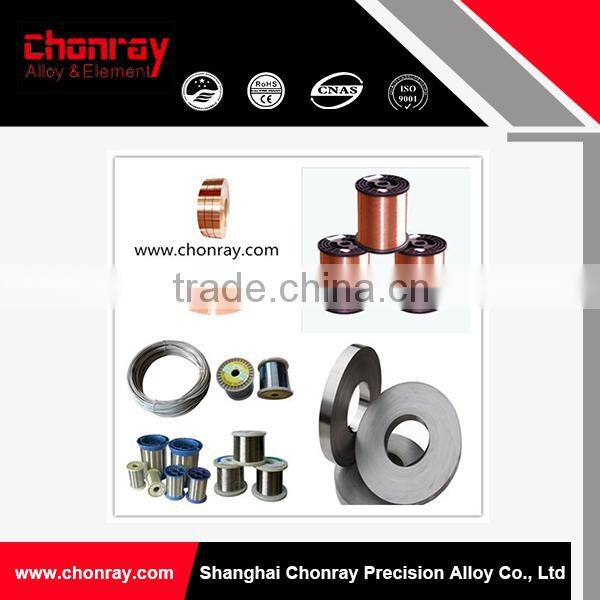

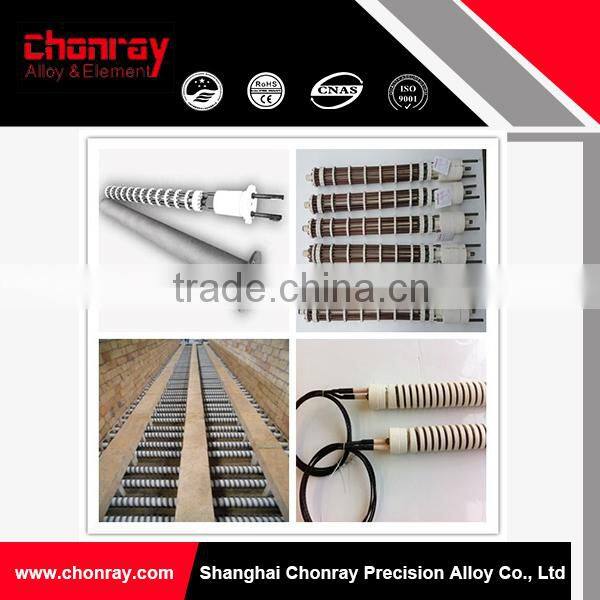

5. More products for you to choose.

Company Information

Shanghai Chonray Precision Alloy Co.,Ltd was founded in Year 2000, comprised of two major business sectors: Electric heating elements for industrial furnaces & special alloys. We have a manufacturing base in Shanghai , specialized in electric heating elements for industrial furnaces.The other manufacturing base in Jiangsu Province is specialized in search and production of special alloys, including high resistance alloys, high-temperature alloys, corrosion resistant alloys, precision alloys, welding wires and so on. Based on 15 years experience of electric heating elements and 23 years experience of special alloys, Chonray has established long-term and strategic cooperation with many well-known companies abroad and at home.

Strictly implementing the quality management system ISO9001: 2008 and environment management system ISO14001, Chonray ensures the quality control with the solid technical force and advanced testing and analysis equipment .Our products are widely used in various fields, such as automotive industry, glass machinery, metallurgy, petrochemical industry, nuclear power and so on.

Guided by the philosophy of being professional, ethical and lawful ,environmental and social responsible, Chonray aims to provide best quality electric heating elements for industrial furnace and specialty alloys to customers worldwide. Chonray professional team is fully qualified to satisfy your sales, engineering and logistics requirements. We warmly welcome customers to visit our company.

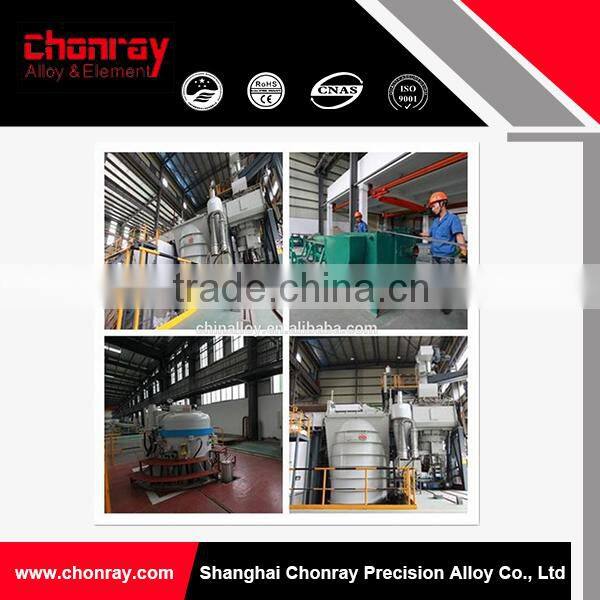

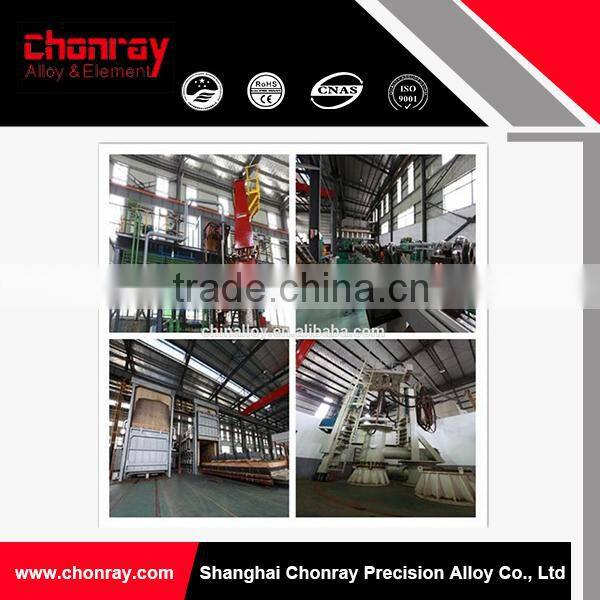

Production line

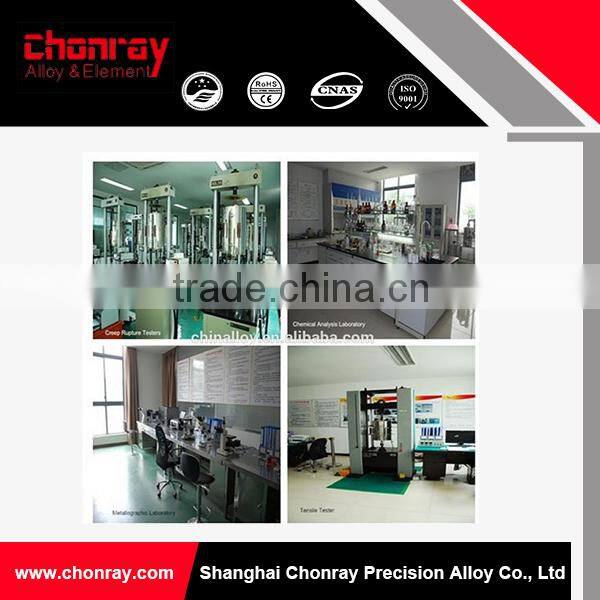

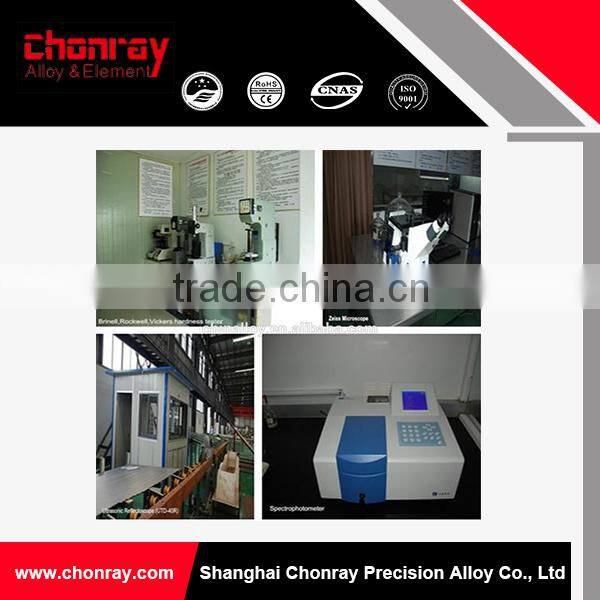

Testing Equipment

Certification

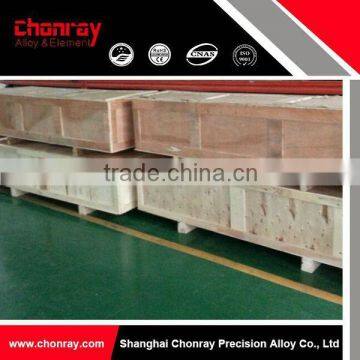

Packing picture:

Our market

Our advantages and services

a. Our advantage

We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.

We can provide all kinds of electric heating alloy material and elements, including customized products.

We can provide a complete solution for you.

OEM service can be provided.

b. Technical services we can provide:

Product selection

Process optimization

New product development

Contact information:

FAQ

Q: Are you a factory or trading company?

A: We are a factory.

Q: Are you products customized?

A: Yes, the products in the website are only the common types or the precious types from other

customers we can supply the new products according to your requirements or drawings.

Q: How can I make an order?

A: Send us the inquiry or chat with us if you have any questions before order, we will reply you ASAP we will issue the PI according to your specific requirement. The goods will be sent out to you upon

getting full payment.

Q: Can I place a sample order?

A: Of course, sample order is welcome for checking product functionality and quality. There is no MOQ requirement for sample order.

Q: Is sample shipping for sample free?

A: No, the shipment fee needs to be paid by buyers, and it is determined by weight and shipment

method.
