Resistive/IR/SAW Touch 17" Open Frame Monitor Touch Screen

Resistive/IR/SAW Touch 17" Open Frame Monitor Touch Screen photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 17"
Type:
Resistive
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Screen Size Other, 17"
Type Resistive
Interface Type D-Sub, DVI, Serial, USB
Resolution 1280 x 1024
Brand Name CARAV
Model Number OF1700
Place of Origin Guangdong, China

Specifications

17inch open frame touch monitor
1.Good and Stable quality;
2.VGA DVI port;
3.USB/RS232 touch;
4.Logo printing is ok

   17Inch saw touch touchscreen monitor



Specification:



Screen

17 inches (4:3 diagonal)

resolution

1280(H)×1024(V) pixel

Input interface

1 VGA video input,1 video input

video input format

analogue RGB signal

TV system

PAL/ NTSC/SECAM wide application range

touch function connector

USB (RS232 optional)

Operating system

WIN9X,2000,ME,CE/UNIX WIN9X,2K,XP,CE,UNIX

Power consumption

<30W Typ



Working Voltage





DC11V-15V

  Contrast Ratio

450:1



Response time



12ms



OSD



remote control OSD



Brightness



400 cd/m2



Viewing Angle



170-160



Working temperature



-20°C-60°C



Storage temperature







-30°C-70°C







IR/FM frequency





FM—88.9MHZ; IR—2.3MHZ/2.8MHZ






accessories

 1pcs LCD Monitor-1PCS
1pcs Stand Shelf-1PCS
1pcs VGA Cable
1pcs Instruction Manual
1pcs AC/DC Power
Some Screw for Fixing the Shelf







More pictures for your reference:

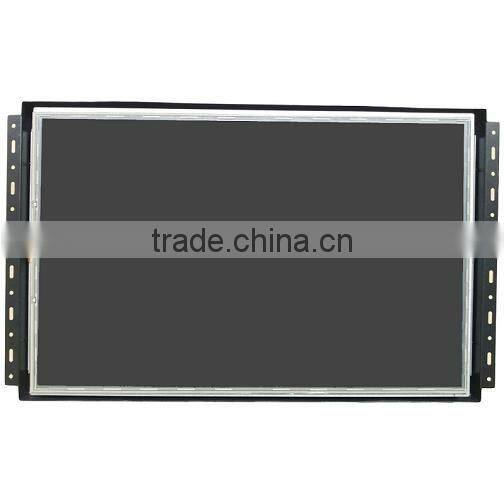

Front side picture:

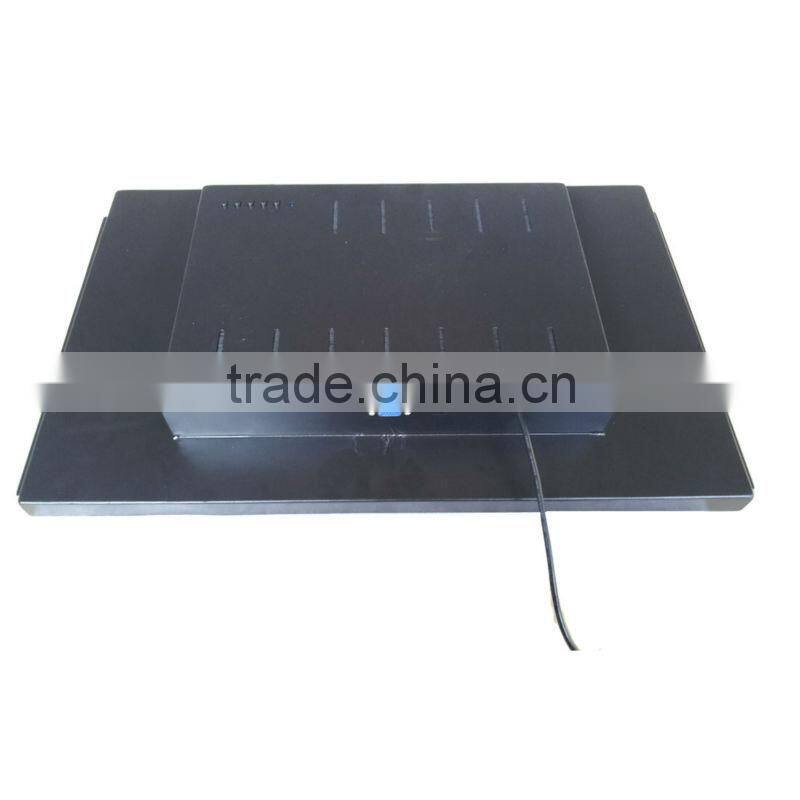

Back side picture:

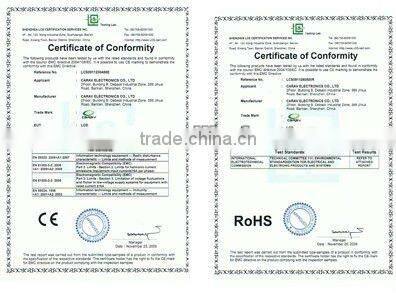

CE&RoHS is approval:

















About us:





We are 5 years professional car products manufacturer.
We can give you full technical support and good after-sale service
We could offer the best competitive price
We could supply unique items
Our products have certificates like CE, FCC and RoHS etc, also LSCD which is needed in European countries.

Our company has strong ability in ODM project. We have good and successful experiences of working with the famous brand companies overseas.

We always adhere to the guiding principle of customer satisfaction to meet different market demands





Open frame Touch Screen LCDs





We offer full range of Open Frame LCD monitor which ideal and costsensitive for Point of Sale, interactive information Kiosks,Casino, Video Game consoles, hospital and industrialapplications. Our Open Frame LCD monitor integrated with a LCD panel and AD controller board kit onto a metal chassis and is sold as a finished product. In addition video interfaces are universal.eg. Analogue RGB,composite video, DVI,Svedio ect. In addition, our products are also have compliance marks such as CE, RoHS the products can be used just it were a industrial monitor.







These open frame LCD monitors can incorporate with touch screens so that they can be used as touch screen open frame monitors.Our goal is to supply the appropriate touch technology on high-quality displays with additional customization to meet the exact requirements of customers.







Our open frame LCD monitor is designed for easy integration into industrial machinery and kiosks.







The display features a high resolution panel with wide viewing angles and high brightness display.







Multi-Touch







Multi-touch LCD monitors are perfect for retail, hospitality, healthcare and digital signage applications requiring gesture support specifically designed into Microsoft's latest Windows® 8 operating system.







Good news:







Now the price for our touch monitors is cheaper than before, it is a good chance for you to order from us!











In fact, we can also supply 12"15"17",19" and 22" touch screen open framemonitors,Resistive,SAW and IR touch all available, welcome your inquiry!
