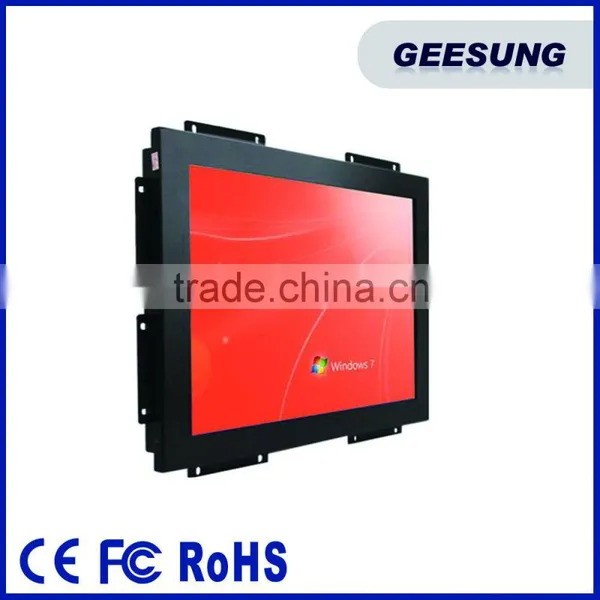

Capacitive Touch Open Frame Monitor 17 Inch 1 Year Warranty

US$ 180 - 240 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

CPT-1709R

Shenzhen Carav Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Or HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number CPT-1709R

Type TFT

Application Indoor

Panel Size 17 Inch

Max Resolution 1280*1024

Viewing Angle 170 /160 (H/V)

Pixel Pitch 0.294(H)X0.294(V)

Color 16.7M colors(RGB 6-bits+HiFRC data)

Contrast Ratio 1000:1(Typ.)

Brightness 450cd/m2

Response Time 5ms

Input Voltage AC100~240V 50 /60 HZ

Capacitive Touch Open Frame Monitor 17 Inch 1 Year Warranty

Product Description

1.17 Inch Open Frame Monitor

2.Interface:VGA+USB+DVI,HDMI option

3.Frame and framless option

4.450cd/m2 for indoor use,1000cd/m2 for outdoor use.

5.Non touch/Resistive touch/Capacitive/Saw Touch available

Name	Capacitive Touch Open Frame Monitor 17 Inch 1 Year Warranty
Resolution	1280*1024
Active Area	376.32(h)X301.06(v)mm
Pixel Pitch	0.294(H)X0.294(V)
Pixel Format	1280 horiz.By1024 vert. Pixels RGB stripe arrangement
Color depth	16.7M colors(RGB 6-bits+HiFRC data)
Contrast Ratio(typ)	800:1
Surface Luminance of White	450cd/m2
Back Light	LED
Interface	Dual Channel Lvds
Response Time	5ms
LAMP life Time	30,000hrs(min)
Power Consumption	35.3[W](Typ.)
Case and type	Metal case ,Open frame design

Item	Description
CPU	Allwinner A10 1.5
OS	Android 4.0.4
Ethernet	RJ45
Storage Card	SD (up to 32GB)
USB port	USB2.0X3
Power	12V DC
Video Out	HDMI,VGA
Audio out	HDMI
External Storage Support	USB Memory Stick/SATA external HDD
IR remote control	With IR remote control
Webcam	Built in WEBCAM

Item	Description
Support	Image	JPEG,BMP,PNG
	Audio	MPEG audio,Windows Media Audio,WAV audio,OGG Audio,FLAC audio,AAC audio
	Video	MPEG-1/2,MPEG-4,Divx,Real Media,H.264,Sorenson Spark(Flash Video) 010-9031-2484
