Specifications
TFT-LCD Monitor Open Frame 12inch touch screen monitor1.USB or RS232 interface for touch
2.Logo printing is ok
TFT-LCD Monitor Open Frame 12inch touch screen monitor
Specification:
Screen |
12 inches (4:3 diagonal) |
resolution |
800(H)×600(V) pixel |
Input interface |
1 VGA video input,1 video input |
video input format |
analogue RGB signal |
TV system |
PAL/ NTSC/SECAM wide application range |
touch function connector |
USB (RS232 optional) |
Operating system |
WIN9X,2000,ME,CE/UNIX WIN9X,2K,XP,CE,UNIX |
Power consumption |
<40W |
Working Voltage |
DC 11V-15V |
Pixel pitch |
0.285 mm |
Response time |
10.4ms |
OSD |
remote control OSD |
Brightness |
400 cd/m2 |
Wide Viewing Angle |
170° /160° (Horizontal/Vertical) |
Working temperature |
0°C-50°C |
Storage temperature |
-20°C-70°C |
IR/FM frequency |
FM—88.9MHZ; IR—2.3MHZ/2.8MHZ |
|
accessories |
1pcs LCD Monitor-1PCS |

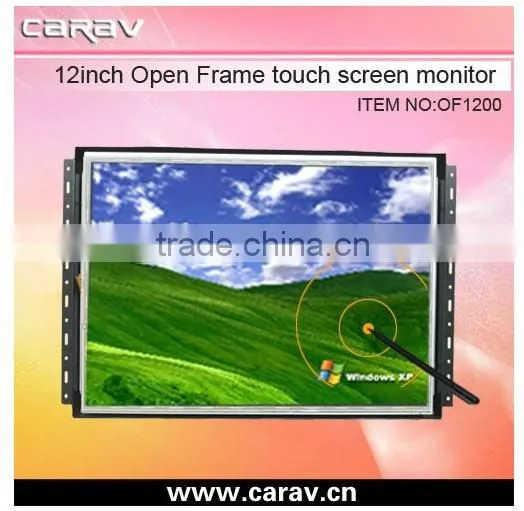

Front side picture:

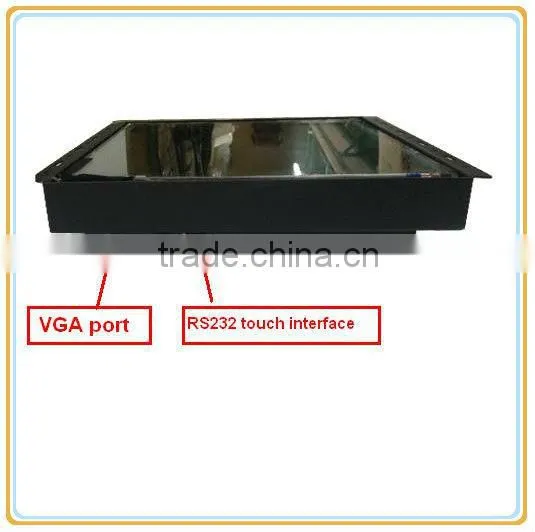

Back side picture:
SAW touch and RS232 touch interface optional:
One year warranty:
Certificate:
About us:
We are 5 years professional car products manufacturer.
We can give you full technical support and good after-sale service
We could offer the best competitive price
We could supply unique items
Our products have certificates like CE, FCC and RoHS etc, also LSCD which is needed in European countries.
Our company has strong ability in ODM project. We have good and successful experiences of working with the famous brand companies overseas.
We always adhere to the guiding principle of customer satisfaction to meet different market demands
We will take part in the HK fair every year:
Multi-Touch
Multi-touch LCD monitors are perfect for retail, hospitality, healthcare and digital signage applications requiring gesture support specifically designed into Microsoft's latest Windows® 8 operating system.
Good news:
Now the price for our touch monitors is cheaper than before, it is a good chance for you to order from us!
In fact, we can also supply 12", 15", 17" and 22" touch screen open frame monitors.
Resistive, SAW and IR touch are all available.
Any inquiry will be highly appreciated, and we will provide you the best quality and services with the best price.
