Specifications

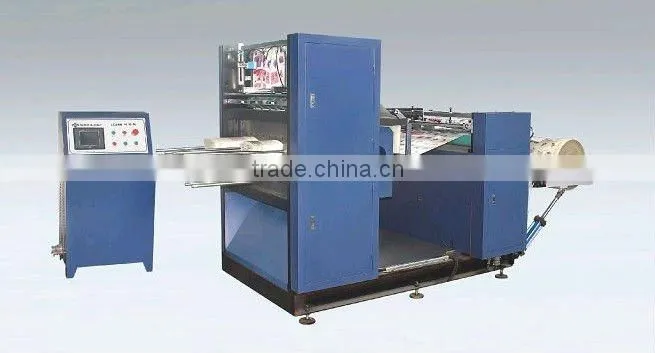

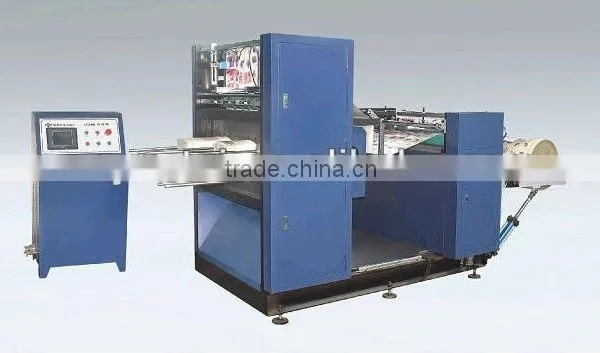

Ruian Paper die cutting machine(YT-L900 Model)
1. Fully automatic
2. Roll paper cutting
3.PLC system control
Ruian Paper die cutting machine
YT-L900 Die Cutting Machine adopts the technology cutting of automatic punching. It can make the slitting, die cutting and clearing the waste of paper done together. So the machine has less steps than those with the traditional cutting technology, which can eliminate some loss of the raw material in cutting, and can improve the rate of the utilization of raw materials and finished goods effectively. The machine removes the waste clearing step in traditional procedures and cuts the pattern paper directly which are in good quality and looks nice. So it is a good machine which can not only largely reduce the consumption and manpower of worker, but also reduce worker’s labor intensity. It is ideal equipment for cutting many kinds of paper container, such as disposable paper bowl, paper cup, paper meal, paper box, lable paper, etc. it adopts professional high definition gas feeding paper structure, distinctive electronic protector and automatic feeding paper and collecting paper orderly. It is controlled by PLC, which makes the whole working procedure are automatic. And through the PLC control, the worker can get the whole data if the working machine, such as the speed, the power of motor, the amount of the pattern paper and so on. If u want to produce different pattern paper, what the worker can do is that changing the parameters on the interface of PLC, what is more, the important parts of machine are imported from Japan and Germany. From the above, this machine can run stably, locate correctly and operate safely, reliably and easily.

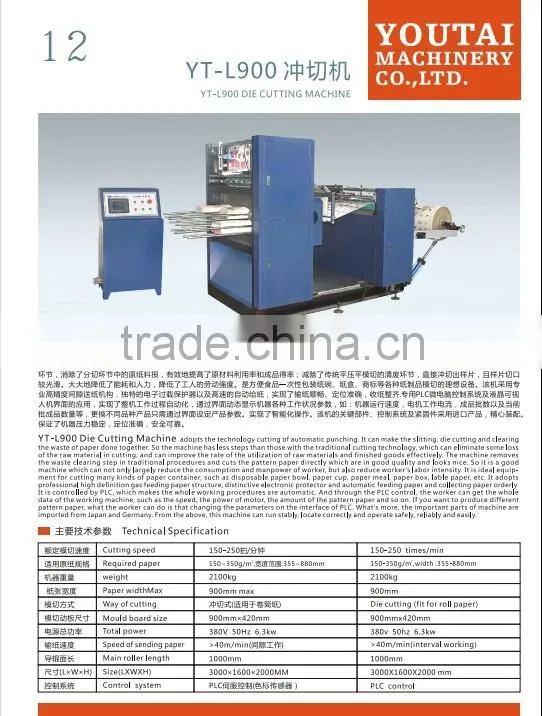

TECHNICAL DATA SHEET
Cutting speed |
150-250times/min |
Required paper |
150-350g/sm, width:355-880mm |
Weight |
2100kg |
Paper Max width |
900mm |
Way of cutting |
Roll paper |
Mould board size |
900*420mm |
Total power |
380v 50hz 6.3kw |
Speed of sending paper |
>40m/min(interval working) |
Main roller length |
1000mm |
Size (L*W*H) |
3000*1600*2000mm |
Control system |
PLC control |
