Help CenterCNC-625 Digital Controlled Spring Making Machine
Related Products
-
CNC-625A New Product of Spring Forming Machine in 2014NegotiableMOQ: 1 Set -
CNC-650 5 Axis CNC Spring Forming Machine in WNJNegotiableMOQ: 1 Set
-
CNC-625 ISO & BV Professional Certificate of CNC Spring Forming Making MachineNegotiableMOQ: 1 Set
-
New Design Calmess Wire Rotary Spring Coiling Machine in 2014NegotiableMOQ: 1 Set
-
New Design of Calmess Spring Making MachineUS$ 59,999 - 61,300MOQ: 1 Set
1.One-year warranty.
2. Permanent technical services .
3. A week of training include free room and board.
1. Wooden case packing
2.FOB Ningbo or Shanghai port.
1) Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan

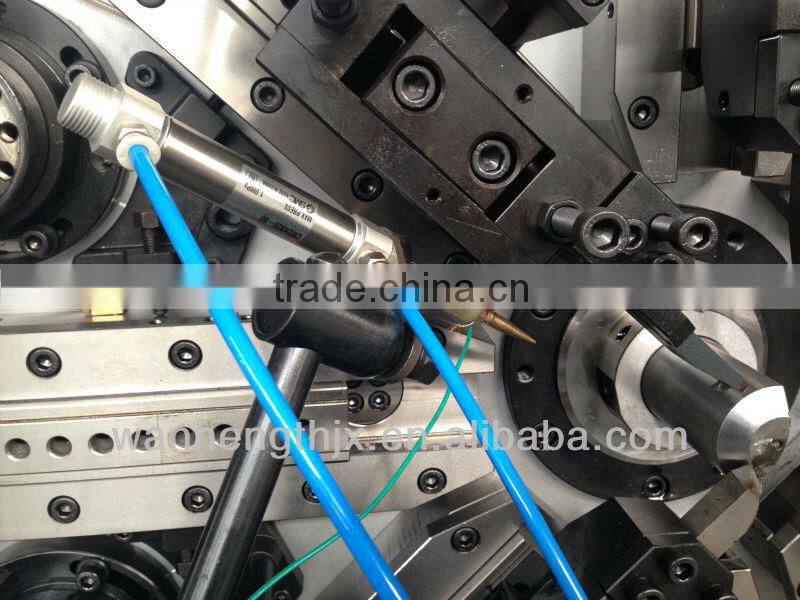

2) A precious inspection tracer device is installed; it will stop working automatically when the unqualified product is found
3) The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen
4) It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc.
FLOWCHART:

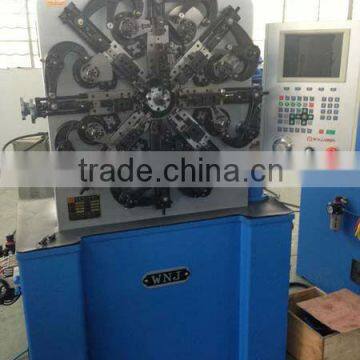

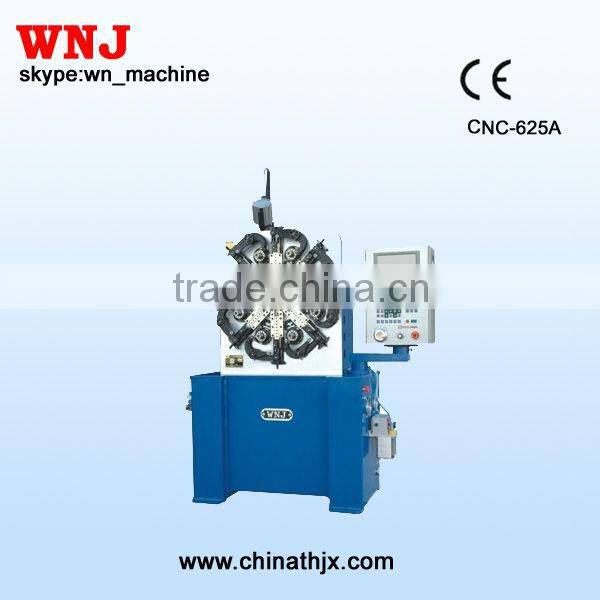

MACHINE:

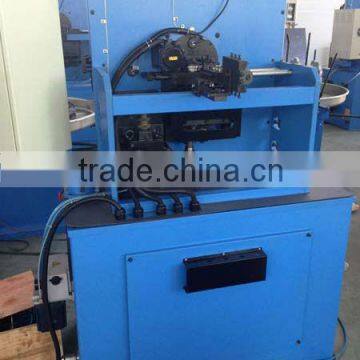

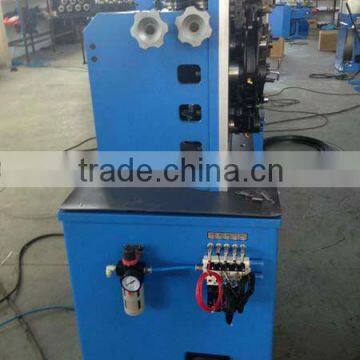

OPTION:

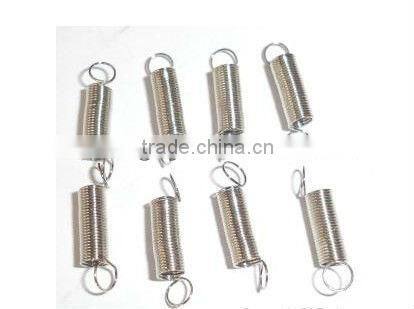

SPRING SAMPLES:
Main Technical Parameters:
| Style | CNC-625A/625B |
|
Wire diameter of coiled material (mm) |
Φ0.3~Φ2.5 |
|
Maximum machining diameter (mm) |
Φ50 |
| Instruction value of wire feed |
±0.01~±9999.99mm |
| Instruction value of cam | ±0.1°~±359.9° |
| Savable system | 99groups |
| Motor power (kw) | X-Y axis 2.7 Z axis 1.0 |
| Weight (kg) | 800 |
| Power | Three phase 380V.AC.50HZ |

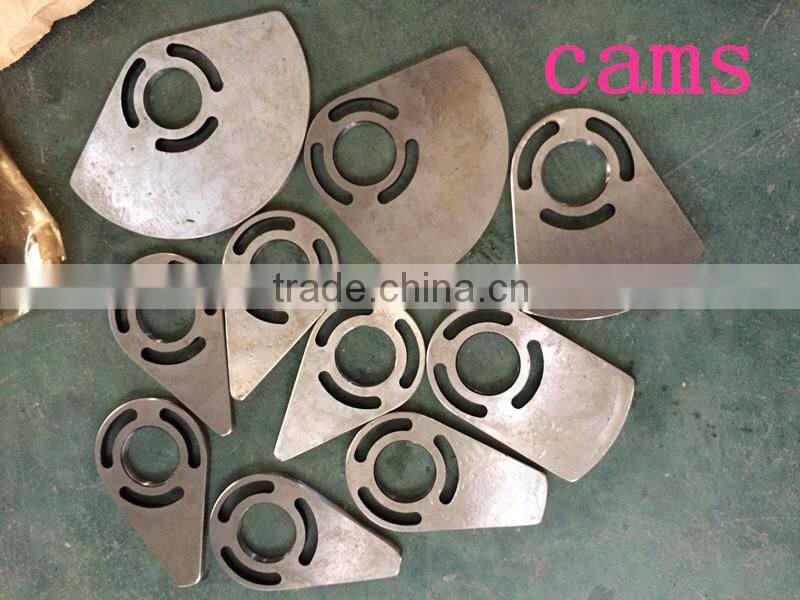

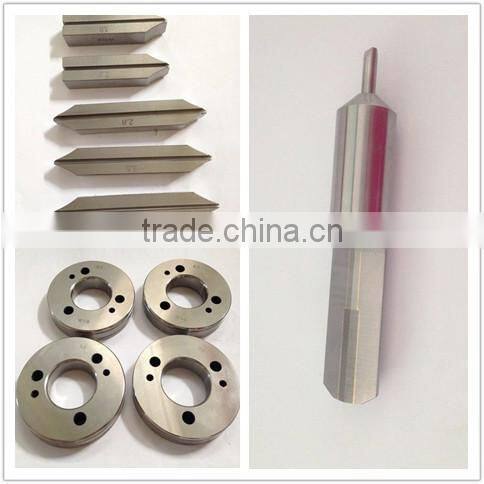

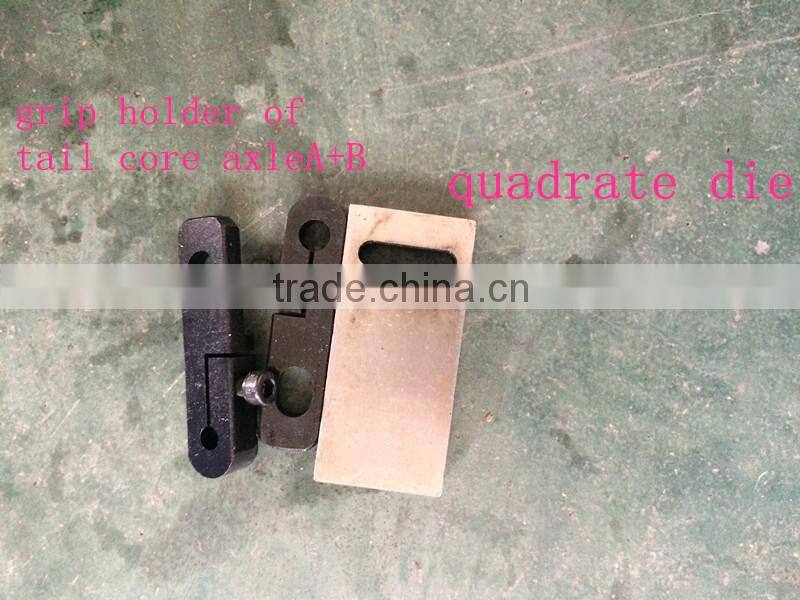

Part of standard tools with machine
From 0.3mm to 2.5mm, can be substitute each size with same quantity:
1.wire Wire guide plate
2.wire feeding roller
re axle: can be longer up to 200-250mm
OUR HONOR:
