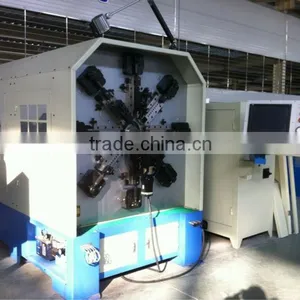

New Design of Calmess Spring Making Machine
US$ 59,999 - 61,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WNJ
Model Number:
CNC1225/CNC1235/CNC1250
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Style Calmess Wire Forming Machine With RotaryNegotiableMOQ: 1 Set -
WNJ Spring Wire Coiling MachineNegotiableMOQ: 1 Set
-
CNC-625 2.5mm Hot CNC Torsion Spring Machine With Japan Sanyo MotorNegotiableMOQ: 1 Set
-
WNJ- Chinese Spring Machine Manufacturer Leader CNC-625Z Spring MachineryUS$ 1 - 100,000,000MOQ: 1 Set
-
Integrity Enterprises Metal CNC Spring Maker Machine MakingNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
WNJ
Model Number
CNC1225/CNC1235/CNC1250
After-sales Service Provided
Engineers available to service machinery overseas
| Item Name | New Design of Calmess Spring Making Machine |

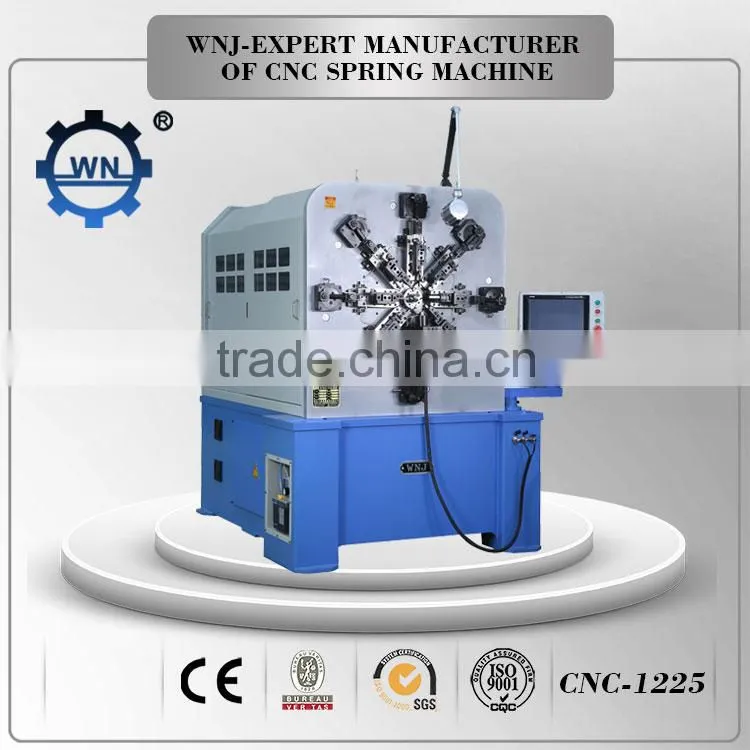

| Style | CNC-1225 |
| Color | Grey/Blue |
| Diameter of The Steel Wire(mm) | Φ0.3~Φ2.5 |
| Total Power (KW) | 16 |
| Number of Axes | 12 axis |
Number of The Wire Feed Wheel |
2 pairs |
| Servo Motor of Wire Feed | 2.7KW |
| Servo Motor of Rotary Wire | 3.8KW |
| Servo Motor of Rotary Mandrel | 1KW |
| Servo Motor of Curved Shaft | 0.4KW |
| Servo Motor of Knife Rest of Slide | 1KW*8 |
| Main M,achine(L*W*H) | 1600*1000*1600 |
| Net Weight of Machine (KG) | 1500 |
| Power | Three phase 380V.AC.50HZ |
PRODUCT PARAMETERS
- This machine is for camdesign,set up spring with high speed and accuracy.And with stable good enough .
- Adopt Taiwan's computer control system an equipped with sevo motor imported from Japan.
- Wire feed with the function of rotary wire,so it is easy to adjust .
- Computer interface displayed in Chinese and English which makes the operation easy .

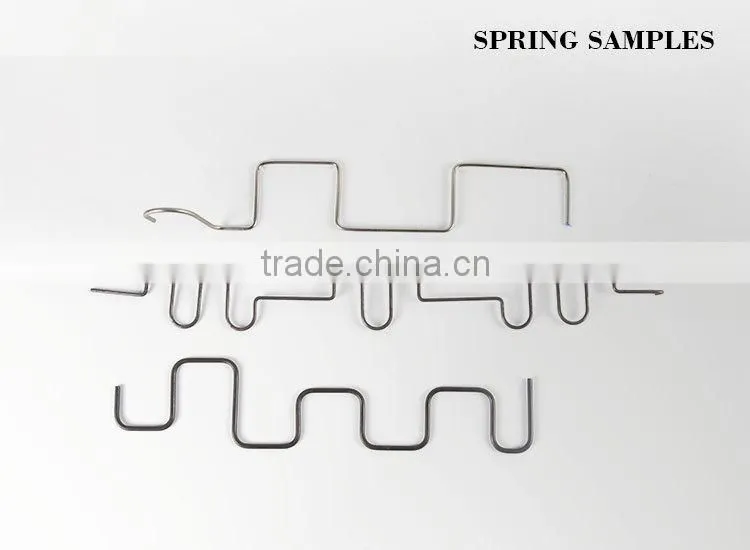

- It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring .
OUR SERVICE
- Two-years (computer ) &one-year (mechanical) warranty.
- Permanent technical service .
- One week free training with accommodation and food.
- Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS
COMPANY INFORMATION
CERTIFICATION
PARTNERS
AGENTS
FAQ
- What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
- Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
- How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
