Specifications
Using seals from Parker ,Japan and Korea,ensure the working ability and life span.Customerization (non-standard) available
Brief description of the product and advantage
Using seals from Parker ,Japan and Korea,ensure the working ability and life span.
Customerization (non-standard) available
Specifications
Parallel Style Air Gripper Cylinder
MHZ series Air Gripper Cylinder complete linear guide trial guarantee high strength and precision, variable built-in slot make it easily to mount sensor switch, different dusty cap materials are optional As to t he acting type we have double acting, single extend acting, single return acting etc. Normally it is with magnet. The maximum operating frequency is 180c.p.m. For its excellent quality, the cylinder widely used in industrial automation systems
Parallel Style Air Gripper Cylinder
Bore(mm) |
6 |
10 |
16 |
20 |
25 |
32 |
40 |
|
Working Medium |
Filtered compressed Air |
|||||||
Motion Pattern |
Double Action Type, Single Acting Type, |
|||||||
Max. Operating Pressure |
Double-acting Type |
0.15~0.7Mpa |
0.2~0.7Mpa |
0.1~0.7Mpa |
||||
Single-acting Type |
0.3~0.7Mpa |
0.35~0.7Mpa |
0.25~0.7Mpa |
|||||
Repeat accuracy(mm) |
±0.01 |
±0.02 |
||||||
Max operating frequency(c.p.m) |
180 |
60 |
||||||
Operating Temperature |
-10~60°C |
|||||||
Lubrication |
No-lube |
|||||||
Cylinder built-in magnet ring |
With(standard) |
|||||||
Joint Pipe Bore |
M3×0.5 |
M5×0.8 |
||||||

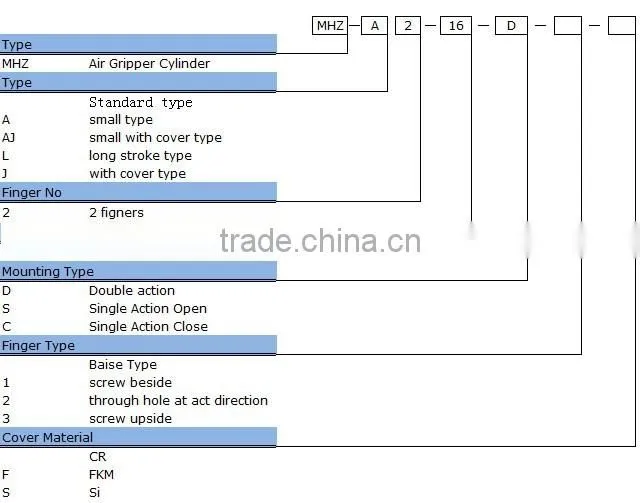

How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Ningbo Seaport
Delivery time: 10-30 days (Depend on your qty)
Sample: Available with freight collected
Using seals from Parker ,Japan and Korea,ensure the working ability of Air Cylinder and life span.
By virtue of years of accumulated experience in various industries customer,we can design and develop all types of non-standard cylinders according to different customers requirements.
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.

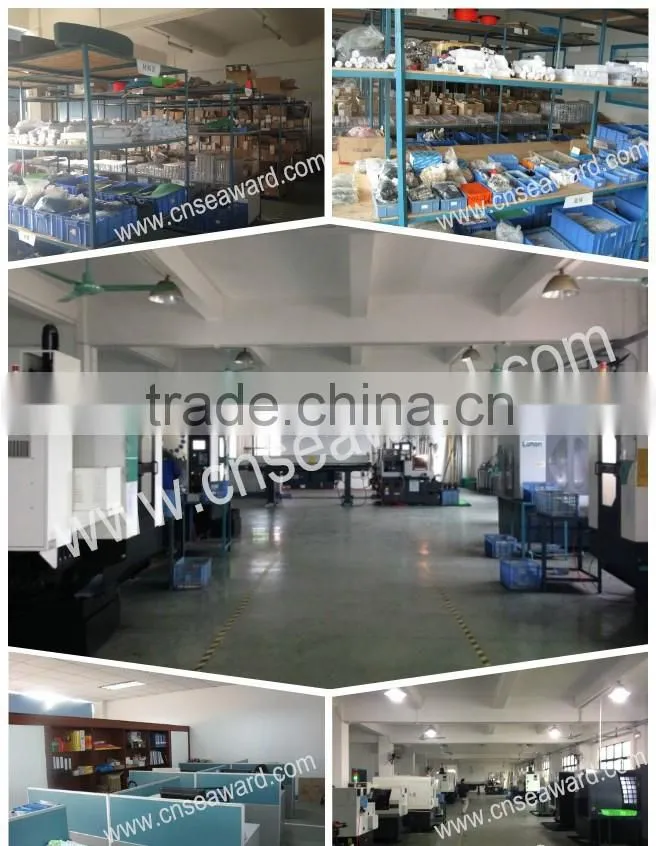

Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Customization is available.
