Help CenterRotary Table Rack Pinion Pneumatic Cylinder; Pneumatic Air Cylinder MSQ Series
Related Products
-
Tri Rod Cylinder; Pneumatic Air Cylinder MGP SeriesNegotiableMOQ: 1 -
Standard Pneumatic Cylinder ISO6431 DNC Series China ManufacturerNegotiableMOQ: 1
-
Standard Double Action Pneumatic Air Cylinder SU SeriesNegotiableMOQ: 1
-
Standard Double Action Pneumatic Air Cylinder SC SeriesNegotiableMOQ: 1
-
Stainless Steel Pneumatic Air Cylinder, MI SeriesNegotiableMOQ: 1
Specifications
Using seals from Parker ,Japan and Korea,ensure the working ability and life span.Customerization (non-standard) available
Brief description of the product and advantage
Using seals from Parker ,Japan and Korea,ensure the working ability and life span.
Customerization (non-standard) available
Specifications
Rotary Table/Rack & Pinion Style Cylinder
MSQ Series Rotary table, rack & pinion Cylinder is high precision balls used in bearing, vertical and horizontal precision are up to ±0.01mm.Rotatinal type is easy for installation. Rolling bearing design, load is 3 to 4 times larger than CRQ series. Rotation is smooth and accurate. Hollowed certer rods for wire or tube to go through, standard angle adjusting device for wider angle adjustment. With magnet ring for sensor switch application.
Rotary Table/Rack & Pinion Style Cylinder
Bore(mm) |
10 |
20 |
30 |
50 |
70 |
100 |
200 |
||
Motion Pattern |
Double action |
||||||||
Working Medium |
Filtered compressed Air (No lube) |
||||||||
Cushion Type |
Rubber bumper(standard)/Oil Pressure Shock Absorber(optional) |
||||||||
Angle Adjustable Range |
0~190° |
||||||||
Working Pressure Range |
With adjustable angle screw :0.1~1.0 Mpa With Shock Absorber:0.1~0.6 Mpa |
||||||||
Steady Swing Time Rang |
0.2~1.0s/90° |
0.2~1.5s/9° |
0.2~2.0s/9° |
0.2~2.5s/9° |
|||||
0.2~0.7s/90° |
0.2~1.0s/90 |
||||||||
Operating Temperature |
-10~60°C |
||||||||
Allowed Power |
With adjustable angle screw |
0.007J |
0.025J |
0.048J |
0.081J |
0.24J |
0.32J |
0.56J |
|
With Shock Absorber |
0.039J |
0.116J |
0.294J |
1.1J |
1.6J |
2.9J |
|||
Piston Diameter |
φ15 |
φ18 |
φ21 |
φ25 |
φ28 |
φ32 |
φ40 |
||
Port Size |
End ports |
M5*0.8 |
1/8” |
||||||
Side ports |
M5*0.8 |
||||||||

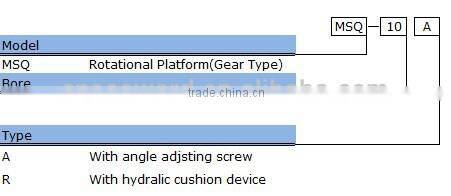

How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Ningbo Seaport
Delivery time: 10-30 days (Depend on your qty)
Sample: Available with freight collected
Using seals from Parker ,Japan and Korea,ensure the working ability of Air Cylinder and life span.
By virtue of years of accumulated experience in various industries customer,we can design and develop all types of non-standard cylinders according to different customers requirements.
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.
Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Customization is available.
