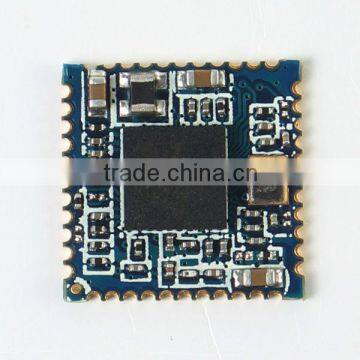

Help CenterSurveillance Camera 2.4GHz Wireless Realtek 8723BS Uart Bluetooth Module With Wifi Sdio
Related Products
-
802.11a/b/g/n Wireless Remote Control Video Baby Monitor Qualcomm AR1021 Atheros Usb Wifi ModuleNegotiableMOQ: 1000 Pieces -
802.11n 150mpbs Mini Usb Wireless Adapter With Ralink Rt3070 Chipset Usb 2.0 Wifi ModuleNegotiableMOQ: 1000 Pieces
-
Low Energy Bluetooth Module Realtek RTL8723BU Wifi Usb Camera Module Promotion ItemsNegotiableMOQ: 1000 Pieces
-
Wifi Transmitter Bluetooth Chip Rtl8723 Wifi Wireless ModuleUS$ 4.1 - 4.88MOQ: 100 Pieces
-
802.11a/b/g/n 5.8g Antenna Wifi Smart Home AR1021 Atheros ModuleNegotiableMOQ: 100 Pieces
Wifi Module Specification
Key Features
| Model | CP823 |
| Chip | Realtek RTL8723BS |
| Port | GSPI/SDIO |
| Antenna Gain | Need external antenna |
| Working Voltage | DC 3.3V ±0.2V |
| Dimension | 12mm*12mm*2mm |
| Bluetooth transmission protocol | Bluetooth V2.1+EDR /Bluetooth3.0/Bluetooth 4.0 |
| antenna gain | Need external antenna(can share with WiFi antenna) |
Specifications of WiFi:
Model |
CP823 |
Standards |
IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK |
Port |
SDIO/GSPI |
Frequency Range |
2.4~2.4835GHz |
Channel |
1-14(optional USA Norm, EN, Japanese Norm) |
Modulation Type |
802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) |
Transmission Rate |
802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: Max 150Mbps |
Receive Sensitivity |
Indoor up to 30m,outdoor up to 80m(Base on the environment) |
RF Rate |
16dBm(Maximum) |
Antenna Gain |
Need external antenna |
Spread-Spectrum Technique |
DSSS(direct sequence spread spectrum) |
Working Voltage |
DC 3.3V ±0.2V |
Dimension |
12mm*12mm*2mm |
Working Environment |
Working Temperature: -20℃ to 45℃ Storage Temperature: -40℃ to 70℃ operating humidity:10% to 90%RH noncondensing Storage Humidity: 5% to 90%RH noncondensing |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
Realtek RTL8723BS |
Specification of Bluetooth:
Model |
CP823 |
interface type |
UART(2G/3G calling need connect PCM port) |
Bluetooth transmission protocol |
Bluetooth V2.1+EDR /Bluetooth3.0/Bluetooth 4.0 |
frequency range |
2.402GHz - 2.480GHz |
working channel |
0-78 |
Modulation Type |
GFSK,DPSK |
transmission distance |
Indoor up to 10m,outdoor up to 20m(Base on the environment) |
RF Rate |
8dBm(Maximum) |
antenna gain |
Need external antenna(can share with WiFi antenna) |
spread-spectrum technique |
frequency hopping |
working voltage |
DC 3.3V ±0.2V |
Supported OS |
Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX/MAC OS |
Chip |
Realtek RTL8723BS |
Dimension
OEM/ODM
customization software
adjustabe hardware according to your mold
