150Mpbs wireless module iot Realtek RTL8711AF wifi module uart
1. Wireless Module iot Realtek RTL8711AF WIFI Module uart Introduction
CP830 wifi module uart,chipset Realtek RTL8711AF,
is a highly integrated module with low power 802.11n Wireless LAN(WLAN) network controller. It combines anARM-CM3(166MHz)MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF function. It also provides a bunch of configurable GPIOs which are configured as digital peripherals fordifferent applications and control usage.
CP830 integrates internal memories for complete WIFI protocol functions. The embedded memory configuration alsoprovides simple application developments.
22.25mm x 19mm x 1.6mm
Complete 802.11n solution for 2.4G band
150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
Standards Supported
802.11b/g/n compatible WLAN
802.11e QoS Enhancement(WMM)
802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services
WiFi Direct support
WiFi WPS support
Light Weight TCP/IP protocol
WLAN PHY Features
802.11n OFDM
One Transmit and one Receive path(1T1R)
20MHz and 40MHz bandwidth transmission
Short Guard Interval(400ns)
Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n
2. Realtek RTL8711AF Wifi Module uart Host Interface
◊ 2 x UART (max baud rate 4MHz)
◊ 3x I2C
◊ 1 x I2S
◊ 2 x PCM
◊ 2x SPI
◊ 1x SDIO Slave
◊ 4x PWM
◊ 1x ADC and 1x DAC
◊ 21 x GPIO

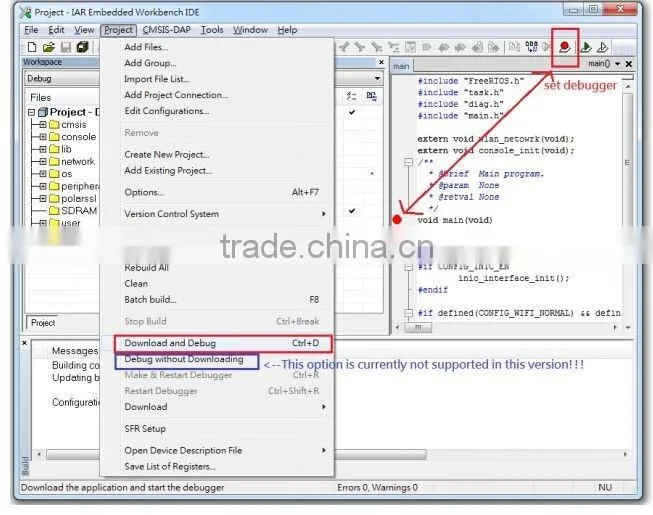

Build and Debug Environment - IAR
3. Realtek RTL8711AF Wifi Module uart General Specification
Model Name |
CP830 V1.0 |
Standard |
802.11b/g/n 2.4GHZ 1T1R |
Data Transfer Rate |
1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90.120and maximum of 150Mbps |
Modulation Method |
BPSK/QPSK/16-QAM/64-QAM |
Frequency Band |
2.4GHz ISM Band |
Spread Spectrum |
IEE802.11b:DSSS(Direct Sequence Spectrum) IEE802.11g/n:OFDM(Orthogonal Frequency Division Multiplexing) |
RF Output Power |
13±1dBm@11n ,14±dBm @11g,19±1dBm@11b |
Receiver Sensitivity |
11Mbps-80dbm@8%,54Mbps-70dBm@10%, 150Mbps-64dbm@10% |
Operation Range |
Up to 100 meters in open space |
Operating Temperature |
0~50℃ |
Storage Temperature |
-20℃~70℃ |
Operating Humidity |
10%~90% non-condensing |
Storage Humidity |
5%~90% non-condensing |
Dimensions |
22.3x19x2.5mm(LxWxH) |
IOT Wifi Module Spec
dimension: 22.3x19x2.5mm
OEM/ODM
customization software
adjustabe hardware according to your mold
