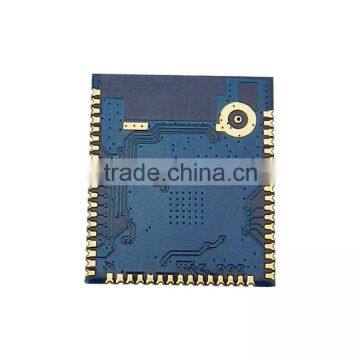

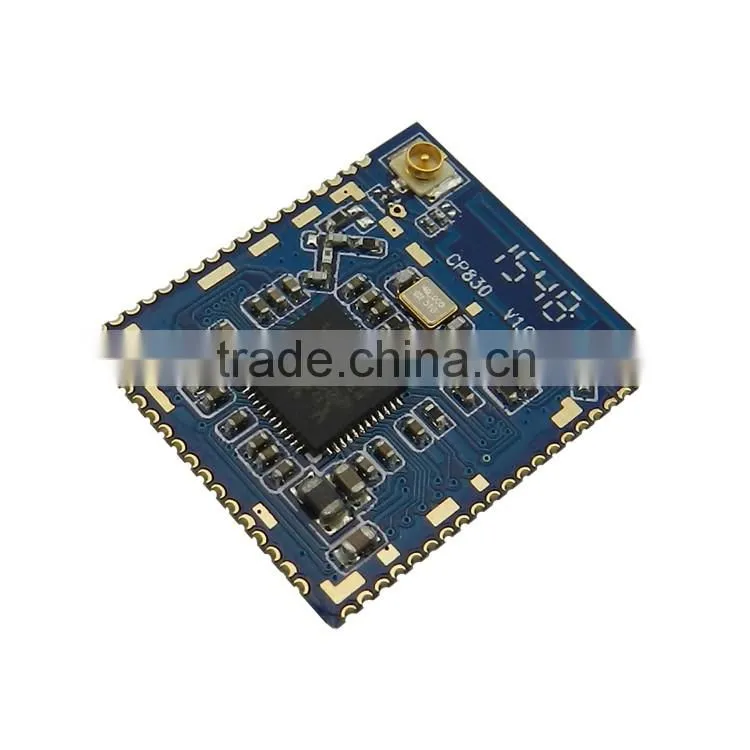

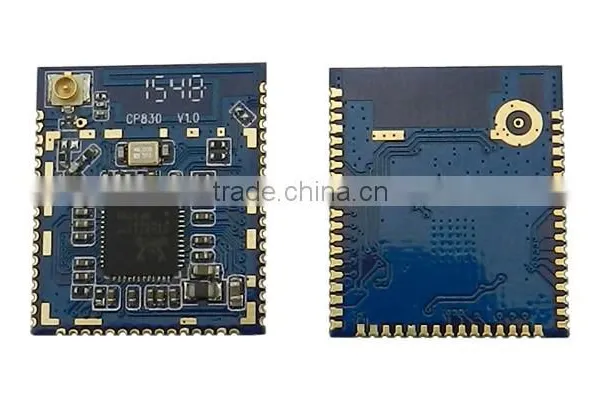

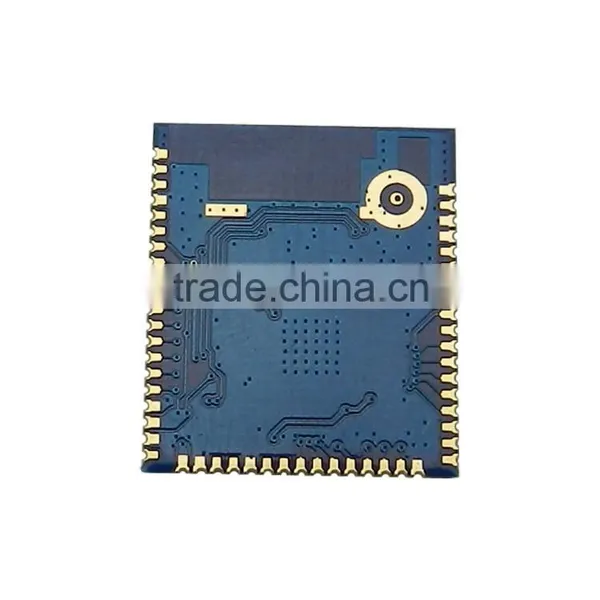

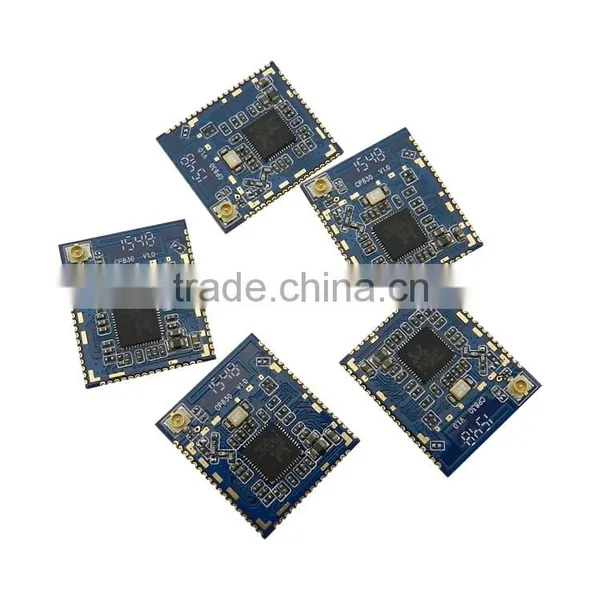

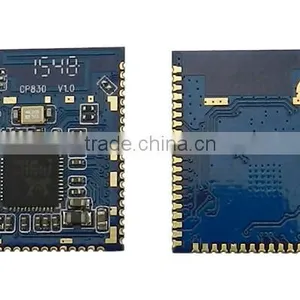

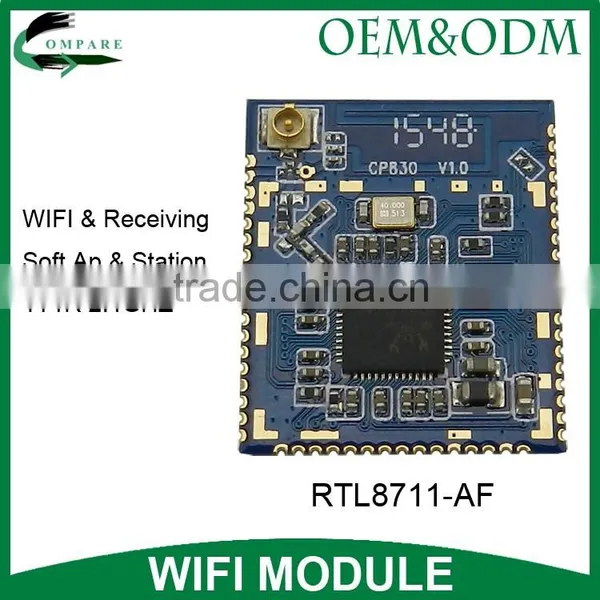

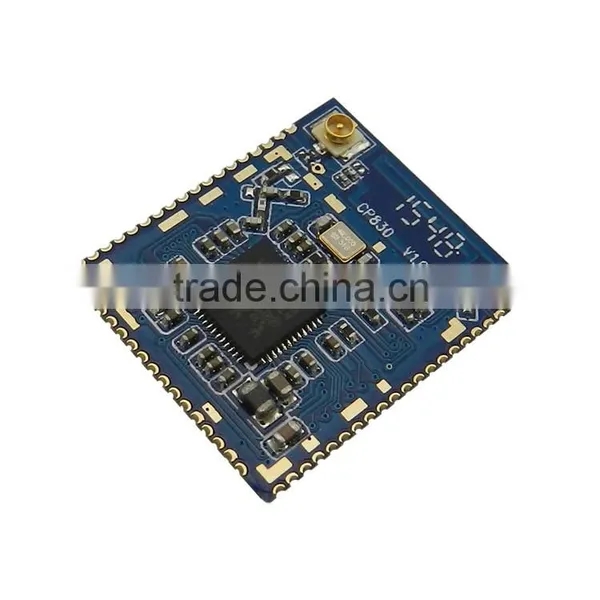

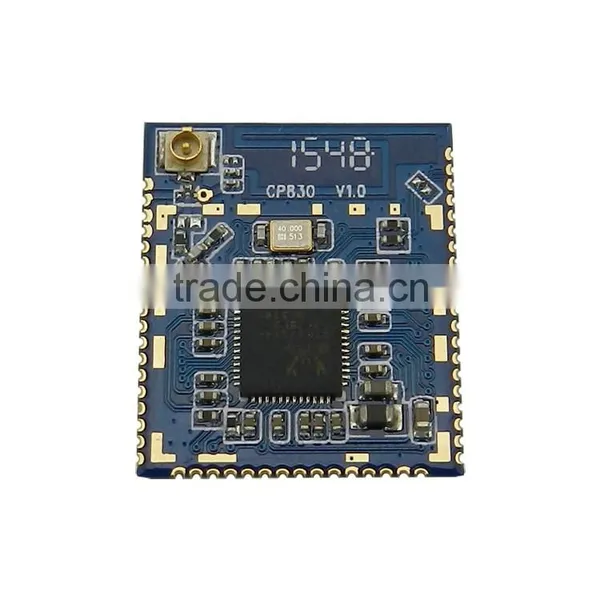

AT command kit programming development board Realtek RTL8711AF wifi module
dimension: 22.3x19x2.5mm
1. Introduction
CP830 is a highly integrated module with low power 802.11n Wireless LAN(WLAN) network controller. It combines an ARM-CM3
MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF function. It also provides a bunch of configurable GPIOs which are
configured as digital peripherals for different applications and control usage.
CP830 integrates internal memories for complete WIFI protocol functions. The embedded memory configuration also provides
simple application developments.
2. Host Interface
◊ 2 x UART
◊ 3x I2C
◊ 1 x I2S
◊ 2 x PCM
◊ 2x SPI
◊ 1x SDIO Slave
◊ 4x PWM
◊ 1x ADC and 1x DAC
◊ 21 x GPIO
3. General Specification
Model Name |
CP830 V1.0 |
Standard |
802.11b/g/n 2.4GHZ 1T1R |
Data Transfer Rate |
1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90.120and maximum of 150Mbps |
Modulation Method |
BPSK/QPSK/16-QAM/64-QAM |
Frequency Band |
2.4GHz ISM Band |
Spread Spectrum |
IEE802.11b:DSSS(Direct Sequence Spectrum) IEE802.11g/n:OFDM(Orthogonal Frequency Division Multiplexing) |
RF Output Power |
13±1dBm@11n ,14±dBm @11g,19±1dBm@11b |
Receiver Sensitivity |
11Mbps-80dbm@8%,54Mbps-70dBm@10%, 150Mbps-64dbm@10% |
Operation Range |
Up to 100 meters in open space |
Operating Temperature |
0~50℃ |
Storage Temperature |
-20℃~70℃ |
Operating Humidity |
10%~90% non-condensing |
Storage Humidity |
5%~90% non-condensing |
Dimensions |
22.3x19x2.5mm(LxWxH) |
IOT Wifi Module Spec
OEM/ODM
customization software
adjustabe hardware according to your mold
