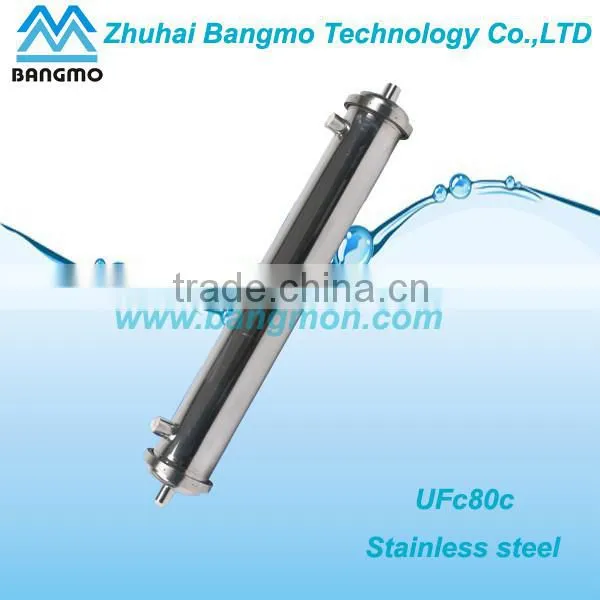

Help CenterNew Products UFc80C PVC Ultrafiltration Membrane for Beer Purify
Related Products
-
China Supplier uf Filter Cartridge for Reverse Osmosis Plant Pre FilterUS$ 550 - 600MOQ: 1 Piece -
2016 Hot 4'' Hollow Fiber uf Water Filter Membrane for Water Treatment Quality ChoiceUS$ 34 - 50MOQ: 1 Piece
-
China uf Water Purifier Equipment ManufacturerUS$ 300 - 320MOQ: 1 Piece
-
New PP PVDF uf Filter / Hollow Fiber Membrane UF250US$ 80 - 1,400MOQ: 10 Cartons
-
Zhuhai New UFf160 Cross Flow Hollow Fiber Membrane Water Filter ModuleUS$ 500 - 600MOQ: 1 Piece
Specifications:
Module |

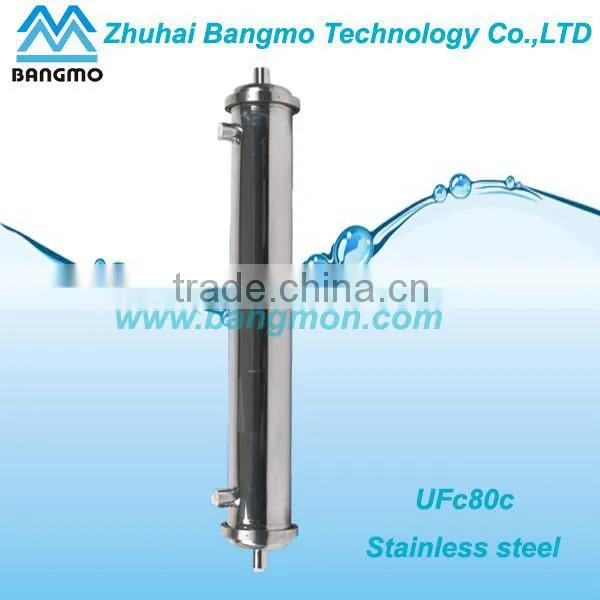

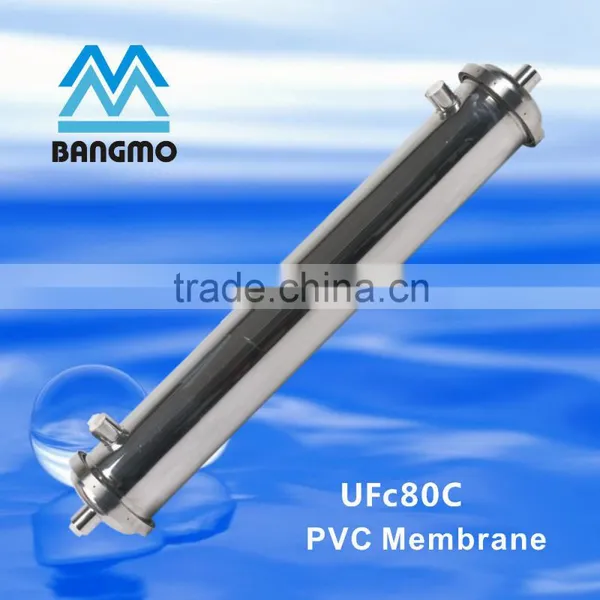

UFc80C ultrafiltration membrane |
Module type |
inside-out |
Shell material |
UPVC |
Membrane Material |
PVC PAN PVDF etc. |
Molecular Weight Cut off |
100,000Dal |
Dimension(mm) |
Ø195X 1400mm |
Active area |
26m2 |
Hollow fiber id/od size |
1.0mm/1.8mm |
Max operating pressure |
0.3Mpa |
Design water flux |
1.2-2.5L/m2.h |
Raw water turbidity |
<15NTU |
Operating temperature |
5-45 centidegree |
Operating mode |
Cross flow or dead-end flow |
Bacteria removal rate |
>4log |
Permeate turbidity |
<0.1NTU |
PH range |
2-12 |
How to clean the ultrafiltration membrane ?
|
Feed Flow 1.25 times the Design Water Flux The Max Operating pressure 0.3Mpa The Max TMP 0.15Mpa The Max Backwash TMP 0.15Mpa Operating Temperature 5-45℃ The Instantaneous Residual Chlorine Concentration Range 100ppm The Instantaneous H2O2 Concentration Range 200ppm Feed Water Turbidity <50NTU PH 2-12 CIP PH 1-13 Filtration Mode Constant-Flux |
uf filter membrane
Backwash/CEB/CIP Conditions
|
Backwash Flow 1.5-2 times the Design Water Flux Backwash Frequency 30-60 Min Backwash Duration 30-60 Sec CEB Flow According to Backwash Flow CEB Frequency 1-7 Day CEB Duration 10 Min CIP Flow According to Number and Volume of Membranes CIP Frequency 1-3 Month CIP Duration 2 H |
Chemical List
Type |
Chemical Name |
Dosage |
Bulk Concentration |
BW Oxidant |
NaClO |
15PPM |
10% |
Acid |
HCl |
1,000 or 2,000 PPM |
30% |
Alkali |
NaOH |
500 or 1,000 PPM |
30% |
CEB Oxidant |
NaClO |
1,000 or 2,000 PPM |
10% |
Footnotes |
The Bulk Concentration is % by Weight. |
||

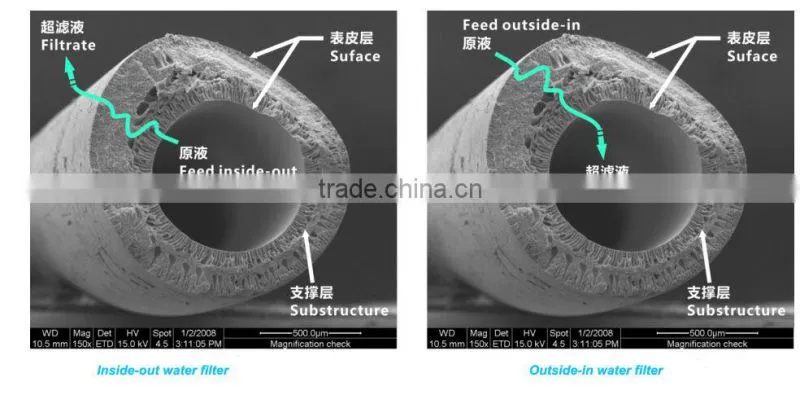

What is inside-out filter and outside-in filter type ultrafiltration membrane ?
ultrafiltration membrane application
Wine filter , mineral water filter , food filter , beverage filter etc. water filter
1.Drinking water purify . water purifying from running water,surface water etc for residential water ;
2.Water recycling for factory , like the waste-water treatment , Reuse the waste water.
3.sterilization, and turbidity removal, RO pretreatment of the pure water and reduce SDI.
4.For the liquid separation . water filter
water filter uf filter membrane
ultrafiltration membrane Package:

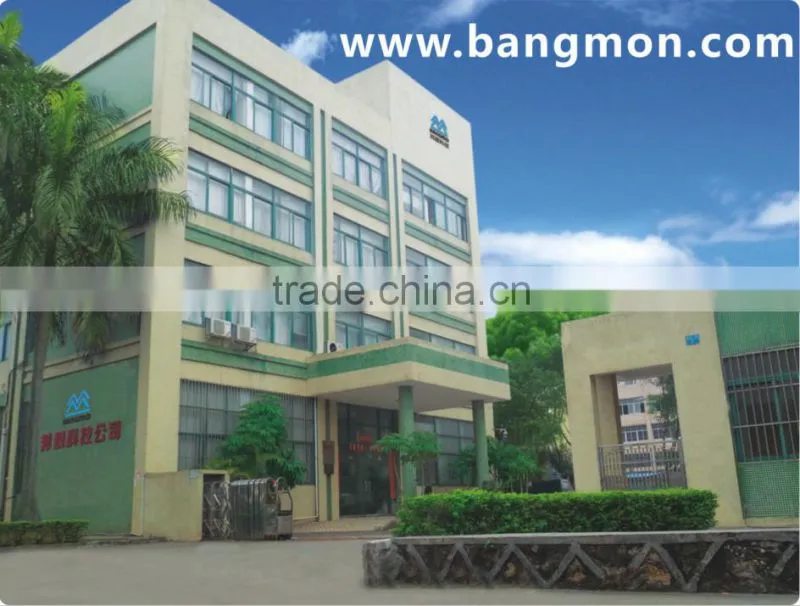

ZHUHAI BANGMO Technology CO., LTD specialized in research, development, and manufacture hollow fiber Ultrafiltration uf Membranes,filter cloth, housing water-purifier.
With strong technical strength, manufacturing process, we have advanced Hollow-fiber Membrane production equipment in China.our company operated strictly under ISO quality management system .
Our products are widely applied in industrial installation, civil life and other fields.We welcome friends from all kinds of field to visit our company and negotiate business with us.
Company certificate
1. What is ultrafiltration membrane?
A: Ultrafiltration membrane is a filtering process, with filter pore from 0.01~ 0.1 micron meters.Remove suspended solid reached 99.99% of bacterial & virus from water & waste water. To gain an excellent output water quality.Save water source.
2. What is the type of our UF membrane?
A: You can ask me directly, reply will be fast .
3. What is your uf membrane warranty?
Zhuhai bangmo support 12 months warranty . Any problem that not caused by human effect , we will replace a new one to you with free .

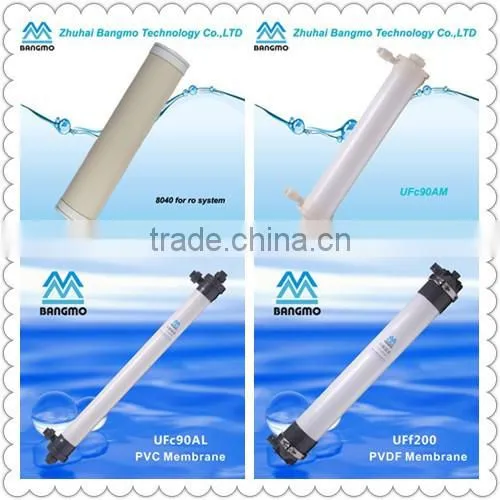

Our company ultrafiltration membrane filter for industry
ultrafiltration membrane filter for water purifier
uf filter membrane
