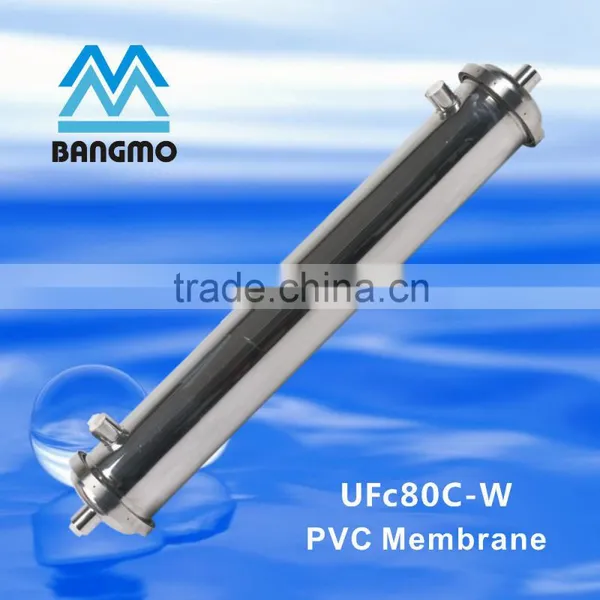

stainless steel uf drinking water treatment machine with price
Specifications:
Module |
UFc80C |
Module type |
inside-out |
Shell material |
UPVC |
Membrane Material |
PVC |
Molecular Weight Cut off |
100,000Dal |
Dimension(mm) |
Ø195X 1400 |
Active area |
26m2 |
Hollow fiber id/od size |
1.0mm/1.8mm |
Max operating pressure |
0.3Mpa |
Design water flux |
1.2-2.5L/m2.h |
Raw water turbidity |
<15NTU |
Operating temperature |
5-45 centidegree |
Operating mode |
Cross flow or dead-end flow |
Bacteria removal rate |
>4log |
Permeate turbidity |
<0.1NTU |
PH range |
2-12 |

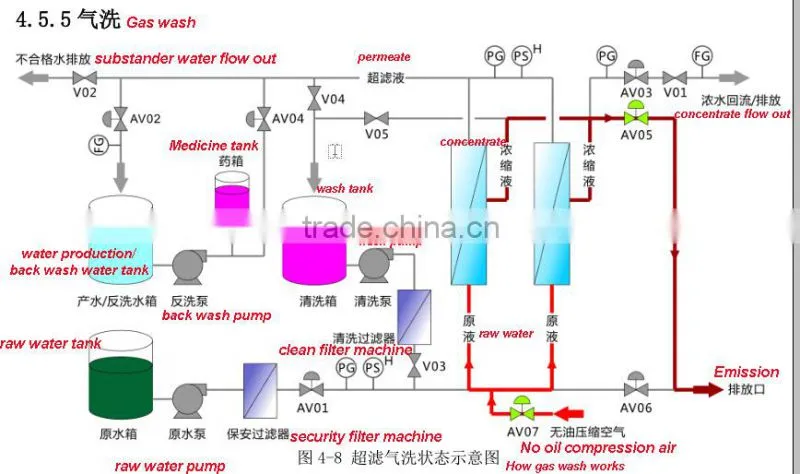

How to clean the water filter ?
|
Feed Flow 1.25 times the Design Water Flux The Max Operating pressure 0.3Mpa The Max TMP 0.15Mpa The Max Backwash TMP 0.15Mpa Operating Temperature 5-45℃ The Instantaneous Residual Chlorine Concentration Range 100ppm The Instantaneous H2O2 Concentration Range 200ppm Feed Water Turbidity <50NTU PH 2-12 CIP PH 1-13 Filtration Mode Constant-Flux |

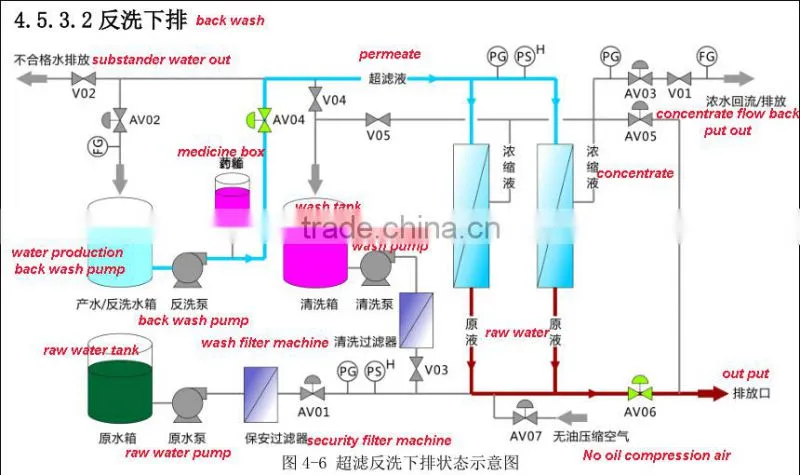

Backwash/CEB/CIP Conditions
|
Backwash Flow 1.5-2 times the Design Water Flux Backwash Frequency 30-60 Min Backwash Duration 30-60 Sec CEB Flow According to Backwash Flow CEB Frequency 1-7 Day CEB Duration 10 Min CIP Flow According to Number and Volume of Membranes CIP Frequency 1-3 Month CIP Duration 2 H |
Chemical List
Type |
Chemical Name |
Dosage |
Bulk Concentration |
BW Oxidant |
NaClO |
15PPM |
10% |
Acid |
HCl |
1,000 or 2,000 PPM |
30% |
Alkali |
NaOH |
500 or 1,000 PPM |
30% |
CEB Oxidant |
NaClO |
1,000 or 2,000 PPM |
10% |
Footnotes |
The Bulk Concentration is % by Weight. |
||
What is inside-out filter and outside-in filter type ?
uf filter membrane application
products are mainly used in :
Wine filter , mineral water filter , food filter , beverage filter etc. water filter
1.Drinking water purify . water purifying from running water,surface water etc for residential water ;
2.Water recycling for factory , like the waste-water treatment , Reuse the waste water.
3.sterilization, and turbidity removal, RO pretreatment of the pure water and reduce SDI.
4.For the liquid separation . water filter
water filter uf filter membrane
Package:
ZHUHAI BANGMO Technology CO., LTD specialized in research, development, and manufacture hollow fiber Ultrafiltration uf Membranes,filter cloth, housing water-purifier.
With strong technical strength, manufacturing process, we have advanced Hollow-fiber Membrane production equipment in China.our company operated strictly under ISO quality management system .
Our products are widely applied in industrial installation, civil life and other fields.We welcome friends from all kinds of field to visit our company and negotiate business with us.
water filter
1. What is ultrafiltration membrane?
A: Ultrafiltration membrane is a filtering process, with filter pore from 0.01~ 0.1 micron meters.Remove suspended solid reached 99.99% of bacterial & virus from water & waste water. To gain an excellent output water quality.Save water source.
2. What is the type of our UF membrane?
A: You can ask me directly, reply will be fast .
3. What is your uf membrane warranty?
Zhuhai bangmo support 12 months warranty . Any problem that not caused by human effect , we will replace a new one to you with free .
