domestic ultra filtration systems
Specification
Name |
ultra filtration systems |
Element size |
Ø160×1355 mm |
Pore size |
0.01μm |
Active membrane area |
15 m2 |
Pure water |
4.5 t/h. 25ºC. 0.15Mpa |
Designed water flow |
0.7-1.5 t/h |
ID/OD of hollow fiber |
1.0 mm / 1.8 mm |
MWCO |
100000 Dalton |
Membrane components structure |
Internal pressure |
Membrane material |
PVC |
Material of end seal |
Epoxy resins |
Material of housing |
UPVC |
Inlet pipe |
OD 40mm PVC pipe |
Produced water outlet pipe |
OD 40mm PVC pipe |
Concentrated water outlet pipe |
OD 40mm PVC pipe |
Usage |
water ultrafiltration plant |
Payment |
T/T |
| Shipping | by sea or air |
Introduction for UF membrnane
Hollow fiber Ultrafiltration membrane is a membrane filtration that separate Suspended solids and other
high molecular , while water and low molecular weight solutes pass through the membrane in the permeate.
This separation process is used in industry and research for purifying water, especially protein solutions.
UltraUltrafiltration is applied in cross-flow or dead-end mode. wat

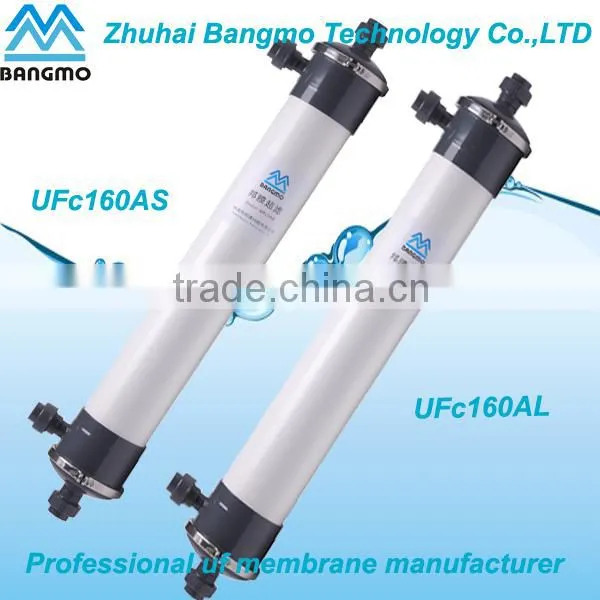

Size show for the UFc160AS
ultra filtration systems Application
1.Drinking water purify . water purifying from running water,surface water etc for residential water ;
2.Water recycling for factory , like the waste-water treatment , Reuse the waste water.
3.sterilization, and turbidity removal, RO pretreatment of the pure water and reduce SDI.
4.For the liquid separation .
water ultra filtration feature
1.Strong enough with clamp on the uf membrane module end cap, uses the explosion proof the design, bearing pressure ability above 1.5 MPA;
2. Backwash feed water from the center tube, the center tube water distribution pore distributed; water
3. Do not use much square , modular design adapt to medium water-treatment scale .
4. Center for pipe joints and end caps double seal structure, effective prevent the center tube and end cap junction leakage;
5. Connection adopts international standardize rapid installation sleeve chuck, which is fast to install,and simply;
6. End cap materials: high adhesive level, high health standard of epoxy resin. water ultrafiltration plant
Zhuhai bangmo advantage
Professional uf membrane experience .
with more than 9 years in water treatment field .
well-trained salesman here to serve for you .
Every hollow fiber uf membrane will be check strictly before ship out . water ultrafiltration plant
Reply will be fast
one piece packed in one carton box with protective foram wastewater treatment wastewater treatment
zhuhai bangmon professional water ultrafiltration plant
1.We are a professional manufacturer of hollow fiber uf membrane;
2. We can provide various dimension, different membrane material like PVC, PAN, PVDF etc, various filtration precision, different flow rate and performance well UF membrane module;
3. We also provide OEM, ODM service;
4.Reply will fast .
5.Our rich experience engineer will give you the suggestion based on the real situation .
ZHUHAI BANGMO Technology CO., LTD specialized in research, development, and manufacture hollow fiber Ultrafiltration uf Membranes,filter cloth, housing water-purifier.
With strong technical strength, manufacturing process, we have advanced Hollow-fiber Membrane production
equipment in China.our company operated strictly under ISO quality management system .
Our products are widely applied in industrial installation, civil life and other fields.We welcome friends from
all kinds of field to visit our company and negotiate business with us.
water ultrafiltration plant water ultrafiltration plant
1. What is ultra filtration membrane?
A: Ultrafiltration membrane is a filtering process, with filter pore from 0.01~ 0.1 micron meters.Remove suspended solid reached 99.99% of bacterial & virus from water & waste water. To gain an excellent output water quality.Save water source.
2. What is the type of our UF membrane?
A: You can ask me directly, reply will be fast .I will give the more details for your required type
3. What is your uf membrane warranty?
Zhuhai bangmo support 12 months warranty . Any problem that not caused by human effect , we will replace a new one to you with free .
4.What is the delivery for your uf filter products?
As usually , we have stock for every type , so after receive payement , we will ship out within 2 days , but that will depend on the order quantity also .
More ultra filtration plant
Ultra filtration membrane for home water filter system
wastewater treatment wastewater treatment
