Help CenterLow Price uf Membrane 4040 Manufacturer
Related Products
-
Factory Price uf Membrane 8040US$ 250 - 300MOQ: 1 Piece -
PVC PAN PVDF Ultra Filter Membrane to Filter the WaterUS$ 300 - 310MOQ: 1 Piece
-
Hot Sell!!! uf Water Purifier Membrane for Drinking Water PlantUS$ 250 - 350MOQ: 1 Piece
-
Factory Price Hollow Fiber uf Membrane Industrial Waste Water TreatmentUS$ 1 - 50MOQ: 2 Pieces
-
Pvc/pvdf Hollow Fiber uf Filter Membrane for Industrial Waste Water TreatmentUS$ 30 - 100MOQ: 1 Piece
Specifications:
Module |
UFc4040 uf membrane module |
Module type |
Inside-out |
Shell material |
UPVC |
Membrane Material |
PVC PAN |
Molecular Weight Cut off |
100,000Dal |
Dimension(mm) |
Ø95 X 1016mm |
Active area |
3.8m2 |
Hollow fiber id/od size |
1.0mm/1.8mm |
Max operating pressure |
0.3Mpa |
Design water flux |
0.2-0.4L/m2.h |
Raw water turbidity |
<15NTU |
Operating temperature |
5-45 centidegree |
Operating mode |
Cross flow or dead-end flow |
Bacteria removal rate |
>4log |
Permeate turbidity |
<0.1NTU |
PH range |
2-12 |

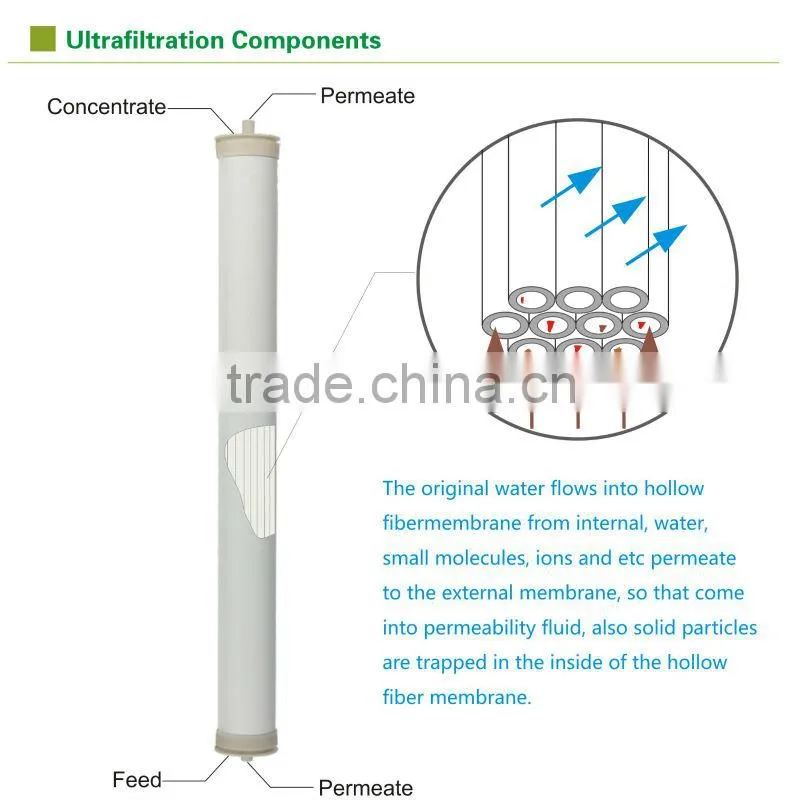

uf membrane 4040 with inside-out filter
uf membrane 4040 module application:
1.Drinking water treatment
2.Surface water treatment
3.Sewage treatment
4.Groundwater Treatment
5.Tap water Treatment
More details
Specification |
1) Material of hollow fiber capillary: PVC etc. OEM material 2) I/O Diameter of capillary: 0.78/1.3 mm 3) MWCO(Dalton) of capillary: 10K to 50K 4) Pore Size(um) of capillary: 0.01Micron 5) Filtered type of capillary: Inside-Out/outside-in 6) Material of housing: U-PVC 7) Casting Material(Seal): Epoxy Resin |
|
Operation And Maintenance |
1) Recommended operating Pressure : 0.1-0.3 MPa 2) Discontinuous Max. Pressure : 0.5 MPa 3) Type of flushing(for Home): Forward Flushing / Backward Flushing 4) Temperature : 5-45°C 5) PH : 2-12 6) Continuous chlorine resistance : 100PPm 7) Discontinuous chlorine resistance : 200PPm |
|
Advantages of Ultra filtration |
1) Filtration down to 0.01 micron 2) Removes bacteria and viruses of water up to 99.99% 3) Simplest installation and operation 4) Absolute cost savings & reduce maintenance cost 5) long the lifespan from 2 years up to 3 years 6) Separate big molecule matter, colloid and organic in water, entrap bacteria, algae etc. 8) Specially design to meet the flowrate required and space savings 9) No maintenance cost |
1.We are a professional manufacturer of hollow fiber uf membrane,water treatment ;
2. We can provide various dimension, different membrane material like PVC, PAN, PVDF etc, various filtration precision, different flow rate and performance well UF membrane module;
3. We also provide OEM, ODM service;
4.Reply will fast .
5.Our rich experience engineer will give you the suggestion based on the real situation .
6.12 months warranty
7. we are focused to provide our clients excellent quality ultrafiltration membrane
|
Zhuhai Bangmo is a high-tech enterprise specializing in the production of hollow fiber ultrafiltration ation membranes,uf filter elements , filter cloth, mbr membrane module etc. Water treatment equipments. Our company is devoted to research, development and manufacture of hollow fiber membrane with with high-performance, high-flux, high anti-pollution and low energy consumption. Our main products are PVC hollow fiber UF membranes,PVDF hollow fiber UF membranes, PAN UF hollow fiber membranes and other membranes with various materials and specifications. Bangmo have several senior technical experts and excellent engineering team. With 22 years manufacture experience and advanced manufacturing equipments, our company has become one of the few best PVDF hollow fiber UF membrane manufacturers. | ||||||||
More uf membrane modules
Zhuhai Bangmo Technology - The uf membrane manufacturer for more than 22 years experience.
