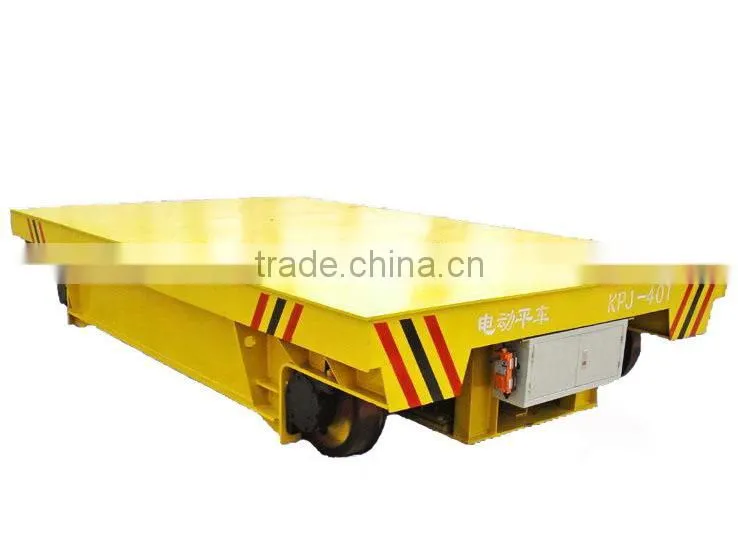

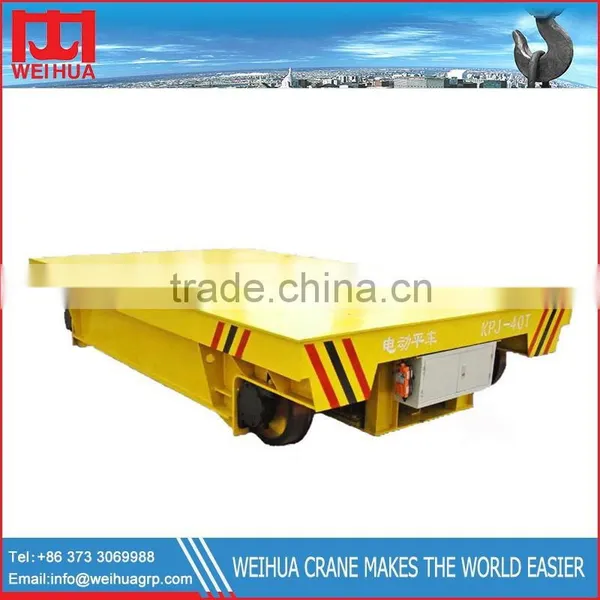

1.Electric flat carriage used indoors is one type of electric transportation vehicle with rails. It has good features such as simple structure, convenient operation, large loading capacity, easy maintenance and long service life. For the good advantages such as convenience, economic and practical, cleaning easily, it has become the preferred means of transportation for frequently handling heavy goods in the workshops and between workshops.
2.The power supply type of traveling mechanism can be classified into cable drum, low-voltage rail, tunnel slide wire and accumulator(for small capacity electric flat carriage).
Main Features
1.The equipment consists of electrical device, flat carriage frame, traveling mechanism and frame fittings.
2.Electrical device is made up of resistor, control cabinet (box) and control handle.
3.Flat carriage frame consists of end carriage, intermediate connecting beam and pallet surface.
4.Motor, brake, reducer, transmission shaft, coupling and wheel group compose the traveling mechanism. Or adopt three-in-one reducer to directly drive wheel group.
5.Frame fittings have guard plate and rail sweeper etc.
Main Technical Parameter
Main technical parameters of electric flat carriage includes seven items, namely type of power supply, rated capacity ,pallet surface size and height, rail length, rail distance, operation mode. They can be designed according to the requirements of customers but it shall be noted when ordering product.
| Name | DPC Series | |||||
| Type | DPC-5 | DPC-10 | DPC-16 | DPC-20 | DPC-50 | DPC-75 |
| Work Duty | A5 | |||||
| Capacity (t) | 5 | 10 | 16 | 20 | 50 | 75 |
| Speed (m/min) | 15/20/30 | 15 | 20 | |||
| Motor | ZDY121-4 | ZDY121-4 | YZRE112M3-4 | YZRE160L-8 | ||
| Total Weight (t) | 2.8 | 3.1 | 4.8 | 5 | 8.8 | 12 |
| Rail | 24kg/m | 43kg/m | QU70 | |||
| Power Supply | AC 3PH 50Hz 380V |
|||||

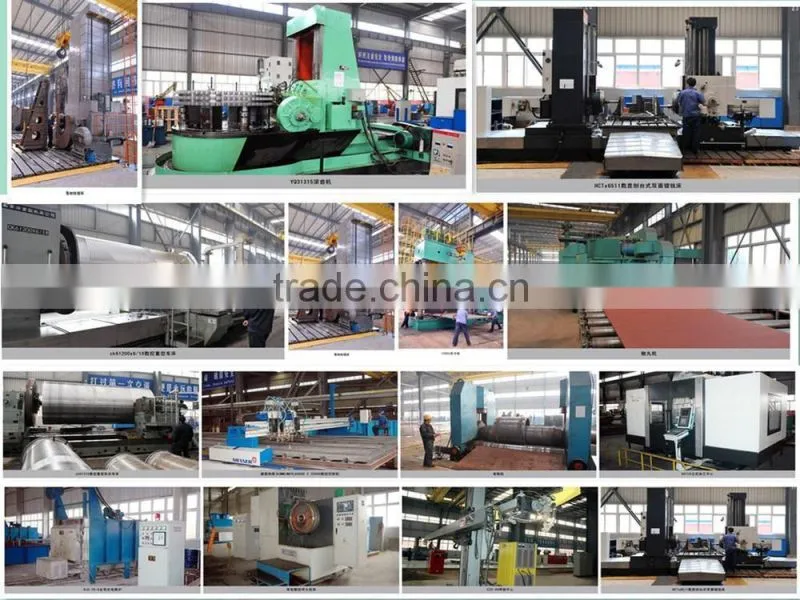

WEIHUA Company was established in 1988, it has the advanced processing equipment and processing technology compared to the same industry at home. Also WEIHUA takes the lead in the implementation of lean management, lean production, which achieves the maximum guarantee of product quality, the requirements of customers.
·WEIHUA group mainly dealing in researching, developing and producing the lifting machinery, port machinery, reducer, etc, and also Weihua Group has become one of the most competitive enterprise group with the largest production and sales volume and the most influential brand in China’s crane industry.
·Up to now, our pruducts have been exported to more than 69 countries like America, Japan, Russia, Korea, etc.
After-sale services
Warranty
WEIHUA grants our clients a twelve-month period or 2000-hour warranty for any products purchased from our company.
Spare Parts
WEIHUA is dedicated to provide our clients with high quality spare parts. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are.
Installation&Maintenance
WEIHUA is able to provide you with the overall installation of complicated machinery and equipment and inspection of the whole machine, operation equipment.
Training
WEIHUA offers training services to different users. Training programs can be conducted in our factory field, or at the client’s site.
Technical Advice
WEIHUA can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine.
1. Sales manager cell number is 24hours available.
2. Payment term is flexible.
3. Design the product according to your technical request.
4.Our engineer is willing to help fixing the crane for you.
5. Diversity of products.
6. Delivery on time.
7. Warranty: 12 months.
8. Trade Assurance Service.
For more details, please contact us!
This is the overview of our products. For more details, please never hesitate to tell us, we will be pleased to be of further assistance!
