API Oil and Gas Oil Well Drill Collar 3% Discount
- Tianjin Port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Lockheed | |
| Model Number | drill collar lifting sub | Type | Other, oil well drill collar | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Other, Carbide, alloy steel,AISI 4145H,AISI4145H mod, | Processing Type | Forging | |
| Use | Other, Well Drilling, Well Drilling,water well |
Product Description
Specifications
oil well drill collar1.certificated by API
2.manufacturer
3.reasonable price
4.good after-sale servies
API oil and gas oil well drill collar 3% discount
1.Introduction about us:
Established in 1998, Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional
technology-oriented enterprise specialized in the production drilling equipments and tools,
which is one of the leading corporations of drilling tools and workover fishing tool manufacturing
industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar,
fishing tap etc.
Cangzhou Lockheed Drilling Equipment Parts Co., is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway No.106, 166km away from
Beijing, 110km away from Tianjin and 35km away from Baiyangdian, the Pearl of Huabei Area. More convenient transport,faster delivery,and more trustful enterprise is your best choice.Come on,join us.
Our goal:Strive for Perfection and Win by Quality.
Non-magnetic drill collars
Nominal size | OD | ID | L (mm) | DF(mm) | Bending Strength ratio | ||
mm | Inch | mm | inch | ||||
NC31-41(2-7/8IF) | 104.8 | 4-1/8 | 50.8 | 2 | 9150 | 100.4 | 2.43:1 |
NC35-47 | 120.7 | 4-3/4 | 50.8 | 2 | 9150 | 114.7 | 2.58:1 |
NC38-50(3-1/2IF) | 127.0 | 5 | 57.2 | 2-1/4 | 9150 | 121.0 | 2.38:1 |
NC44-60 | 152.4 | 6 | 57.2 | 2-1/4 | 9150/9450 | 144.5 | 2.49:1 |
NC44-60 | 152.4 | 6 | 71.4 | 2-13/16 | 9150/9450 | 144.5 | 2.84:1 |
NC44-62 | 158.8 | 6-1/4 | 57.2 | 2-1/4 | 9150/9450 | 149.2 | 2.91:1 |
NC46-62(4IF) | 158.8 | 6-1/4 | 71.4 | 2-13/16 | 9150/9450 | 150.0 | 2.63:1 |
NC46-65(4IF) | 165.1 | 6-1/2 | 57.2 | 2-1/4 | 9150/9450 | 154.8 | 2.76:1 |
NC46-65(4IF) | 165.1 | 6-1/2 | 71.4 | 2-13/16 | 9150/9450 | 154.8 | 3.05:1 |
NC46-67(4IF) | 171.4 | 6-3/4 | 57.2 | 2-1/4 | 9150/9450 | 159.5 | 3.18:1 |
NC50-67(4-1/2IF) | 171.4 | 6-3/4 | 71.4 | 2-13/16 | 9150/9450 | 159.5 | 2.37:1 |
NC50-70(4-1/2IF) | 177.8 | 7 | 57.2 | 2-1/4 | 9150/9450 | 164.7 | 2.54:1 |
NC50-70(4-1/2IF) | 177.8 | 7 | 71.4 | 2-13/16 | 9150/9450 | 164.7 | 2.73:1 |
NC50-72(4-1/2IF) | 184.2 | 7-1/4 | 71.4 | 2-13/16 | 9150/9450 | 169.5 | 3.12:1 |
NC56-77 | 196.8 | 7-3/4 | 71.4 | 2-13/16 | 9150/9450 | 185.3 | 2.70:1 |
NC56-80 | 203.2 | 8 | 71.4 | 2-13/16 | 9150/9450 | 190.1 | 3.02:1 |
6-5/8REG | 209.6 | 8-1/4 | 71.4 | 2-13/16 | 9150/9450 | 195.7 | 2.93:1 |
NC61-90 | 228.6 | 9 | 71.4 | 2-13/16 | 9150/9450 | 212.7 | 3.17:1 |
7-5/8REG | 241.3 | 9-1/2 | 76.2 | 3 | 9150/9450 | 223.8 | 2.81:1 |
NC70-97 | 247.6 | 9-3/4 | 76.2 | 3 | 9150/9450 | 232.6 | 2.57:1 |
NC70-100 | 254.0 | 10 | 76.2 | 3 | 9150/9450 | 237.3 | 2.81:1 |

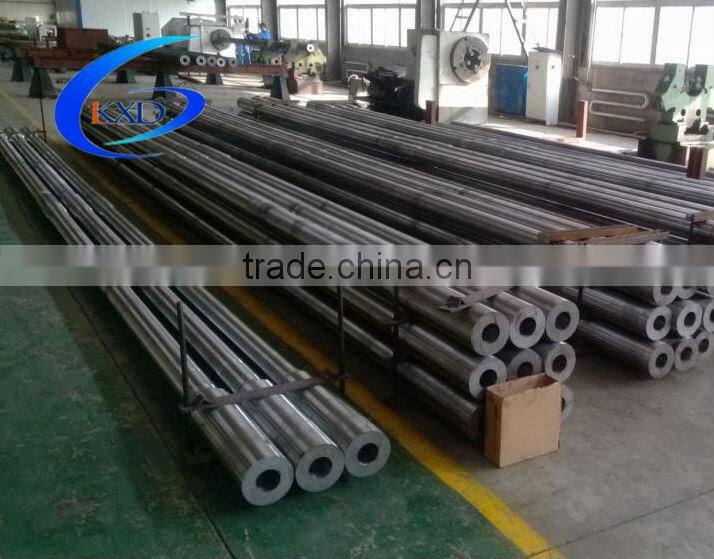

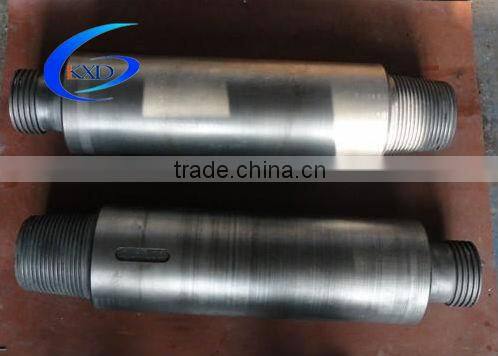

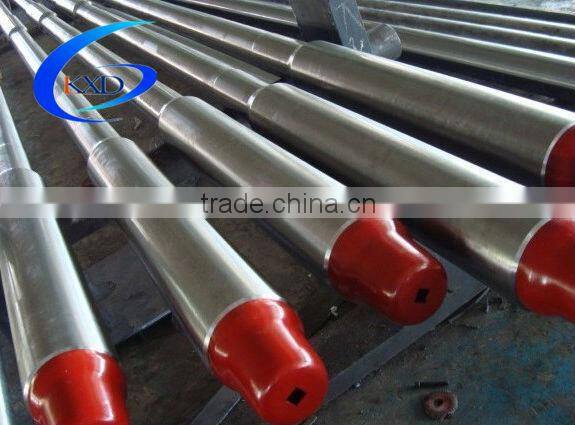

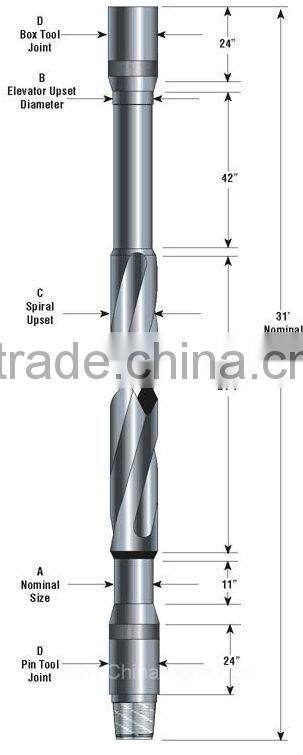

oil well drill collar Pictures:
After-sale Serives
Packing and shipping
packing

Shipping

How to order the products???
Please send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
Can I expect a quality products???
Yes. of course.All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
PLs add the information in your inquiry.
1) the size of the tricone bit
2) the IADC tooth model, like 537G
3) PLs tell the drilling information of the layer.
4) PLs tell the quantity.
All Sizes and IADC Codes of Drill Bits Are Available.
Special Requirements of Different Models Can Be Customized.
