Product Details
Place of Origin: | Hebei, China | Brand Name: | Lockheed | Model Number: | integral blade stabilizer |
Type: | Other, Stabilizer, integral blade stabilizer | Machine Type: | Other, Drilling Equipment, Stabilizer | Certification: | API |
Material: | Other, Carbide, Carbon Steel | Processing Type: | Forging | Use: | Other, Well Drilling, Integral Blade Stabilizer |
Product Description
API Integral Blade Stabilizer from Chinese supplier
Advantage of integral blade stabilizer
1.reasonable price
3.quality assurance
4.factory direct
5.adequate stocks, fast delivery
Detail of integral blade stabilizer

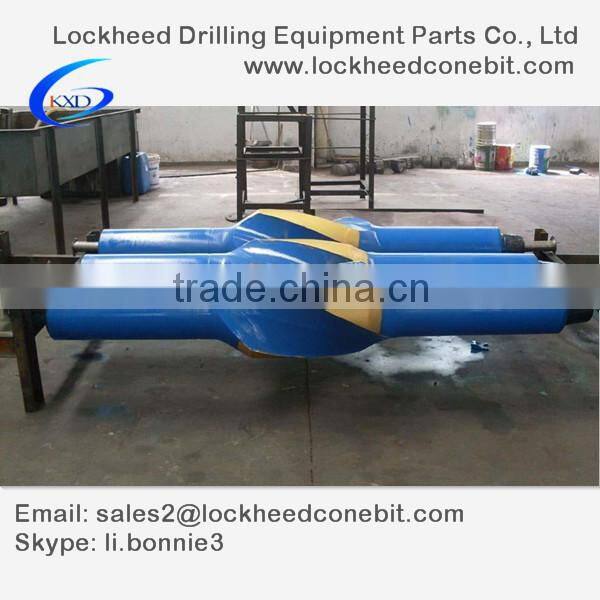

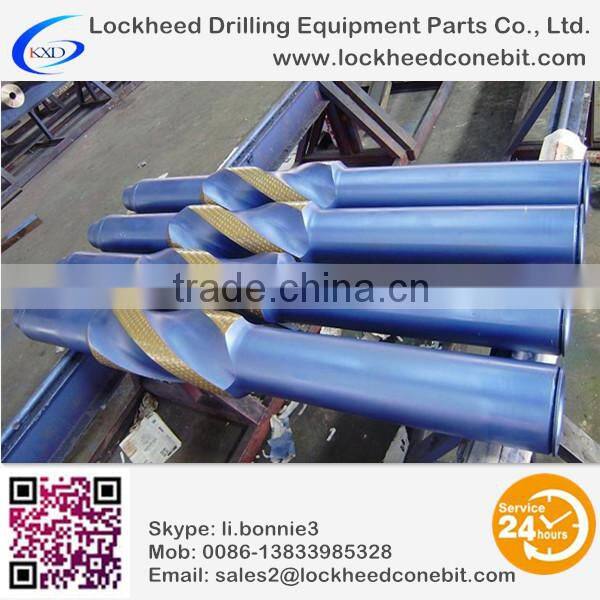

Integral Blade Stabilizer (IBS) is a one piece rotating stabilizer which can be placed near bit or up in the drill string. It is a one piece construction manufactured from high strength alloy steel (non-magnet steel optional). It prevents differential sticking of the drill string by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall. This reduces vibration, drill pipe whirl, and well bore tortuosity; furthermore, the stabilization maintains drilling trajectory whether drilling straight, horizontal, or directional wells.
Specifications of integral blade stabilizer
Bit Size (in) | Working OD (mm) | End OD of body(mm) | ID (mm) | Length (mm) | Thread code on both ends | |||
Drill string type | Near bit type | |||||||
Top | Down | Top | Down | |||||
6 | 152.2 | 121 | 51 | 1200 | NC38 | 3 1/2 REG | ||
6 1/4 | 158.7 | |||||||
6 1/2 | 165.1 | |||||||
7 1/2 | 190.5 | 159 | 57 | 1600 | NC46 | 4 1/2 REG | ||
7 7/8 | 200 | |||||||
8 3/8 | 212.7 | 159 | 71 | 1600 | NC46 | |||
8 1/2 | 215.2 | 159 | ||||||
8 3/4 | 222.2 | |||||||
9 1/2 | 241.3 | 178 | 1600 | NC50 | NC50 | NC50 | ||
9 5/8 | 244.5 | 1800 | 6 5/8 REG | |||||
9 7/8 | 250.8 | |||||||
12 1/4 | 311.2 | 203 | 76 | 1800 | NC56 | NC56 | NC56 | 6 5/8 REG |
16 | 406 | 229 | 2000 | NC61 | NC61 | NC61 | NC61 | |
17 1/2 | 444.5 | |||||||
24 | 609.6 | |||||||
26 | 660.4 | |||||||
28 | 711.2 | |||||||
Note: Stabilizer can be made according to customer’s special requirement. |
Integral Blade Stabilizer:
Drill bits we supply:
Packing: Wooden case or as clients' request(standard export packing)
Shipping: By sea or by air for exporting goods.
1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.
The optimaler price, the best quality, the fastest speed, the best service.Your every piece of advice to us we will be very seriously treatment. If you have any suggestion to us, please surely tell us by mail in a timely manner You are not just a visitor, but our partner in common progress.
Sincerely hope to cooperate with you.
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
Pls do not forget to add below information in your inquiry which will help us to give you the exact quotation at the first time:
1) the size of the tricone bit you need
2) the IADC code of the bit, like 537G
3) the drilling information of the layer
4) quantity
Welcome visit our page, any need pls feel free to contact me.
I'm Bonnie, always at your service!
