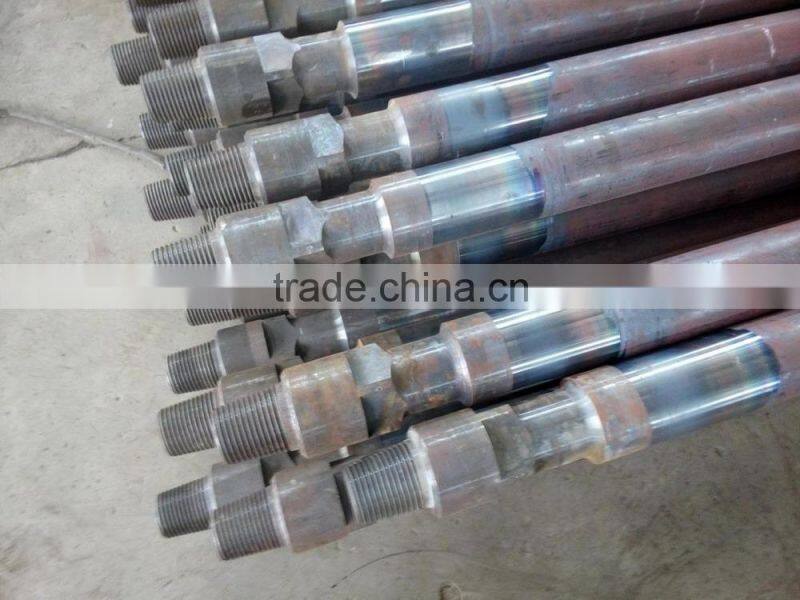

Oil Well Drilling t4 Drill Pipe/drilling Pipe
- Tianjin
- T/T D/P D/A Money Gram
You May Like
-
Oil Well Drilling t4 Drill Pipe Large Quantity
-
OD114.3mm NC46 Drilling Pipe Manufacturer
-
Oil Drill Collar Drill Collar Connection With API 3% Discount
-
API Oil and Gas Oil Well Drill Collar 3% Discount
-
7"used Drill Collar for Oil Drilling 3% Discount
-
API AISI 4145H Drill Collar Lifting Sub FOB Tianjin
Product Details
| Place of Origin | Hebei, China | Brand Name | Lockheed | |
| Model Number | t4 Drill Pipe | Type | Drill Pipe | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Other, X52,X56,GR.B, Q345, Q235 | Processing Type | Forging | |
| Use | Other, Well Drilling, well drilling |
Product Description
(25' S/S (IU) X 4 1/2" X .337 Wall X 2 7/8" IF P X B Hex/SQ.Tube is a Grade D., alloy is 4140/4155 heat treated and quench tempered
Parameters of drill pipes.
| Size | Weight | Plain-End Weight | Outside Diameter | Wall thickness | Grade | |||
| Designation | Wpe | D | T | |||||
| lb/ft | kg/m | in mm | in. mm | |||||
| 2 3/8 | 6.65 | 6.27 | 9.33 | 2.375 | 60.3 | 0.28 | 7.11 | E, X, G, S |
| 2 7/8 | 10.4 | 9.72 | 14.47 | 2.875 | 73 | 0.362 | 9.19 | E, X, G, S |
| 3 1/2 | 9.5 | 8.81 | 13.12 | 3.5 | 88.9 | 0.254 | 6.45 | E |
| 3 1/2 | 13.3 | 12.32 | 18.34 | 3.5 | 88.9 | 0.368 | 9.35 | E, X, G, S |
| 3 1/2 | 15.5 | 14.64 | 21.79 | 3.5 | 88.9 | 0.449 | 11.4 | E |
| 3 1/2 | 15.5 | 14.64 | 21.79 | 3.5 | 88.9 | 0.449 | 11.4 | X, G, S |
| 4 | 14 | 12.95 | 19.27 | 4 | 101.6 | 0.33 | 8.38 | E, X, G, S |
| 4 1/2 | 13.75 | 12.25 | 18.23 | 4.5 | 114.3 | 0.271 | 6.88 | E |
| 4 1/2 | 16.6 | 15 | 22.32 | 4.5 | 114.3 | 0.337 | 8.56 | E, X, G, S |
| 4 1/2 | 20 | 18.71 | 27.84 | 4.5 | 114.3 | 0.43 | 10.92 | E, X, G, S |
| 5 | 16.25 | 14.88 | 22.16 | 5 | 127 | 0.296 | 7.52 | X, G, S |
| 5 | 19.5 | 17.95 | 26.7 | 5 | 127 | 0.362 | 9.19 | E |
| 5 | 19.5 | 17.95 | 26.7 | 5 | 127 | 0.362 | 9.19 | X, G, S |
| 5 | 25.6 | 24.05 | 35.8 | 5 | 127 | 0.5 | 12.7 | E |
| 5 | 25.6 | 24.05 | 35.8 | 5 | 127 | 0.5 | 12.7 | X, G, S |
| 5 1/2 | 21.9 | 19.83 | 29.52 | 5.5 | 139.7 | 0.361 | 9.17 | E, X, G, S |
| 5 1/2 | 24.7 | 22.56 | 33.57 | 5.5 | 139.7 | 0.415 | 10.54 | E, X, G, S |
| 6 5/8 | 25.2 | 22.21 | 33.04 | 6.625 | 168.3 | 0.33 | 8.38 | E, X, G, S |
| 6 5/8 | 27.72 | 24.24 | 36.06 | 6.625 | 168.3 | 0.362 | 9.19 | E, X, G, S |
Packing: Iron shelves or others suited seashipment
Shipping: By sea or by air for exporting goods.
1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will
solve the problems ASAP.
4.We can provide product repair services.
The optimal price, the best quality, the fastest speed, the best service.Your every piece of advice
to us we will be very seriously treatment. If you have any suggestion to us, please surely tell us bymail in a timely manner You are not just a visitor, but our partner in common progress.
Sincerely hope to cooperate with you.
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional manufacturer of drilling
equipments and tools which is located in Hejian City, the centre of the triangle of Beijing, Tianjin
and Shijiazhuang, enjoyingconvenient transportation.Our products Including below three series
with full model types:
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Well head tools: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing
tap etc.
Our staff are professional and experienced. By the hard efforts and united cooperation, we have
establisheda wide sale network. Striving for excellent quality, better price and perfect service.
Welcome new and old customers to order.
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from
our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. ToWest of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at
the same time, mature production technology ensuring the quality satisfy international request.
