Kjeldahl Nitrogen Apparatus

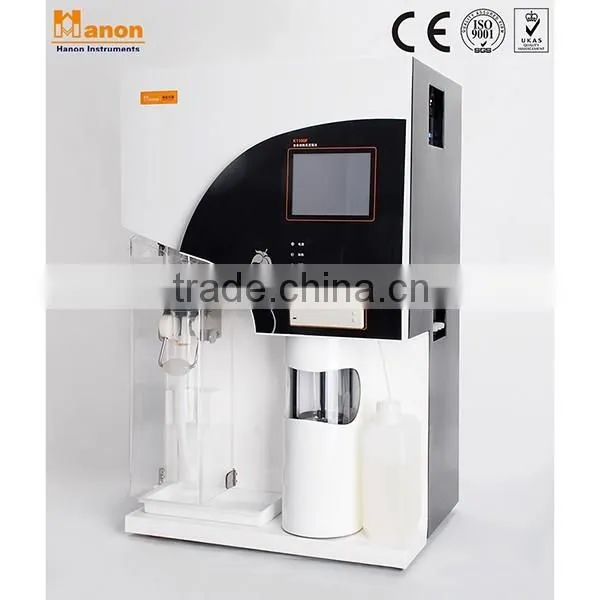

Kjeldahl Nitrogen Apparatus photo-1
Kjeldahl Nitrogen Apparatus photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hanon
Model Number:
K9860
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hanon
Model Number K9860

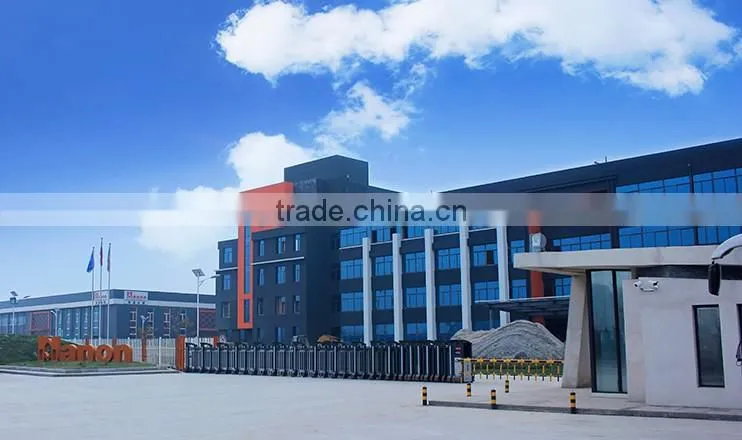

Our Company

Hanon Instruments

We are the professional manufacturer of Analytical instruments in China and focus on Food and Pharmaceutical industry, we are the biggest manufacturer of Kjeldahl Analyzer, Fat Analyzer and Fiber Analyzer in China. We also are the drafter of Kjeldahl method national standard in China.

Product Description

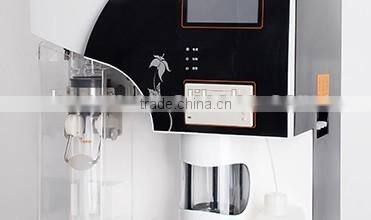

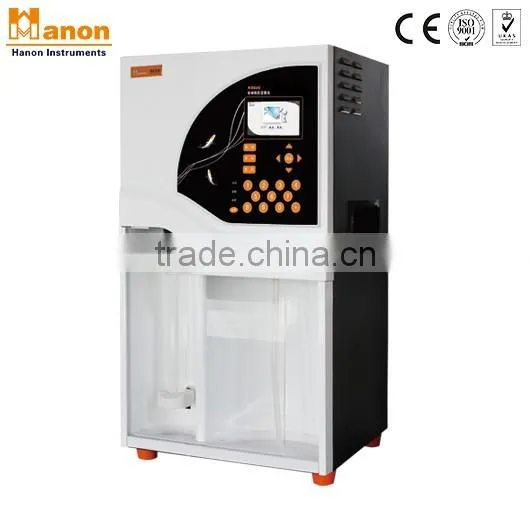

K9860 Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation and high-quality components, can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.


Characteristics:

Automatic distillation, titration, calculation, printing, drain and cleaning function, safety and saving-time.

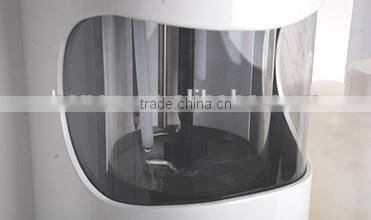

Visible titration cup design gives operator real-time control of the whole test process.


Regent barrel enjoys fluid absence warning function, ensuring smooth test going.


High-precision charging pump and titration system ensure test results accuracy.


Large LCD touch screen gives visual operation and abundant information,enabling user to have a good command of it.


Distilled liquid temperature is detected real time. Emergency stop against temp.

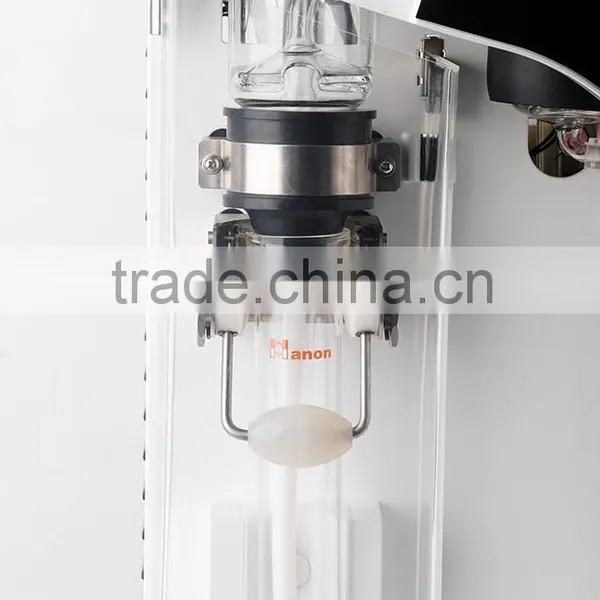

Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.


Printer is built in.


Application

k9860 Kjeldahl Analyzer widely use in determination of Nitrogen or protein in Food, Tobacco, Feed, Environment,Soil, Parmaceutical industry.

Features

Ultra High Accuracy

Ultra High accuracy titration system, up to 2µL/step, guarantee the tiration accuracy and repeatibility.

High Accuracy Dozing and Working

Adopt 4 high quality pumps work for dozing, measurement liquid volume.

Smart Cleaning Functions

Pre-install multi cleaning function, easy for routine maintenance, extend the service life.

Smart Integrated Design

Built in distillation, titration, calculation and printer, full functions.Perfect safety protection system gives distiller and tubes measurement and protection against over-temperature and over-pressure, cooling water control automatically.

Specification
SPECIFICATION
Measuring range
0.1mg ~200mg N
Analysis time
8~10mins / Sample
Reproducibility
Average value relative error ±0.5%
Recovery
≧99.5%
Burette volume
2.0μL/step
Sample capacity
solid≦5g/sample, liquid≦20mL/sample
Water consumption in the distillation process
1.5L/min
Data storage capacity
K9860: 1000 groups
Power supply
220VAC±10%, 50Hz
Power
2Kw
Net weight
38Kg
Dimensions
455mm×391mm×730mm
Certificate
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use      the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Model
Sort
Gross Weight
Dimension

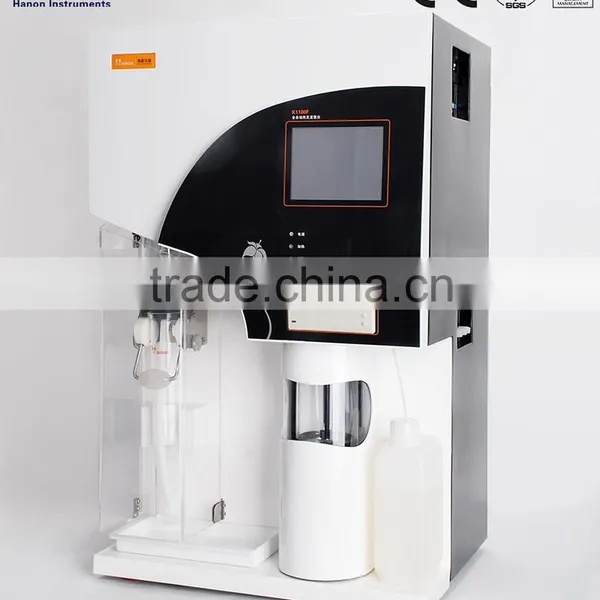

K1100F
Main Unit
53
585×530×910mm
Accessories
13
605×600×355mm

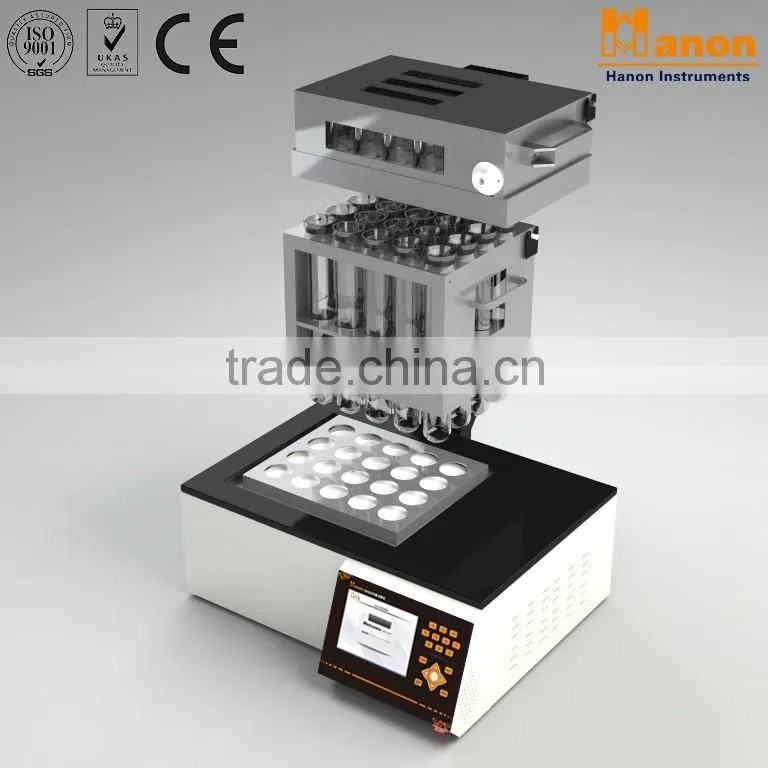

Related Products
