Auto Kjeldahl Distillation Unit

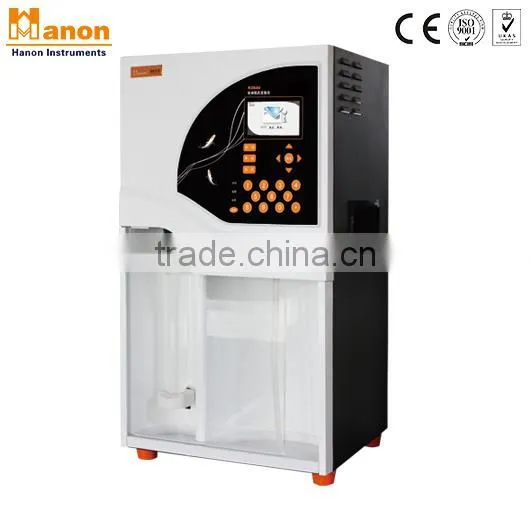

Auto Kjeldahl Distillation Unit photo-1

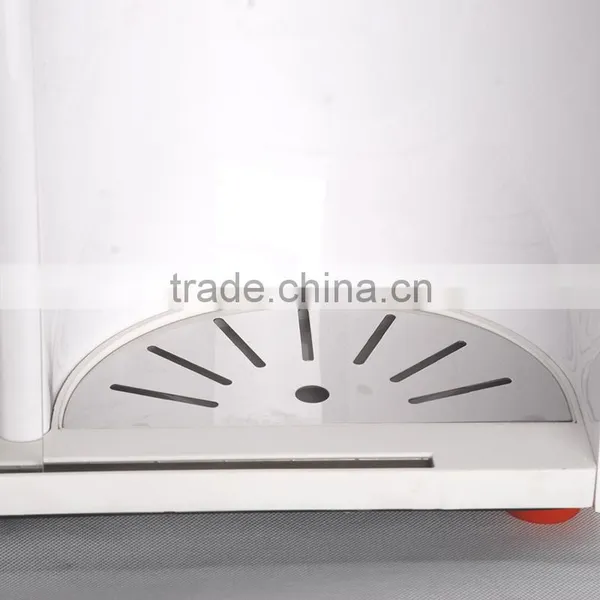

Auto Kjeldahl Distillation Unit photo-2

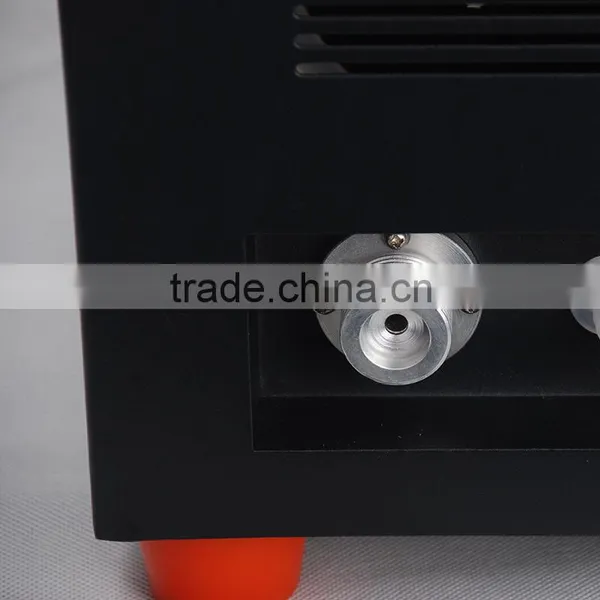

Auto Kjeldahl Distillation Unit photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hanon
Model Number:
K9840
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/GUANGZHOU/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hanon
Model Number K9840
Product Description


Hanon Instruments is the drafter of Kjeldahl method national standard of China. K9840 Auto Distiller adopts globally accepted Kjeldahl nitrogen determination method to determine nitrogen content of sample. All intelligent software design makes the sample distillation complete within minutes. The distillation and condensation automatic cleaning system makes the measurement precision further improved.



Characteristics:

● Display: 4.3" LCD screen.

● Manual/automatic mode fee changeover.

● Automatic alkali liquid quantification and filling.

● Automatic boric solution quantification and filling.

● Automatic or manual filling mode is optional according to test need.

● Distillation time can be set freely, and automatic alarming upon completion.

● Automatic cleaning of control system and distiller, ensuring high measurement accuracy.

● Perfect safety protection system gives distiller and tubes measurement and protection against over-temperature and

   over-pressure.

● Intelligent design of nitrogen tube peripheral facilities include safety designs and displacement hint.

● Intelligent cooling water control system achieves cooling water control and test.

● Emergency stop operation is able to deal with unexpected accidents.

● Automatic fault detection and intelligent audible and visual alarm system are available.


Application

K9840 Kjeldahl Distillation Unit is widely used in food processing, feed production, tobacco, livestock, soil fertility, environmental monitoring, medicine, agriculture, scientific research, teaching, quality control and other fields for the test of nitrogen or protein content, can also be used for the test of ammonia, volatile fatty acid/alkali, and so on.

Specification
Measuring range
0.1mg ~240mg N
Analysis time
3~6min/sample
Reproducibility
Average value relative error ±0.5%
Recovery
≧99.5%
Sample capacity
solid≦5g/sample, liquid≦20mL/sample
Water consumption in distillation process
1.5L/min
Operation mode
Manual/Automatic mode
Power supply
220VAC±10%, 50Hz
Power
1.3Kw
Net weight
30Kg
Dimensions
400mm×385mm×735mm
Features

Efficiency Cost model

High efficiency with low cost, provide automatic function with economic solution.

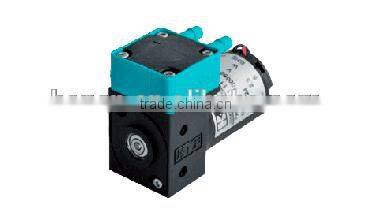

Full Automatic Dosing.

Adding solutions automatically: automatic adding NaOH solution, boric acid solution, distillation water.

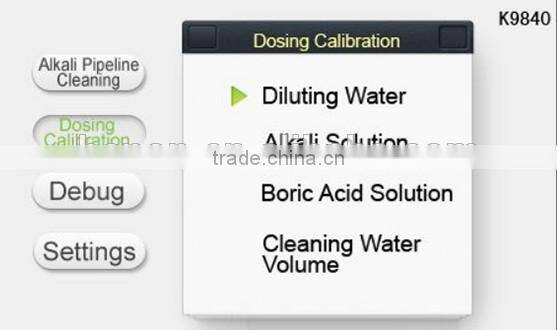

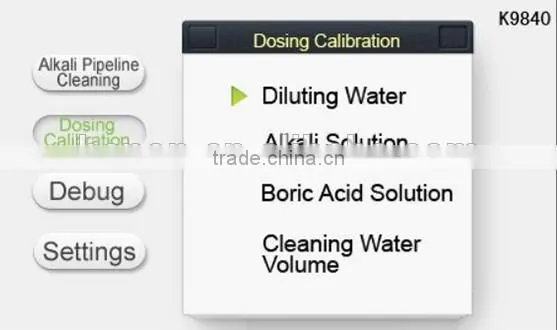

Smart calibration Functions

Pre-install multi dosing cleaning function, easy for calibration and guarantee the result accuracy.

Our Company

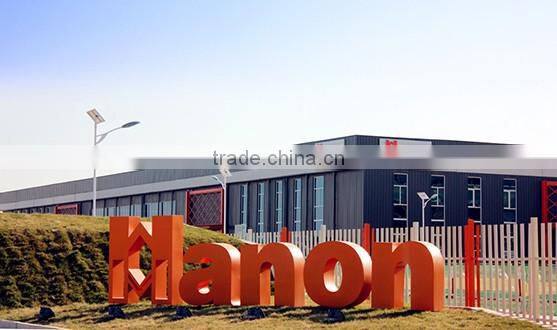

Hanon Instruments

We are the professional manufacturer of Analytical instruments in China and focus on Food and Pharmaceutical industry, we are the biggest manufacturer of Kjeldahl Analyzer, Fat Analyzer and Fiber Analyzer in China. We also are the drafter of Kjeldahl method national standard in China.

Certificate
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use      the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Model
Sort
Gross Weight
Dimension
K9840
Main Unit
45
655×528×880mm
