Help CenterZX18 Series Stainless Steel Resistor
Related Products
-
Neutral Earthing Resistor in Power Distribution EquipmentUS$ 5,000 - 50,000MOQ: 1 Set -
11KV Neutral Grounding ResistorUS$ 5,000 - 50,000MOQ: 1 Set
-
DC Used Load BakUS$ 1,000 - 10,000MOQ: 1 Set
-
Low Voltage AC Load BankUS$ 10,000 - 80,000MOQ: 1 Set
-
2000KW Load Bank for GeneratorUS$ 30,000 - 80,000MOQ: 1 Set
Shanghai Lingguang Electric Apparatus Manfacturing Co.,LTD (Lingo)established in 1991.
Professional industrial electrical products -- resistance box, load box, center grounding resistance, manufacturers in domestic resistor manufacturing enterprises have higher visibility.
With nearly 150 employees, scientific and technical force is abundant, has many national patents (Example: ZX18V type resistors, patent number 03230790).
Had including CNC plate shears, CNC folding machine, CNC punching, more than 60 sets of large-scale processing equipment.
Enterprise through IS09001 quality system, ISO14001.2004 environmental management system and GB/T2800-2001 worker health and safety management system.
LINGO widely used in steel, electric power, ship, railway, electronics, and etc, the products have been exported to Japan, France, Germany, Egypt, etc.

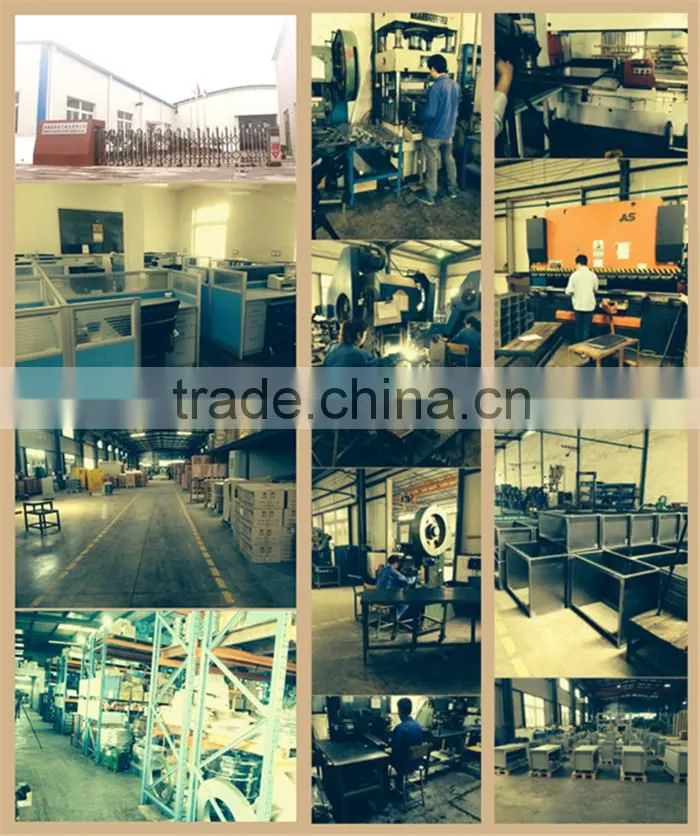

LINGO is located in Shanghai PuDong new area, has a total area of about 9,000 square meters workshops, warehouses and office center.
Excellent ability of research development
The advanced production processing equipment
Complete production assembly processing capacity
Perfect quality guarantee system
Quickly logistic support capacity
Timely and efficient service response
Enterprising management team
With first-class product quality to win the trust of customers
With first-class marketing quality to win the confidence of users
With first-class service quality to win the satisfaction of customers
Product application:
As starting,regulating and braking for crane in Mining,metallurgy,chemical industry,building,port system,wind power and so on.As testing equipment for power,current,voltage ,frequency,teperature rise for transformer and generator in generator manufacturing and transformer manufacturing.Alsocan as load testing equipment for railway,power or communication station and as resistor in high voltage neutral grounding resistor and other new application.
Operation environment:
Max.Temperature:+40°c
Min.Temperature:-25°c
Air Relatve Moisture:90%
Below 2000m above sea level
Manufactured in accord with IEC947-4-1,our factory's standard Q/DCFA1-2000 and JB6319 "Basic Requirements of Resistor".
Operation conditions:
Resistors can be stacked in use.In order not to reduce its capacity ,if there are not more than 4 pieces,they can be stacked .If there are 5-6 pieces,stere should be a piece of no less than 150mm from the resistor bottom to the ground.
Technical properties:

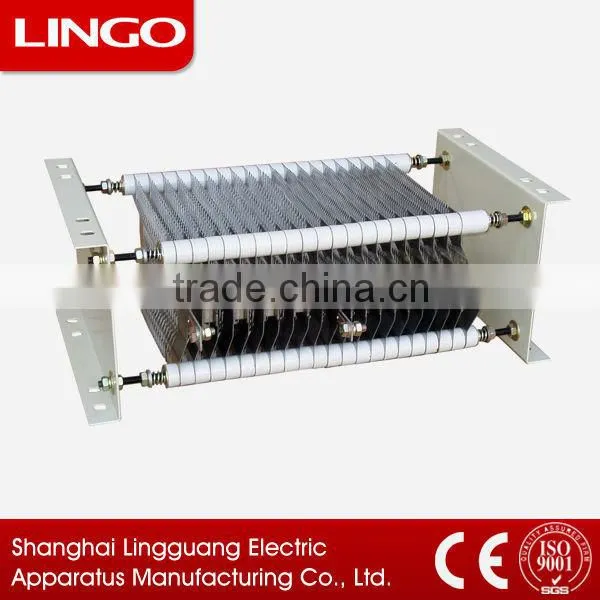

ZX18 series resistors are safe ,reliable ,anti-corrosive ,stable ,and have a large capacity ,no induction,no contact resistance.they can be used to replace old type resistors and are suitable to be used in winding type motors.
| No. | type | rated curent | total resistance | of each shift | resistor components | |||||
| 1 | 2 | 3 | 4 | 5 | type | quant | ||||
| 1 | zx18L-0.18 | 237 | 0.18 | 0.04 | 0.04 | 0.04 | 0.03 | 0.03 | zc3-1-1 | 36 |
| 2 | zx18L-0.252 | 200 | 0.252 | 0.056 | 0.056 | 0.056 | 0.042 | 0.042 | zc3-1-2 | |
| 3 | zx18L-0.36 | 167 | 0.36 | 0.08 | 0.08 | 0.08 | 0.06 | 0.06 | zc3-1-3 | |
| 4 | zx18L-0.504 | 141 | 0.504 | 0.112 | 0.112 | 0.112 | 0.084 | 0.084 | zc3-1-4 | |
| 5 | zx18L-0.72 | 118 | 0.72 | 0.16 | 0.16 | 0.16 | 0.12 | 0.12 | zc3-1-5 | |
| 6 | zx18L-1.008 | 100 | 1.008 | 0.224 | 0.224 | 0.224 | 0.168 | 0.168 | zc3-1-6 | |
| 7 | zx18L-1.44 | 84 | 1.44 | 0.32 | 0.32 | 0.32 | 0.24 | 0.24 | zc3-1-7 | |
| 8 | zx18L-1.98 | 71 | 1.98 | 0.44 | 0.44 | 0.44 | 0.33 | 0.33 | zc3-1-8 | |
| 9 | zx18L-2.88 | 59 | 2.88 | 0.64 | 0.64 | 0.64 | 0.48 | 0.48 | zc3-1-9 | |
| 10 | zx18L-3.96 | 50 | 3.96 | 0.88 | 0.88 | 0.88 | 0.66 | 0.66 | zc3-2-1 | |
| 11 | zx18L-5.4 | 43 | 5.4 | 1.20 | 1.20 | 1.20 | 0.90 | 0.90 | zc3-2-2 | |
| 12 | zx18L-7.56 | 37 | 7.56 | 1.68 | 1.68 | 1.68 | 1.26 | 1.26 | zc3-2-3 | |
| 13 | zx18L-10.08 | 32 | 10.08 | 2.24 | 2.24 | 2.24 | 1.68 | 1.68 | zc3-2-4 | |
| 14 | zx18L-14.4 | 27 | 14.4 | 3.20 | 3.20 | 3.20 | 2.40 | 2.40 | zc3-2-5 | |
| 15 | zx18L-20.16 | 22 | 20.16 | 4.48 | 4.48 | 4.48 | 3.36 | 3.36 | zc3-2-6 | |
| 16 | zx18L-28.8 | 19 | 28.8 | 6.4 | 6.4 | 6.4 | 4.8 | 4.8 | zc3-2-7 | |
| 17 | zx18L-3.6 | 53 | 3.6 | 0.8 | 0.8 | 0.8 | 0.6 | 0.6 | zc3-3-1 | |
| 18 | zx18L-4.5 | 47 | 4.5 | 1.00 | 1.00 | 1.00 | 0.75 | 0.75 | zc3-3-2 | |
| 19 | zx18L-5.94 | 41 | 5.94 | 1.32 | 1.32 | 1.32 | 0.99 | 0.99 | zc3-3-3 | |
| 20 | zx18L-7.2 | 37 | 7.2 | 1.60 | 1.60 | 1.60 | 1.20 | 1.20 | zc3-3-4 | |
| 21 | zx18L-9 | 34 | 9.0 | 2.00 | 2.00 | 2.00 | 1.50 | 1.50 | zc3-3-5 | |
| 22 | zx18L-11.88 | 29 | 11.88 | 2.64 | 2.64 | 2.64 | 1.98 | 1.98 | zc3-3-6 | |
| 23 | zx18L-12.6 | 28 | 12.6 | 2.8 | 2.8 | 2.8 | 2.1 | 2.1 | zc3-3-7 | |
| 24 | zx18L-16.2 | 25 | 16.2 | 3.6 | 3.6 | 3.6 | 2.7 | 2.7 | zc3-3-8 | |
| 25 | zx18L-19.8 | 23 | 19.8 | 4.4 | 4.4 | 4.4 | 3.3 | 3.3 | zc3-3-9 | |
| 26 | zx18L-26.1 | 20 | 26.1 | 5.8 | 5.8 | 5.8 | 4.35 | 4.35 | zc3-3-10 | |
| 27 | zx18L-35.1 | 17 | 35.1 | 7.8 | 7.8 | 7.8 | 5.85 | 5.85 | zc3-3-11 | |
| 28 | zx18L-50.4 | 14 | 50.4 | 11.2 | 11.2 | 11.2 | 8.4 | 8.4 | zc3-3-12 | |
| 29 | zx18L-63 | 13 | 63 | 14 | 14 | 14 | 10.5 | 10.5 | zc3-3-13 | |
| 30 | zx18L-79.2 | 11 | 79.2 | 17.6 | 17.6 | 17.6 | 13.2 | 13.2 | zc3-3-14 | |
| 31 | zx18L-104.4 | 9.8 | 104.4 | 23.2 | 23.2 | 23.2 | 17.4 | 17.4 | zc3-3-15 | |
| 32 | zx18L-144 | 8.4 | 144 | 32 | 32 | 32 | 24 | 24 | zc3-3-16 | |
