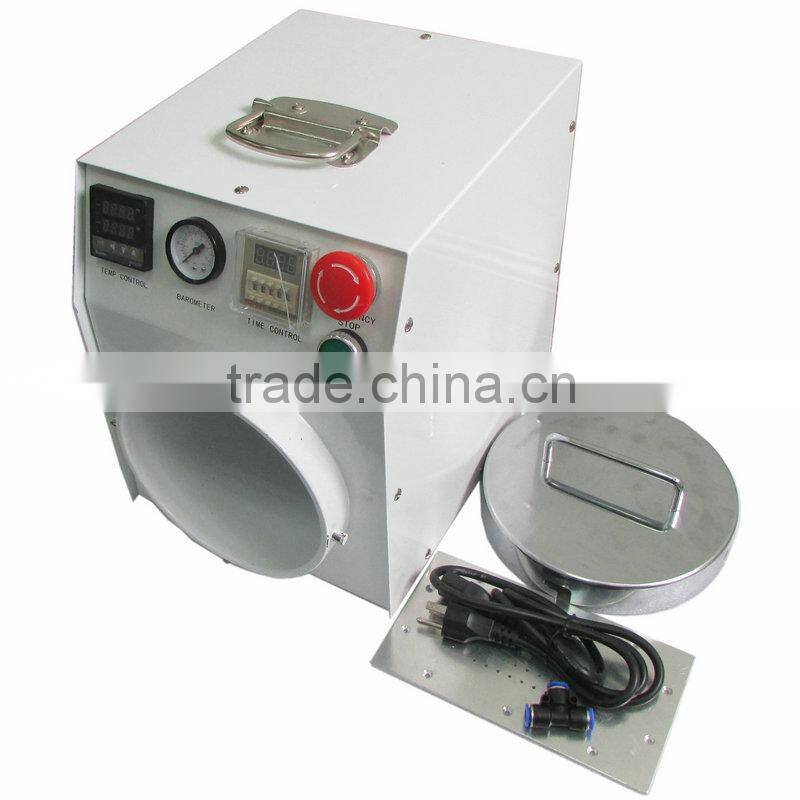

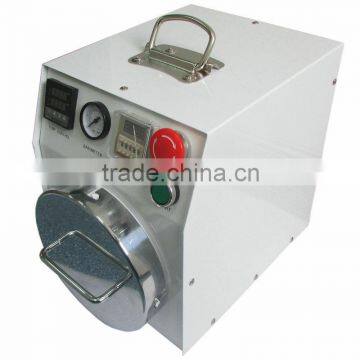

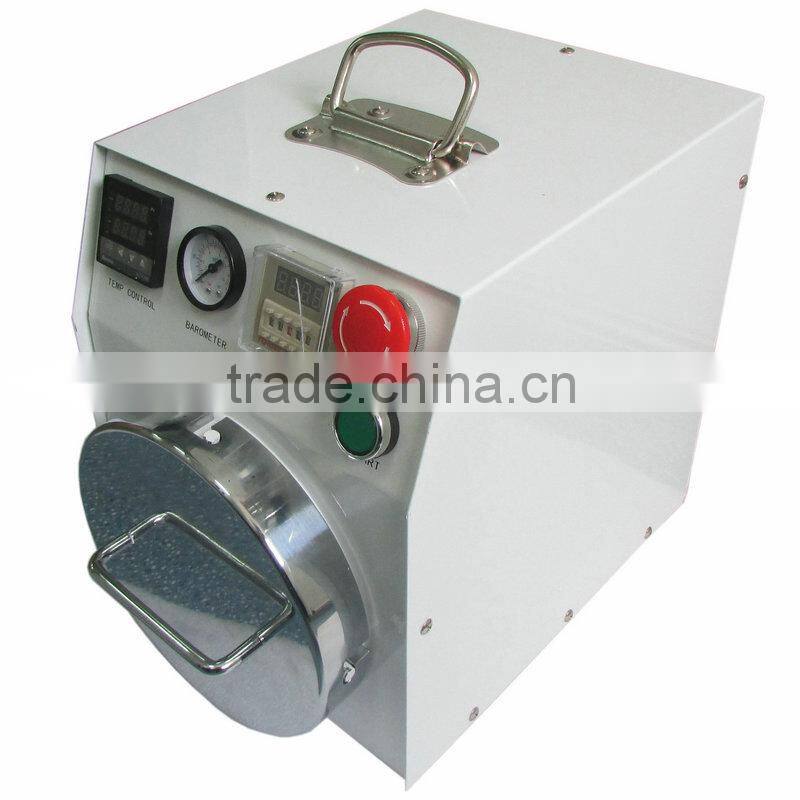

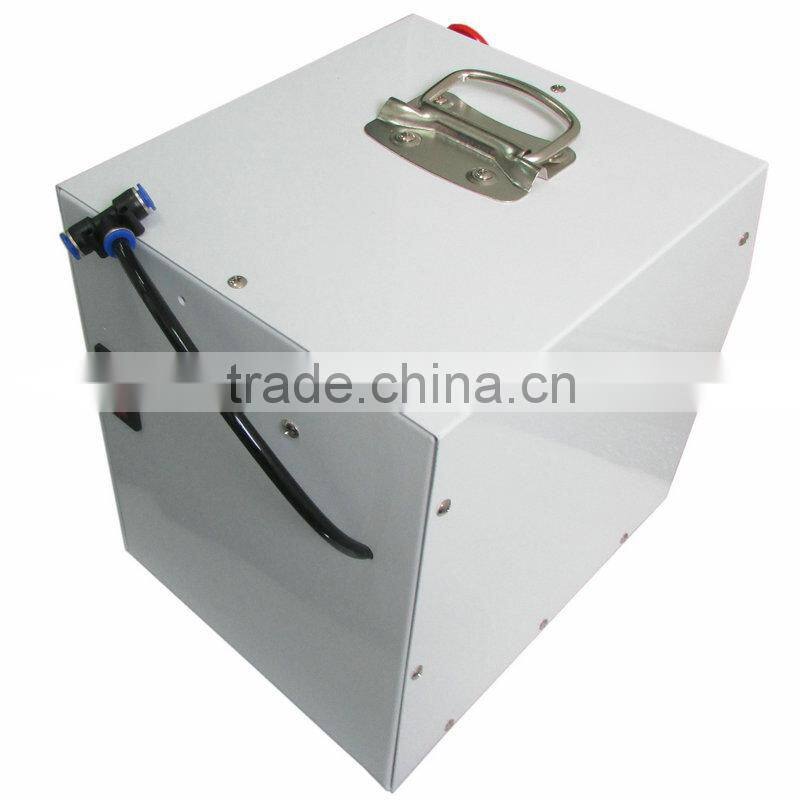

Mini Air Bubble Removing Machine
1) Best quality and customized for air bubble removing machine of LCD refurbishment
2) Applicable to eliminate the capacitive touch screen, resistive screen, LCD module production process generated by the bubbles
3) Using of pressure and temperature to remove air bubbles generated in the bonding process, this program will enhance the adhesion force between different material
4) Small volume, covers an area of less, deaeration effect is good, convenient and practical use
5) Temperature, time, pressure can be set up
6) It is suitable for 2.8-7 inch panels. Work Pressure: 0.1-0.8MPa
7) Machine adopted SMC pneumatic components, ensure its long service life
8) Main body(Cylinder)

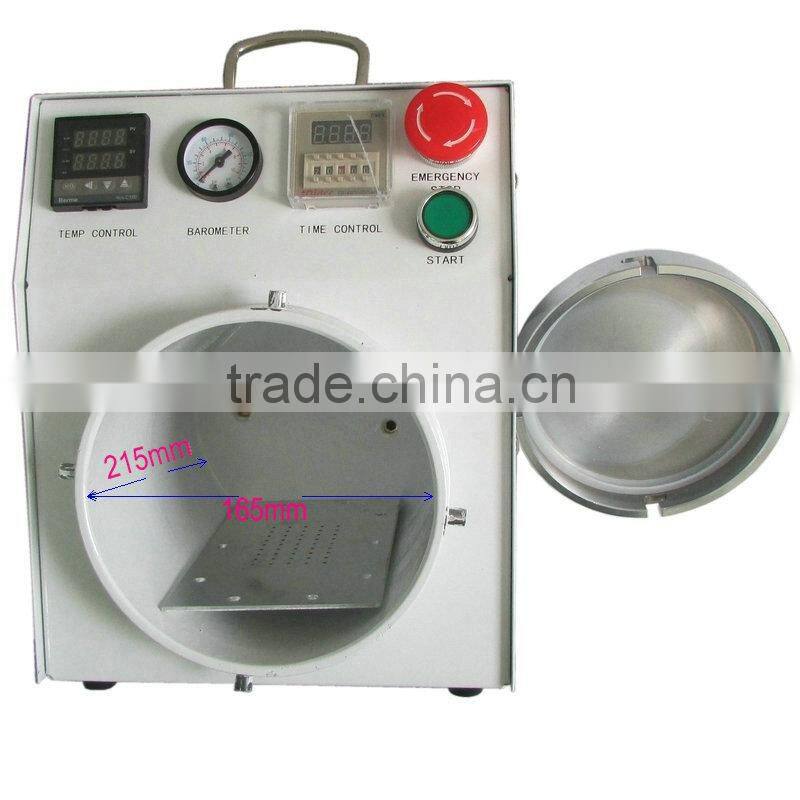

size: 165mm×215mm(diameter * length)
Material: SUS202 stainless steel
Working pressure: 0.1-0.65Mpa
Testing pressure: 0.8Mpa
The display of pressure: pointer. Unit: Mpa
9) Heating system
Heating method: constant temperature
Heat carrier: fever laps
Thermostat: high-precision RKC PID control
Suing temperature: 0-80°C
10)Pressure rising system
Air requirements: dry
Pipe diameter: 8mm
Adjustable range: 0.1-0.65Mpa
Precision: 0.05 Mpa
11)Net Weight: 17.3kg
Gross Weight: 19.30kg

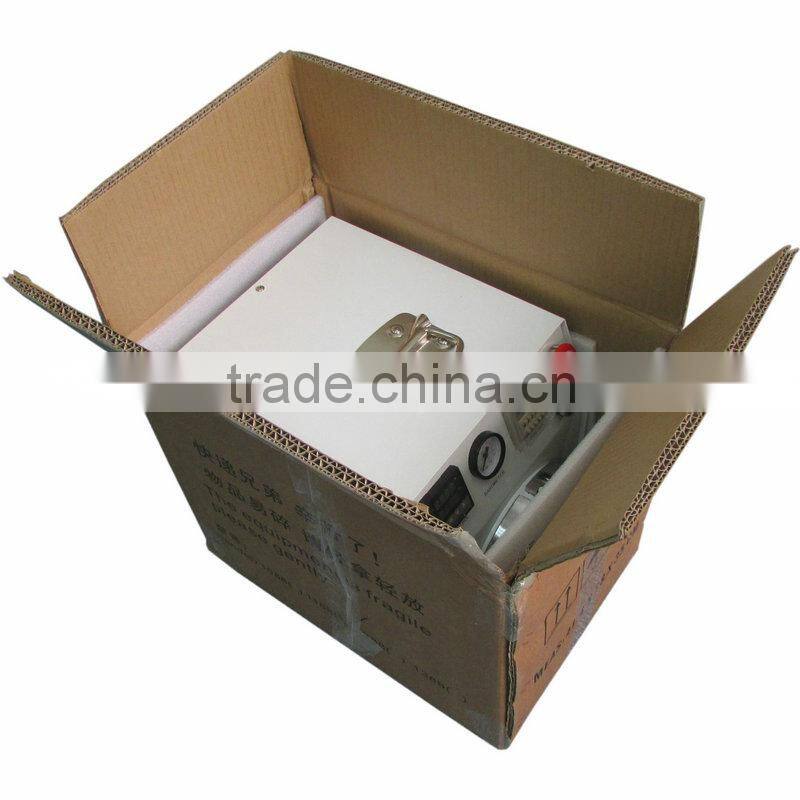

Carton Size: 43x30x38cm
Compatible with:
Apple: iPhone 6 , iPhone 5S , iPhone 5C , iPod touch 5th , iPhone 5 , iPhone 4S , iPod touch 4 , iPod nano 6 , iPhone 4 , iPod shuffle 3 , iPod nano 3
Samsung: Galaxy S5 mini / G800 , Galaxy Core II / SM-G355H , Galaxy S5 / G900 , Galaxy Note III / N9000 , Galaxy Ace 4 / S7272 , Galaxy S IV mini / i9190 / i9192 , Galaxy Tab 3 7.0 / P3200 , Galaxy S IV / i9500 , Galaxy Xcover2 / S7710
OEM are Welcome! we can print customer's artwork and logo
