Competitive Price S-100-24 Switching Power Supply, AC DC Power Supply With CE Certificate

FOB Price

US$ 10.78 - 20.93 / Piece

1 Piece(Min. Order)

Port Ningbo Shanghai Shenzhen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	OMKQN
Model Number	S-100-24	Output Power	Other, 100w
Output Type	Single	Input Voltage	Other, 110V/220V
Output Voltage	24V	Output Frequency	47-63HZ
Output Current	4.5A

Product Description

Welcome,my friend! Glad to introduce Competitive price S-100-24 Switching power supply, AC DC power supply with CE certificate and our company Hugong Group to you. If you have any questions, please don't hesitate to ask me.

Product Description

Specification of Competitive price S-100-24 Switching power supply, AC DC power supply with CE certificate

Model	S-100-5	S-100-7.5	S-100-12	S-100-15	S-100-24	S-100-48
Specification	S-100-5	S-100-7.5	S-100-12	S-100-15	S-100-24	S-100-48
DC Output voltage	5V	7.5V	12V	15V	24V	48V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%	±1%	±1%
Rated output current	20A	13.6A	8.5A	6.7A	4.5A	2A
Output current range	0~20A	0~13.6A	0~8.5A	0~6.7A	0~4.5A	0~2A
Wave and noise(Note:3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%
Load stability(Note:5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%
DC output power	100W	102W	102W	100.5W	108W	96W
Efficiency	78%	80%	81%	81%	84%	84%
Adjustable range for DC voltage	4.75~5.5V	6.75~8.25V	10.8~13.2V	13.5~16.5V	21.6~26.4V	43.2~52.8V
AC input voltage range	85~132VAC/180~264VAC selected by switch 47~63Hz,255~370VDC
Input current	2.4A/115V 1.2A/230V
AC Inrush current	Cold-start current 15A/115V 30A/230V
Leakage current	<1mA/240VAC
Overload protection	105 ~ 150% Protection type :pulsing hiccup shutdown Reset: auto recovery.
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C(Refer to output load derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	*199X98X38mm (LWH)*
Weight	0.65kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
EMC standards	Meet FCC PART15 J Conduction class B
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.
	2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).
	3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
	4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.
	5. Load stability test: The load is from 0% to 100%.

Output voltage can be specified by the customer

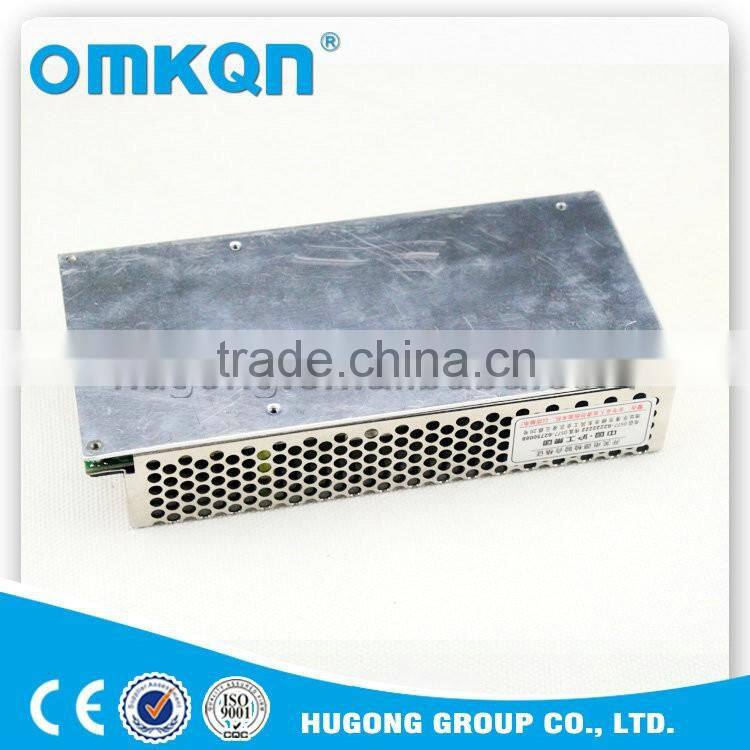

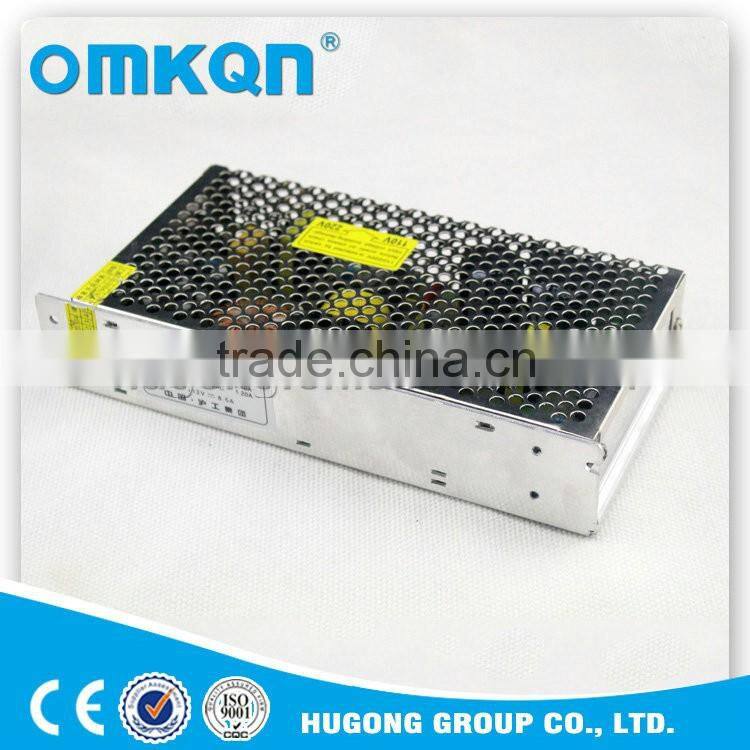

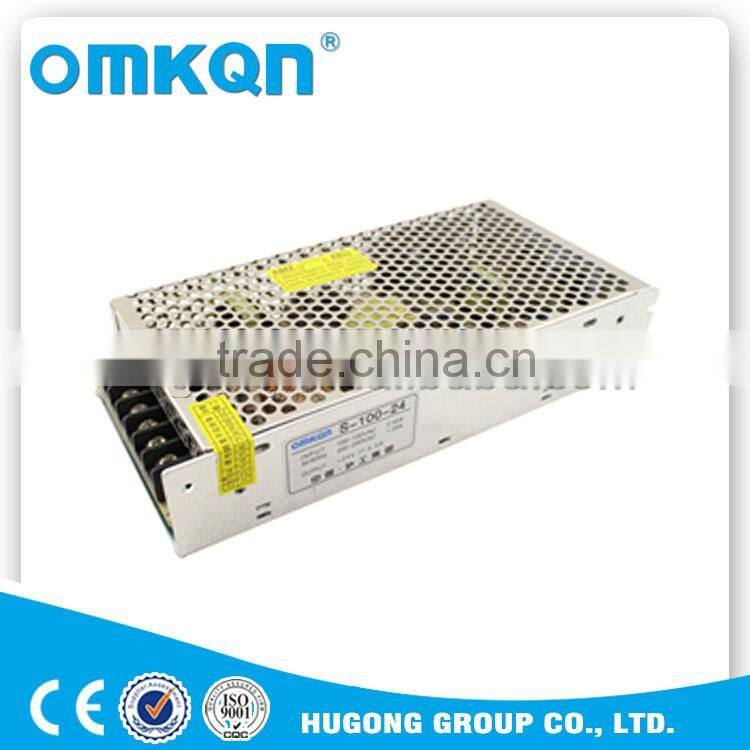

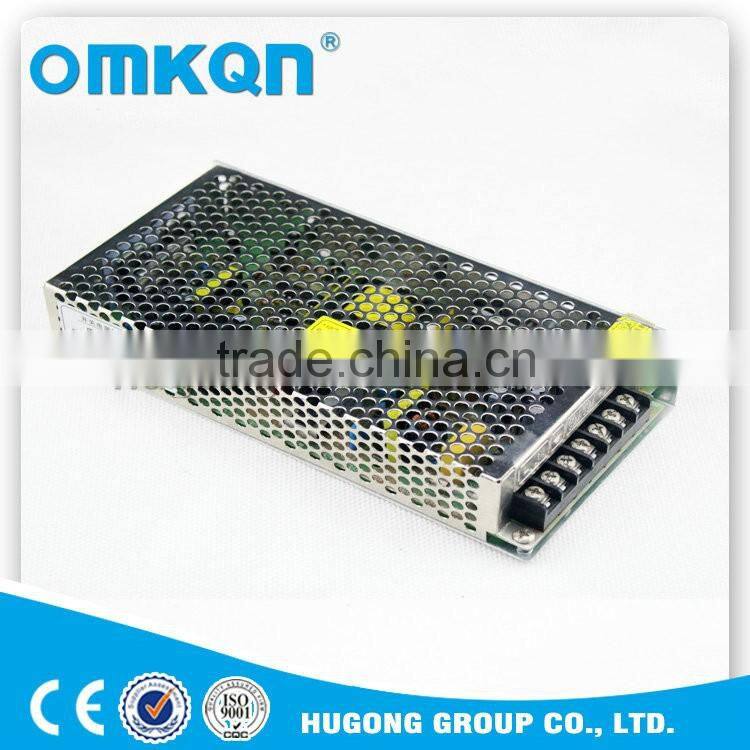

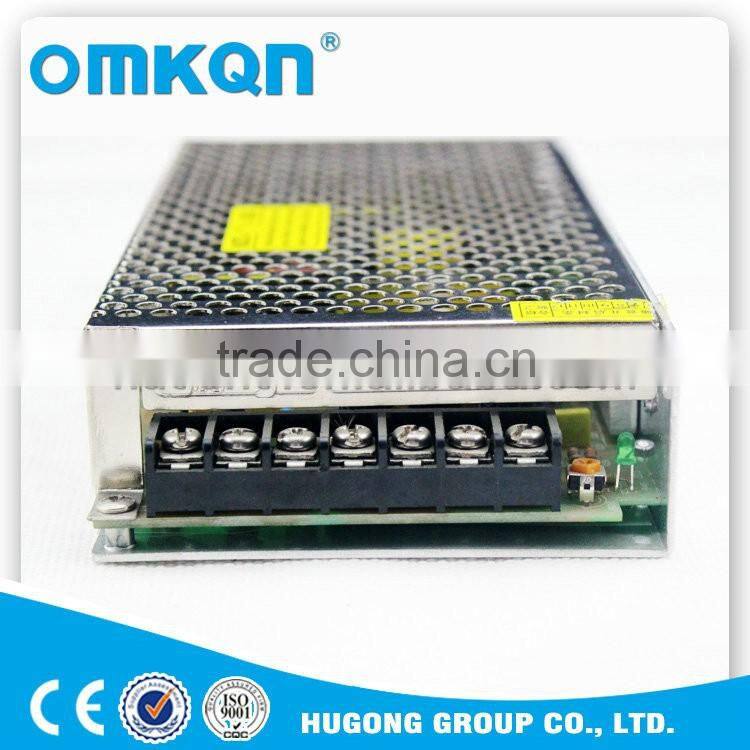

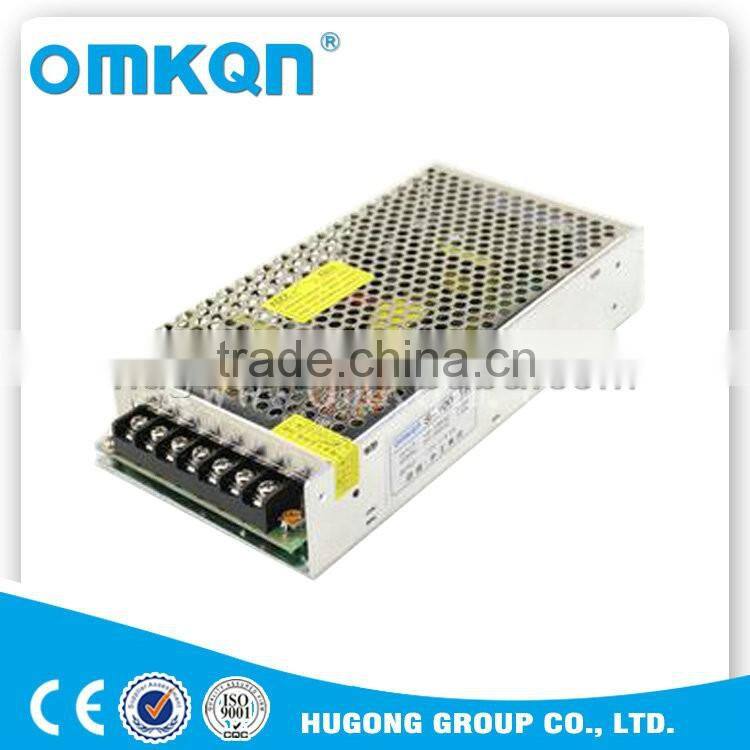

Product Pictures

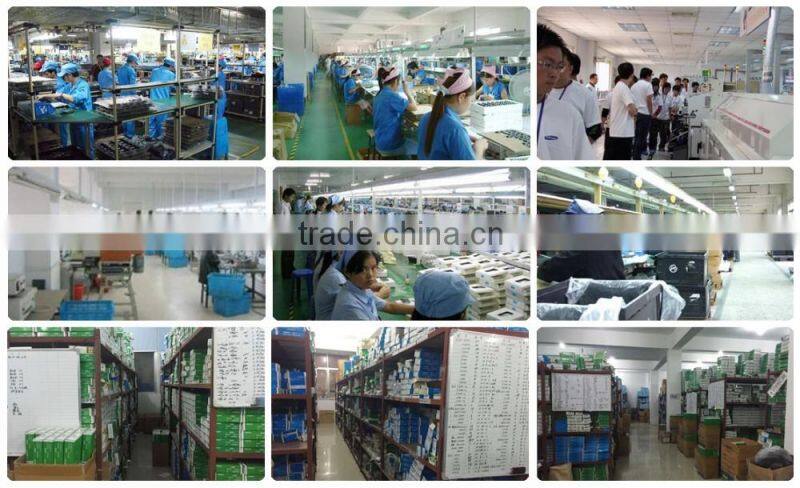

Production Process
