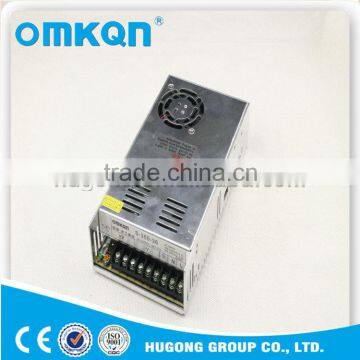

Latest chinese product S-350-5 42.5w medical switching power supply

FOB Price

USD $17.99 - $27.67 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Ningbo Shanghai Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	OMKQN	Model Number:	S-350-5
Output Power:	Other, 250W	Output Type:	Single	Input Voltage:	Other, 85-132VAC/170-264VAC
Output Voltage:	5V	Output Frequency:	47-63HZ	Output Current:	50A

Product Description

Welcome,my friend! Glad to introduce our company Hugong Group to you.
Our company produce proximity Sensor, magnetic sensor,position sensor,
infrared sensor,photoelectric sensor,switching power supply and etc.
If you have any questions, please don't hesitate to ask me.

Product Description

The specification of our Newest Products.

Model	S-350 -5	S-350 -7.5	S-350 -12	S-350 -13.5	S-350 -15	S-350 -24	S-350 -27	S-350 -48
Specification	S-350 -5	S-350 -7.5	S-350 -12	S-350 -13.5	S-350 -15	S-350 -24	S-350 -27	S-350 -48
DC Output voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	40A	29A	25.8A	23.2A	14.6A	13A	7.3A
Output current range	0-50A	0-40A	0-29A	0-25.8A	0-23.2A	0-14.6A	0-13A	0-7.3A
Wave and noise(Note:3)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	250W	300W	348W	348.3W	348W	350.4W	351W	350.4W
Efficiency	74%	76%	74%	79%	78%	82%	82%	83%
Adjustable range for DC voltage	4.5-5.6V	6-9V	10-13.2V	12-15V	13.5-18V	20-26.4V	26-32V	41-56V
Overvoltage protection	5.75-6.75V	9.4-10.9V	13.8-16.2V	15.5-18.2V	18-21V	27.6-32.4V	33.7-39.2V	57.6-67.2V
AC input voltage range	90-132VAC / 180-264VAC selected by switch 47-63Hz; 254-370VDC
Input current	6.5A/115V 4A/230V
AC Inrush current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload	105% -150% Type: current limiting reset: auto recovery
High temperature protection	ERH3> = 65-70 ℃ fan starts, <= 55-60 ℃ fan off,> = 80-85 ℃, cut off the output (5-15V) - (24-48V)
Temperature Coefficient	±0.03%/℃ (0-50℃)
Start, rise, holding time	200ms,100ms,20ms
Shock resistance	10-500Hz, 2G 10min, / 1 cycle, period for 60 minutes each axis
Pressure resistance	Between input and output: 1.5KvAC Input and enclosure: 1.5KvAC Output and enclosure: 0.5KvAC
Isolation resistance	Between input and output, input and enclosure, Output and enclosure: 500VDC / 100MΩ
Temperature, humidity	-10 ℃ - + 60 ℃ (reference output characteristic diagram), 20% -90% RH
Storage temperature and humidity	-20℃-+85℃,10%-95%RH
Dimensions	21511550mm
Weight	1.15Kgs
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.
	2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).
	3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
	4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.
	5. Load stability test: The load is from 0% to 100%.

Output voltage can be specified by the customer
