1. Shenzhen RGX main product
outdoor led display and indoor led display:
advertising led display, rental led display, stage background led display,curtain led display,perimeter led screen,mobile led display, taxi top led display,scoreboard led display
2.Application
plaza,leisure square,station, entertainment square,commercial center, banks,scools,hospitals,hotel,government.
3.Export markets
North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
4.Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Good quality+Reasonable price+Responsible After-Sales Service=Successful & Win
Unit Module |
Item: |
RGX outdoor led display Parameter |
Model: |
P8mm Full color outdoor led Module |
|
Pixel Pitch: |
8 mm |
|
Pixel configuration: |
1R1G1B 3in1 DIP |
|
Module Size: |
256mm * 128mm |
|
Module Resolution: |
32dots(W) * 16dots(H) |
|
Module Thickness: |
28mm |
|
Module Weight: |
0.55 KG |
|
LED type: |
SDM3535 3in1 |
|
Max Power: |
23W |
|
Pixel Density: |
15625 dots / SQM |
|
Driving Method: |
Constant Current Driving |
|
Scan Method: |
1/4 Scan |
|
Interface Way: |
HUB 75 B |
|
Brightness: |
≥ 6500CD /SQM |
|
Unit Cabinet |
Cabinet Size: |
768mm * 768mm (Support Customize) |
Cabinet Composing: |
18 pcs |
|
Power Supply Mode: |
5V/40A 5V/60A |
|
Cabinet Resolution: |
96dots * 96dots |
|
Optimal Viewing Distance: |
8-120M (according to the big screen size) |
|
Optimal Viewing Angle: |
Horizontal angle: 160 degree; Vertical angle: 90 degree |
|
Environment Temperature: |
Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree |
|
Relative Humidity: |
10% ~ 95% |
|
Power |
Operating Voltage: |
AC:100V~120V AC:220~240V |
Average Power: |
300W/ SQM |
|
Max Power Consumption: |
≤ 600W |
|
Current: |
≤ 20mA (single LED) |
|
Control System |
Computer: |
Pentium4 or above P4 or above |
Operate System: |
Win98/2000/NT/XP |
|
Control Mode: |
Synchronization with PC |
|
|
Main Technical Parameter |
Driving Device: |
IC Constant Current Driving |
Refresh Rate: |
≥ 600Hz |
|
Gray/Color: |
RGB each 256 grade, can display 16.7color |
|
MTPF: |
≥ 9000hours |
|
Power Switch: |
Automatic Switch |
|
Display Mode: |
800*6001024*7681280*960 |

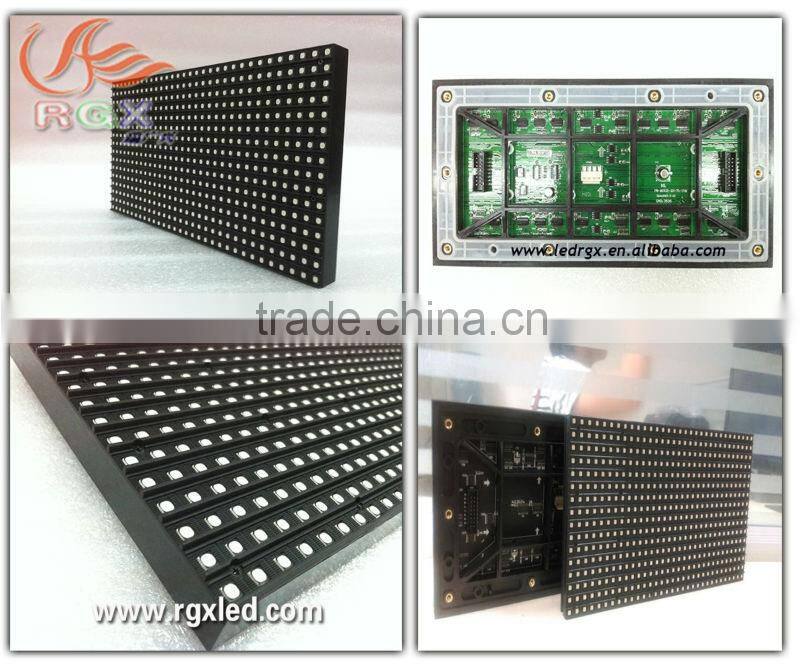

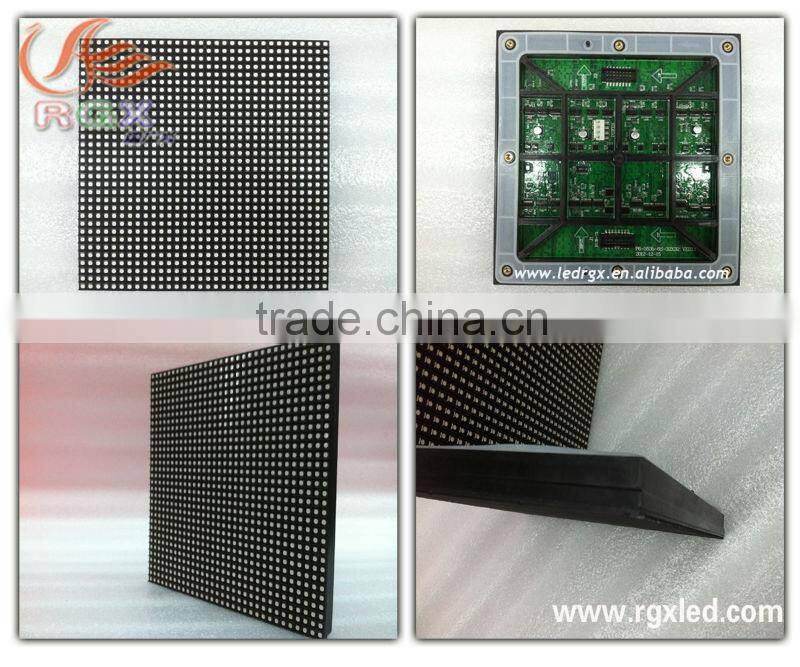

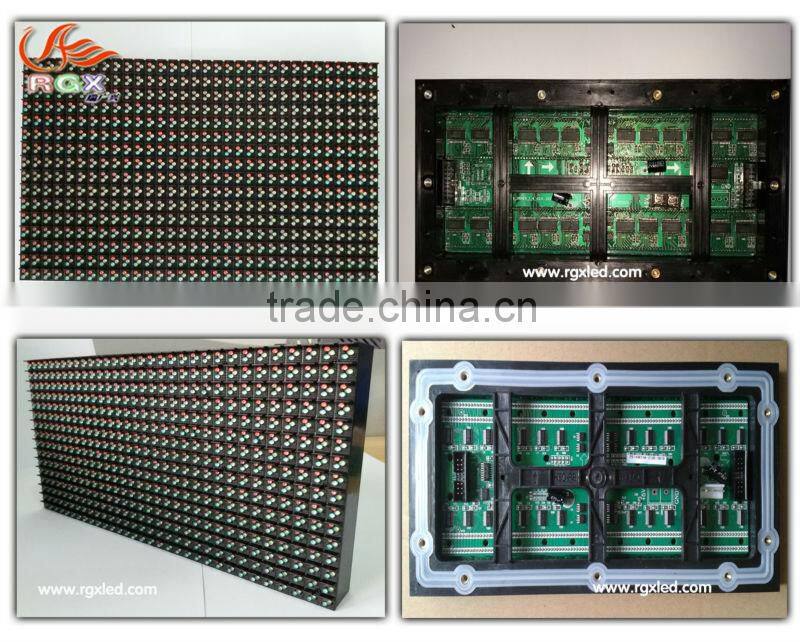

RGX P8mm Outdoor Full color LED Module display screen
RGX P8mm outdoor rental led display screen, led rental billboard, led rental led Tv
RGX p8 outdoor LED display,full color advertising led display

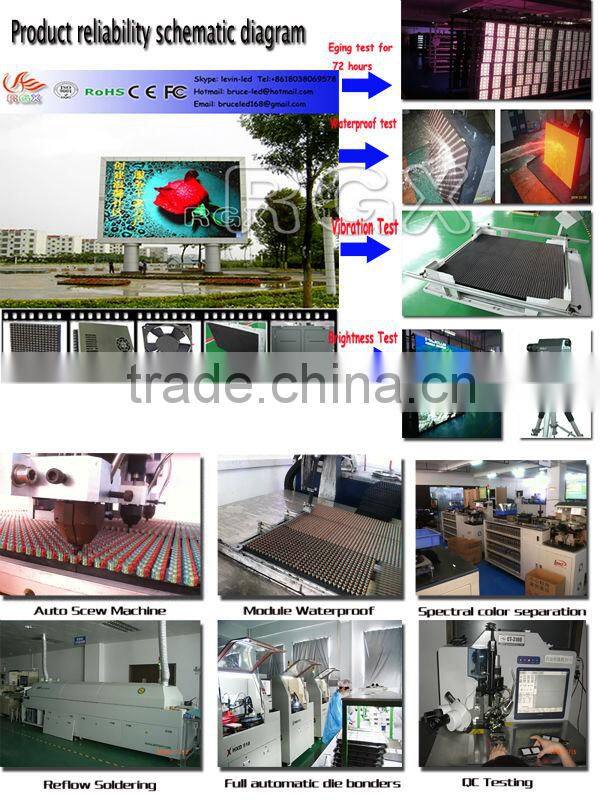

5: Test: Each producing step of P8mm full color led display we have strict test.
6: RGX Certification:
7.Packing diagram
8: RGX led display screen system:
10: Tech. Support:
11: Our Advantage:
1) Professional manufacturer
2) Exquisite quality
A: ISO 9000 and 5S management system
B: Each procedure have special machine and QC to supervise and check
C: From the material purchasing, all have the special Equipment to stakeout
3) Perfect service
A: 2-3years guarantee with free charge, maintain in all life
B: Free training in our company or guide installation and train in customer country or on lone training by long- distance control in internet( you could send your colleagues who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair)
In the end, thank very much for you time, and wish you have good business in your life.
