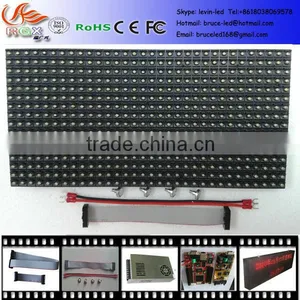

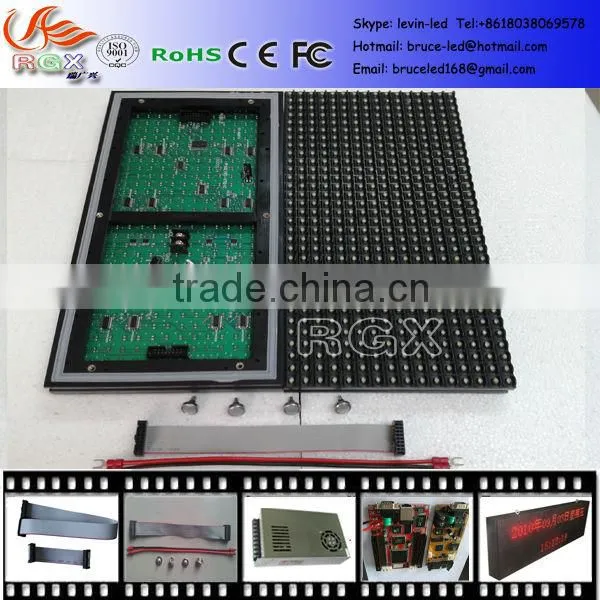

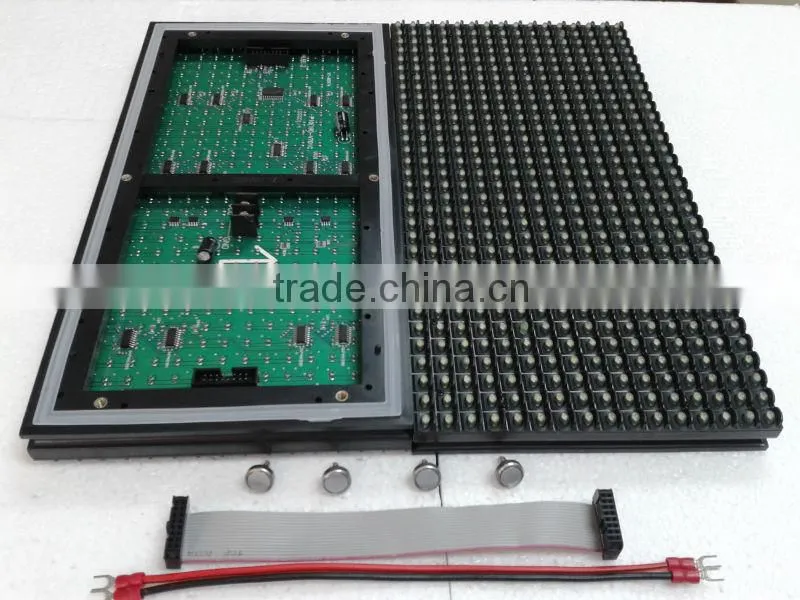

RGX P10 White color led module

Specifications

P10mm outdoor white led module
1 Outdoor white led module
2 Warranty:2 years
3 2800CD/ m2







Module  parameter	Model:	P10mm
	Working environment:	For Outdoor
	Waterproof Level:	Front IP65
	Pixel Configuration:	1 White
	LED encapsulation:	DIP 546
	LED lifetime:	100,000 hours
	Pixel Density:	10000 pixels/ SQM
	Brightness:	2800 CD/SQM
	Pixel Pitch:	10 mm
	Module Resolution:	32*16 pixels
	Interface Way:	HUB12
	Drive mode:	Constant current driver, 1/4 duty
	Viewing Angle:	Horizontal angle: 120 degree; Vertical angle: 60 degree
	Best Viewing Distance:	> 5m
Module Detail	Module Dimension:	320mm * 160 mm
	Module Thickness:	25mm
	Module weight:	0.75KG
	Module Spare parts:	1: Power cable, 2: Flat cable: 3:Waterproof rubber gasket

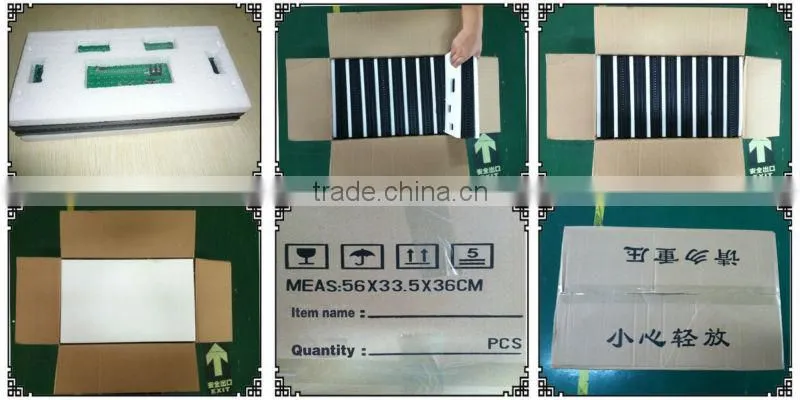

	Pack detail:	36Pcs/Carton   27KG/Carton
	Pack Size:	56CM * 33.5CM *36CM
	Environment Temperature	Storage:  -35 Degree~ +85 Degree Work:    -20 Degree ~ +60 Degree
	Control System	Asynchronization system
Power Supply	module consumption	18W/ Pc
	Operating Voltage	AC220V or AC110V
	Average Consumption:	50-120 W/SQM
	Max Consumption:	350 W/SQM
After  Sales	Warrenty :	2 Years
	Technical Support:	Free train
	Contact: Bruce Mobile Phone: 0086 180 380 69578 Skype: levin-led

















 4   RGX Outdoor LED Display module Quality Control

                                                               (all outdoor module test the same steps)





5   Compare other company's modules,  please checking follow details:











If you need more information or price please contact our sales department, skype: levin-led  thanks



Product of P10mm outdoor single color led module function introduction:
1.       The measurement can meet customers request, according to application environment.
2.       Can display different languages, for example: Chinese, English, Arabic, Spanish, Japanese etc.
3.       Flexible display effect, like rolling, moving, photos, etc.



4.       Easily disassembled into modules and stacked for transportation.



8: Our Advantage:

1)     Professional manufacturer

2)     Exquisite quality

       A:       ISO 9000 and 5S management system

       B:       Each procedure have special machine and QC to supervise and check

       C:       From the material purchasing, all have the special Equipment to stakeout

3)     Perfect service

         A:      2-3years guarantee with free charge, maintain in all life

         B:      Free training in our company or guide installation and train in customer country or on lone training by long-    distance control in internet( you could send your colleagues who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair)

 In the end, thank very much for you time, and wish you have  good business in your life.
