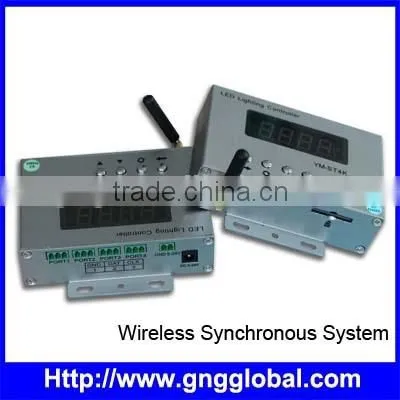

rgb led tube remote control DMX wireless reveiver with master controller.
1.rgb led controller with sd card, Brightness is adjustable,
grammable led controller, led controller system(wireless),
3.4 output ports,can control 4x1024 pixels,
4.DC5V-24V,
5.DMX512 compatible, RF wireless synchronous.
Composition:
This led controller is composed of two parts:
1. Single LED controller(YM-ST4K-B)-- provide 4 ports for data output, each port can control 1024 pixels, so totally it can control 4*1024= 4,096pixels.
2. Lighting control software- install you computer, edit the display effects or video you want, transfer them to SD card, and then playback in controllers.(only support Windows OS, not support MAC system)
Specification and Parameter:
Load Capacity |
4*1,024=4,096pixels |
Grayscales |
256levels R,G,B each channel |
Input Voltage |
DC5V-24V |
Power Consumption |
5W |
Software |
LED Lighting Control |
Size |
115*100*34mm |
Temperature |
-40C°--70C° |
Control IC |
LPD1882,LPD1889,LPD6812,UCS1903,UCS1909,UCS1912, WS2811, TM1829,TA9912,TM1812,TM1809,TM1804,TM1803, INK1003, TLS3001, BS0825,BS0901, DMX512,APA102,LPD6803,LPD8806,LPD6813,UCS6909, UCS6912,WS2801,WS2811,DZ2809,LPD5109,P9813,P9816,SM16716,SD600, MBI6021,MBI6024,MY9221. |
Features:
1.4 output ports can control more pixels, totally 4,094pixels.
2.Support SD card 4GB Max, can play 16 DAT effect files in one unit at most.
3.Customer can adjust the brightness of lights
4.Perfect compatible with DMX512(1990) international standard protocol. Accord with EMC electromagnetism compatibility, good anti-jamming capacity.
5. Many pieces of YM-ST4K-B can work wireless synchronously.
connection:
Application:
1 pcs/inner box,20pcs/carton.
12kgs/carton.
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products
Cetificate:
Good after-sales service:
After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
1.Payment methods:T/T,Western Union, place the order on alibaba directly, etc
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:5-7 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx (door to door service),by sea, air and etc
4.Sample is available, not limited quantity.
