sd card controller with remote, item number YM - H802SE, touch controller, led strip pixel controller,
Composition:
This led controller is composed of three parts:

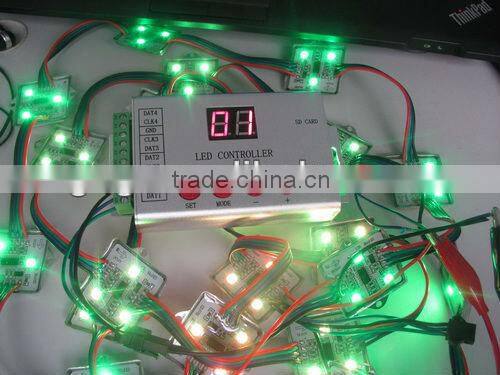

1. Single LED controller(YM-H802SE)-- provide 4 ports for data output, each port can control 2048 pixels, so totally it can control 4*2048= 8192
2. Lighting control software- install you computer, edit the display effects or video you want, transfer them to SD card, and then playback in controllers.
3. IR remote panel, to adjust play speed, clock rate, dat file selection.
Specification and Parameter:
Load Capacity | 4*2048=8192pixels |
Grayscales | 256levels R,G,B each channel |
Input Voltage | DC5V-24V |
Power Consumption | 1W |
Software | LED Video |
Size | L102 x W82 x H24 |
Temperature | -40C°--70C° |
Control IC | LPD6803,LPD8806,LPD6813,UCS6909, UCS6912,UCS1903,UCS1909,UCS1912,TLS3001,TM1812, TM1809,TM1804,TM1803, DZ2809,WS2801,SD600,D705,P9813, SM16716, WS2801,WS2811, DMX512 etc. |
Features:
- 4 output ports can control more pixels, totally 8192pixels.
- Support SD card 2GB Max, can play 64 DAT effect files in one unit at most.
- Play speed can be adjusted from 1 to 50 Frame/s, and working frequency from 0.1MHz to 2.0MHz.
Definition of ports:
Port 1 | Port 2 | Port 3 | Port 4 | ||||||||
GND | CLK | DAT | GND | CLK | DAT | GND | CLK | DAT | GND | CLK | DAT |
GND | D- | D+ | GND | D- | D+ | GND | D- | D+ | GND | D- | D+ |

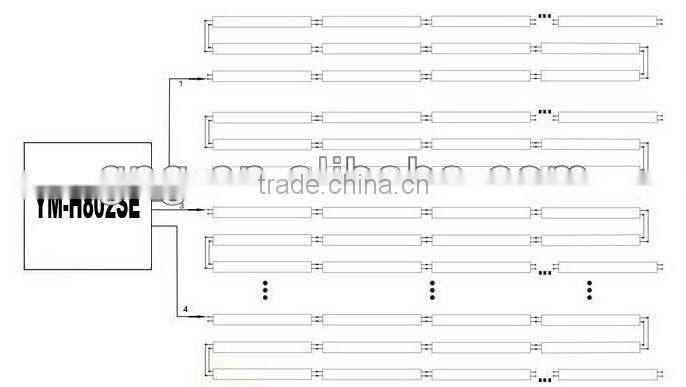

Conjunction:

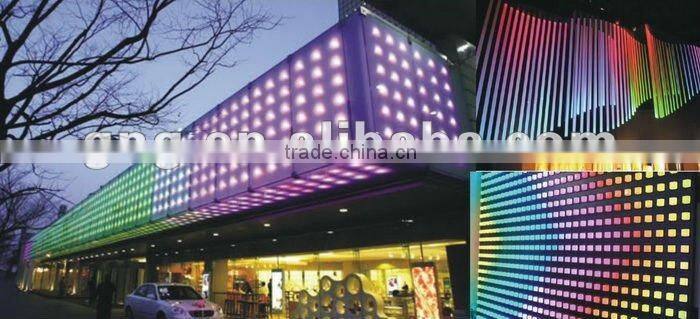

Application:
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
7.GG and YM brand get the good repulation from all over the world
1.Payment methods:T/T,Western Union
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:No quantity limit for the trial order
