Introduction:

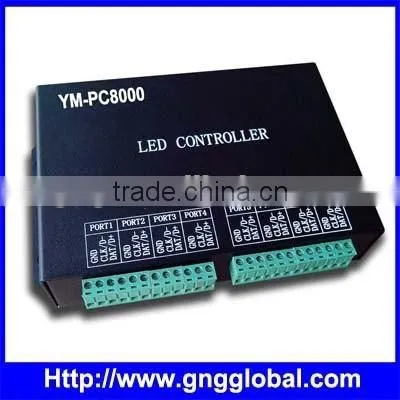

l YM-PC8000 can be connected to computer via Ethernet port to control LED lights. Under our own software LEDStudio, customers can realize many display effects, can text, picture and video.
l YM-PC8000 has 8 output ports. The 8 output ports can be used flexibly(Total pixel is no more than 8192).
l It can extend loading capacity by connecting itself (max 255pcs of YM-PC8000) to control led pixel lights, the total capacity can reach 100,000pixel lights Max.
System Composition:
This led control system is composed of Three parts:
1. LED controller – YM-PC8000 provide 8 ports for data output, can control 8,192 pixel lights Max.
2. Computer- YM-PC8000 need work with computer via Ethernet port.
3. LEDStudio—Installed on computer, program display effects of lights, and playback to led pixel lights. The software only support Windows OS, not support MAC.
Specification and Parameter:
|
YM-PC8000 |
Working Voltage |
AC110 / AC220V |
Power |
1.5W |
Load Capacity |
8,192 pixels/pc, (100,000pixels totally) |
Grayscale |
R, G, B each 256levels (for En_ 65536 levels) |
Temperature |
-30 – 70 ℃ |
Unit Size |
L189XW123XH40mm |
Drive IC |
LPD6803,LPD8806,LPD6812,LPD6813,LPD1882, PD1889, LPD1883,LPD1886 |
,DMX512,HDMX,APA102,MY9221,P9813,LD1510,LD1512,LD1530,LD1532, UCS6909,UCS6912,UCS1903,UCS1909,UCS1912,WS2801,WS2803,WS2811, DZ2809,SM16716,WS2801,WS2803,WS2811,DZ2809,SM16716,TLS3001, TLS3002,TM1812,TM1809,TM1804,TM1803,TM1914,TM1926,TM1829, TM1906,INK1003,BS0825,BS0815,BS0901,LY6620,DM412,DM413,DM114, DM115,DM13C,DM134,DM135,DM136,74HC595,6B595,MBI6023,MBI6024, MBI5001,MBI5168,MBI5016,MBI5026,MBI5027,TB62726,TB62706,ST2221A, ST2221C,XLT5026, ZQL9712,ZQL9712HV |
Features:
1. YM-PC8000 can be connected to computer via Ethernet port to control LED lights. Under our own software LEDStudio, customers can realize many display effects, can text, picture and video.
2. One Ethernet port can connect 255 pcs of YM-PC8000 in serial, and can control 100,000pixel lights.
3. More control functions: it can control various normal drive IC lights, and or various customized drive IC lights.
4. High speed photoelectric isolated signal input and output, to ensure the control system safety.
5. Control system realize RGB 256 scales per color, can make more than 16.7M kinds color, for ICs with Enable, can reach 65536 levels.
6. Project setting agility: realize adjust the brightness and speed separately.
7. Customized software: easy to setup the lighting project system. Create lighting data by various methods. Refresh data fast.
8. Clock rate is adjustable from 100KHz to 50MHz.

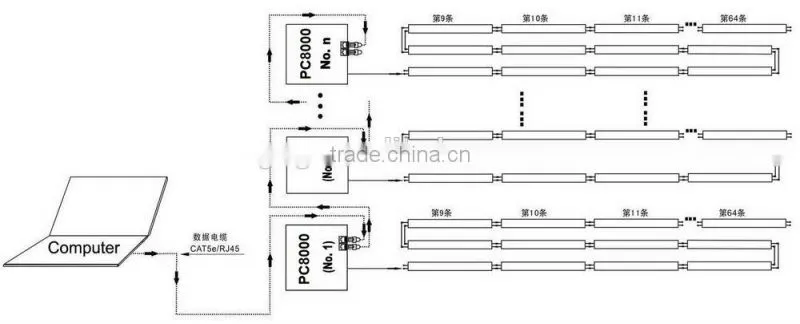

Conjunction:
Application:
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
7.GG and YM brand get the good repulation from all over the world
1.Payment methods:T/T,Western Union
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:No quantity limit for the trial order
