4-30T/H Shisha Charcoal Ball Briquette Press Machine Plant
- Shanghai Qingdao
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | GEMCO | Model Number | GCXM-1,4,6,8 | |
| Voltage | 380V,50HZ,3PHASE | Power(W) | 5.5-90KW | |
| Certification | ISO, CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

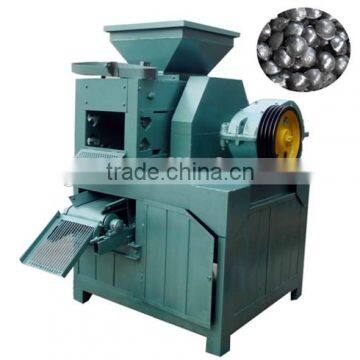

4-30T/H Shisha charcoal ball briquette press machine plant

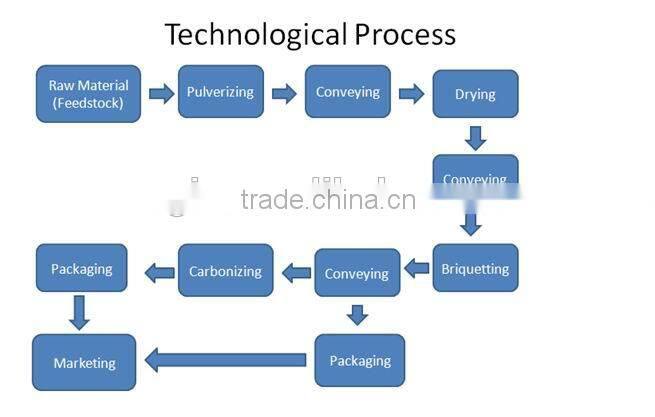

We hereby showcase products in such categories as pulverizing equipment, drying equipment, conveying equipment, briquetting equipment and packing equipment in terms of the technological process of turning raw material into finished briquettes, therefore, you can grasp the panorama of the entire process.
Equiment Classification for Briquetting
- Pulverizing Equipment
Pulverization possibly for you as the first step for biomass handling plays a big role in dwindling the size of raw material. Some clients are intent on using wood branches and twigs, waste residuals from lumber mills or saw mills to produce biomass by-products, for example biomass briquettes. However, the raw materials you possess are probably oversized and need crushing. Therefore, some pulverizer models such as drum chippers, crusher and hammer mill by GEMCO may be taken into account as the good way out. Besides, if you want to peel off wood logs before putting the wood logs into pulverizing equipment, herewith are our wood barking machine which will be suitable for you. And the bark can be used as fuel for drying system.
- Drying equipment
Drying as another step of biomass manufacturing also exerts a great impact upon materials. As we mentioned in the GEMCO, moisture alteration will also decide the quality of biomass products. GEMCO herewith has some drying system models presented for clients.
- Conveying Equipment
Conveying as another step of biomass manufacturing is also necessary through other steps as a whole. GEMCO hereby presents several models of conveying system for your reference.
- Briquetting Equipment
Briquetting is the most important step of a production line. During this course, it also embodies some technical concepts which shall be comprehended before put into use. Temperature and compression clearance(aka. tolerance clearance), count most of them. More details will be given together with specific models of briquette machines hereunder.
- Packing Equipment
Packing is an indispensible step for industrialized production of briquettes and pellets. GEMCO can also offer clients packing machines to package either pellets, briquettes or charred briquettes. Packing machines made by GEMCO enjoy a good reputation for being a high efficient assistant of briquetting industry, pellet field and charcoal packaging.
Parameter
Model | GCXM-1 | GCXM-4 | GCXM-6 | GCXM-8 | GCXM-10 | GCXM-15 | GCXM-20 | GCXM-30 | ||||||||||
Producing capacity | 1-2T/H | 4TPH | 6TPH | 8TPH | 10TPH | 15TPH | 20TPH | 30TPH | ||||||||||
Width of roller | 200mm | 240mm | 250mm | 280mm | 300mm | 336mm | 400mm | 500mm | ||||||||||
Diameter of roller | 290mm | 360mm | 400mm | 450mm | 550mm | 650mm | 750mm | 850mm | ||||||||||
Power | 5.5kw | 7.5-15kw | 11-18.5kw | 15-22kw | 18.5-30kw | 30-45kw | 55-75kw | 75-90kw | ||||||||||
Speed of main shaft | 27r/min | 18r/min | 15r/min | 13r/min | 10r/min | |||||||||||||
Retarder | ZQ235 | ZQ350 ZQ400 | ZQ400 ZQ500 | ZQ500 | ZQ500 ZQ650 | ZQ650 ZQ750 | ZQ750 | ZQ850 | ||||||||||
Type of pressure | Mechanical | Mechanical & Hydraulic | ||||||||||||||||
Material of roller | 65Mn | 65Mn 9cr2Mn | ||||||||||||||||
Form of structure | Two roller single press | Four roller double press | ||||||||||||||||
Bearing of main shaft |
| 319*4 | 2097724*4 | 2097732*4 | 2097734*4 | |||||||||||||
Main shaft | 45# Steel | D: 95mm 45#steel | D:110mm 45#steel | D:120mm 45# steel | D:135mm forging steel | D:165mm forging steel | D:250mm forging steel | |||||||||||
Shape and size | According to your request | |||||||||||||||||
