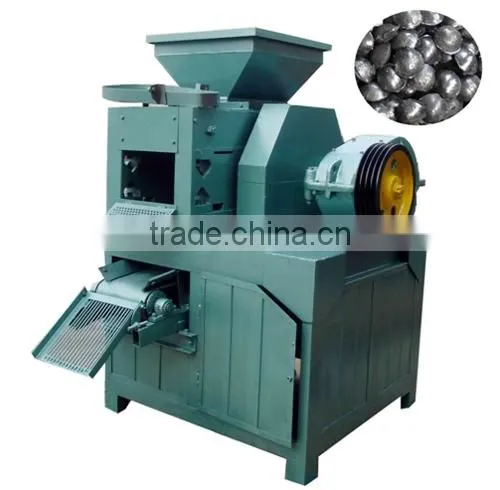

HOT SALE Peat Briquettes Making Machine
US$ 1,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
GEMCO / AGICO GROUP
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GMC-YKY012 Hydraulic Sawdust Briquette Press MachineUS$ 14,999 - 19,999MOQ: 1 Set -
Manufacture of BBQ Charcoal Briquette Making MachineUS$ 2,900 - 50,000MOQ: 1 Set
-
120 kg per Hour Wood Chip Block Making MachineUS$ 14,999 - 19,999MOQ: 1 Set
-
Peat Fuel Round Charcoal/Coal Briquetting Making MachineUS$ 2,900 - 10,000MOQ: 1 Set
-
Coal Ball Briquette MachineUS$ 2,000 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
GEMCO / AGICO GROUP
Model Number
GCXM peat briquettes making machine
Voltage
380V, 50HZ, 3PHASE
Power(W)
7.5kw
Weight
1200KG
Dimension(L*W*H)
1860*800*1360mm
Certification
BV ISO
Warranty
1-3year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
peat briquettes making machine can process coal, coke, aluminum powder, clay, alumina, active charcoal powder, ore dust, ironpeat briquettes making machine In Ireland
AGICO supply your three type roller type peat briquettes making machine
- Two rollers single press
- Four-roller double-pressing type
- Four-roller double-pressing type Mechanical and HydraulicIt structure

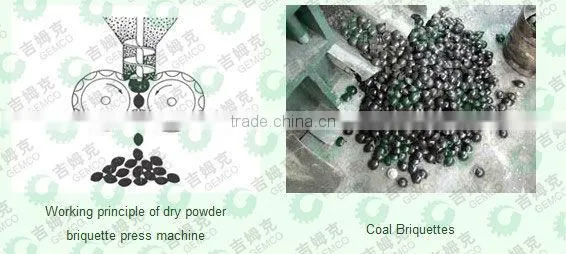

Briquettes made with binders are usually pressed at low pressure. When briquettes are made without binders, however, the success of the process depends upon crushing or plastically deforming the particles to bring them closely together.
Appropriate Raw Materials
- Charcoal powder / charcoal dust: raw material powder, silicomanganese alloy, etc.
- Coal: Coal powder, middle coal, slime peat, coke powder, lignite etc.
- Other material: fireproof material, desulfurization gypsum, dolomite etc.
| Model | GCXM-1 | GCXM-4 | GCXM-6 | GCXM-8 | GCXM-10 | GCXM-15 | GCXM-20 | GCXM-30 |
| Producing capacity | 1-2T/H | 4TPH | 6TPH | 8TPH | 10TPH | 15TPH | 20TPH | 30TPH |
| Width of roller | 200mm | 240mm | 250mm | 280mm | 300mm | 336mm | 400mm | 500mm |
| Diameter of roller | 290mm | 360mm | 400mm | 450mm | 550mm | 650mm | 750mm | 850mm |
| Power | 5.5kw | 7.5-15kw | 11-18.5kw | 15-22kw | 18.5-30kw | 30-45kw | 55-75kw | 75-90kw |
| Speed of main shaft | 27r/min | 18r/min | 15r/min | 13r/min | 10r/min | |||
| Retarder | ZQ235 | ZQ350 ZQ400 | ZQ400 ZQ500 | ZQ500 | ZQ500 ZQ650 | ZQ650 ZQ750 | ZQ750 | ZQ850 |
| Type of pressure | Mechanical | Mechanical & Hydraulic | ||||||
| Material of roller | 65Mn | 65Mn 9cr2Mn | ||||||
| Form of structure | Two roller single press | Four roller double press | ||||||
| Bearing of main shaft | 319*4 | 2097724*4 | 2097732*4 | 2097734*4 | ||||
| Main shaft | 45# Steel | D: 95mm 45#steel | D:110mm 45#steel | D:120mm 45# steel | D:135mm forging steel | D:165mm forging steel | D:250mm forging steel | |
| Shape and size | According to your request | |||||||
Feel free to contact us for more details!
