Specifications
Model: GCXM-1 coal briquetting equipmentPower: 5.5kw
Producing capacity:1-2TPH
Diameter of roller: 290mm
Width of roller:
reasonable price manufacture coal briquetting equipment CONTACT NOW!!
GCXM model coal briquetting equipment is design structure of two rollers single press which is suitable for individual or small industry with low cost. It's widely used in compressing the coal gangue powder, peat, pulverized coal, iron powder, coking coal, aluminum powder, scrap iron and tin oxide, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke, waste residue etc.

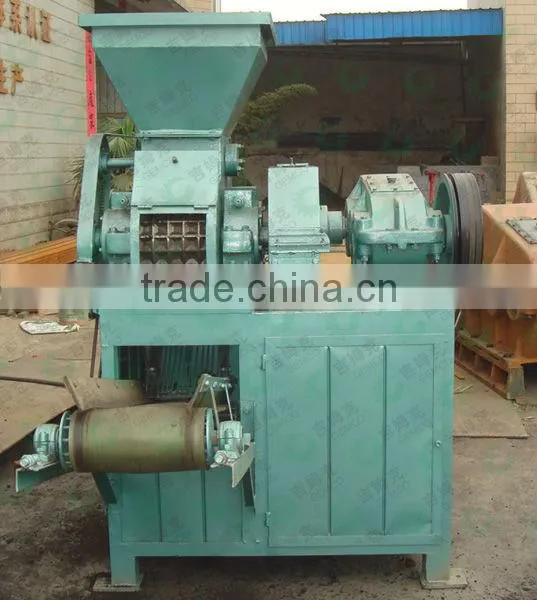

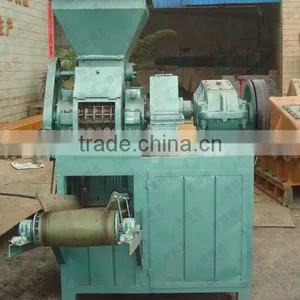

Model: GCXM-1 coal briquetting equipment
| Model | GCXM-1 |
| Power | 5.5kw |
| Producing capacity | 1-2TPH |
| Diameter of roller | 290mm |
| Width of roller | 200mm |
| Form of structure | Two rollers single press |
| Overall size | 1200×1000×1420 |
| Weight | 560kg |
|
General information |
peat briquette machine to press the powder material into briquette. the briquette is energy saving, convenient to transport, thus it improve the use ratio of waste material, has good economic effectiveness. |
Whole line Flow chart |
briquette making flow chart: Raw material--crusher--conveyor-- roller grinder--binder mixer--conveyor- briquette machine-dryer--final briquette |
Characteristics |
Raise Added Value coal briquette making machine High briquette ratio coal briquette making machine Low energy consumption coal briquette making machine High pressure coal briquette making machine Strong structure coal briquette making machine Long life span coal briquette making machine |
Material |
Coal,coal fine,coal slurry,charcoal,charcoal dust, charcoal fine,metal powder,metal scrap, limestone,copper,sludge,iron oxide.peat, Carbon black,mineral powder,white coal, lignite coal,brown coal |
|
Working Principle |
1.Main part of briquette making machine is provided with motive power by electromagnetic speed motor, through belt pulley, cylindrical gear reducer, transmit to the main drive shaft by bar pin coupling. 2. Drive shaft and driven shaft of charcoal briquetting machine use the open gear to ensure synchronous operation, behind the driven shaft bearing block, set a hydraulic device. |
When you send email to briquette making machine |
1 what is the raw material? 2 what is the moisture and diameter of raw material? 3 what is the capacity you want to deal with per hour? 4 Do you have any requirement about the final briquette size and shape? |
