Specifications
GCXM Series sawdust briquette charcoal machine1. dust,and charcoal briquette
2.Output is 1-2ton/h
gemco supply 1-2TPH sawdust briquette charcoal machine
Its mainly used in the briquettes making of various material, such as Color and black metallic mine powder: Iron scale, Iron sludge, Precipitator dust, Iron concentrate, Raw material powder, Manganese ore fines, Silicomanganese alloy. Etc.
Coal : Coal powder, Coke powder, Slime peat, Middle coal, Lignite etc.
Other material:
Charcoal powder, fireproof material, Desulfurization gypsum, Dolomite etc.
Anyway, briquetting is the only one way to change the powdery material into briquettes which is suitable for transporting, in the meantime, this way also saves energy

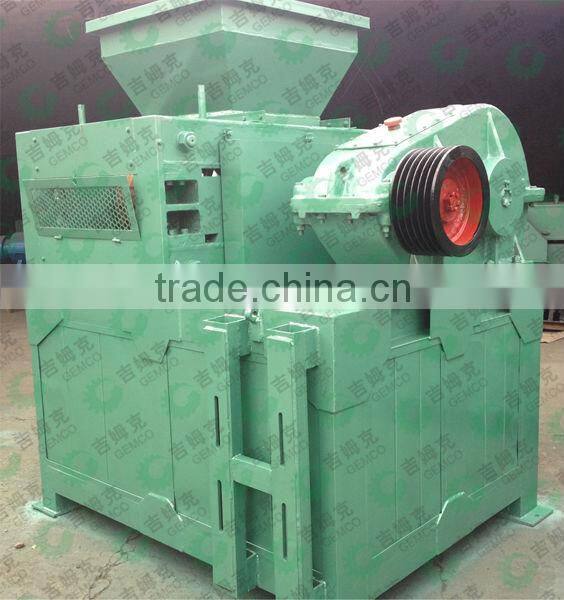

Photos like following:
Specification of sawdust briquette charcoal machine
Model |
GCXM-1 |
Producing capacity |
1-2TPH |
Width of roller |
200mm |
Diameter of roller |
290mm |
Power |
5.5kw |
Speed of main shaft |
27r/min |
Retarder |
ZQ235 |
Type of pressure |
Mechanical |
Material of roller |
65Mn |
Form of structure |
Two roller single press |
Bearing of main shaft |
|
Main shaft |
45# Steel |
Shape and size |
according to your request |
This kind of sawdust briquette charcoal machine has two larger rollers in a fixed position in the frame, the other two smaller rollers are moveable. As its named implied, it has four rollers and do twice pressing in production of briquettes, so the briquette is stronger and in higher density, the surface of briquettes is smoother.

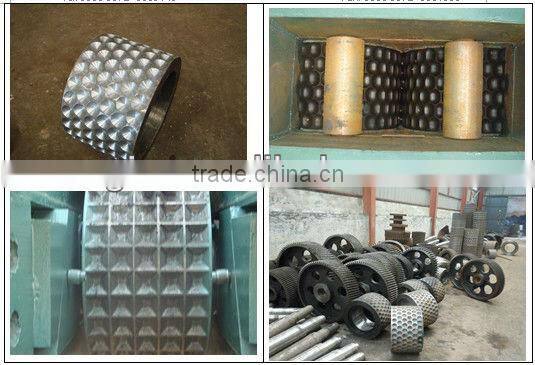

Photos of Roller and Structures:
sawdust briquette charcoal machine can consist a full plant with other equipment likeconveyor, crusher, dryer and etc. Pls see the pictures in the following.
With the purpose of ensuring the final product’s quality and mechanical strength, special treatment should be taken to ensure that the granule size fed to the machine is smaller than 3mm, the perfect size is smaller than 1–2 mm in the range of 30-40%, with no more than 10% over 2 mm. The moisture content of the mixture also can affect the quality of the final product, and it should be kept in the range of 8-10%.
Any question about the sawdust briquette charcoal machine, welcome to contact us!
