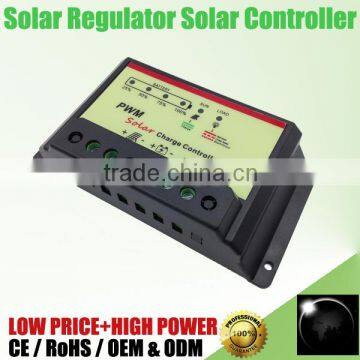

Solar Regulator 12V 24V 20A XTD220
Negotiable
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Guangzhou/Shenzhen
- L/C D/P D/A
You May Like
-
20A remote solar battery charge controller, 12/24 Volts, IR1220, easy control
-
Solar Charge Controller PWM 12V/24V 30A with LCD
-
Solar Battery Charge and Discharge Controller, 12V 20A XTD1220
-
Solar Charge Controller Solar Energy System Controller, 12V 24V 30A KTD1230
-
Solar Panel Charge Controller Solar Energy System Controller, 12V 20A XTD1220
-
Solar Battery Controller, Battery Charging and Discharging controller 12V 24V 5A KTD1205
Product Details
| Place of Origin | Guangdong, China | Brand Name | Coretek | |
| Model Number | XTD220 | Application | Charger Controller | |
| Rated Voltage | Other, 12V/24 | Maximum Current | 20A |
Product Description
XTD-Series
PWM Solar charge controller
Feature
1.Build-in industrial micro controller.
2.Fully 4-stage PWM charge management.
3.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
4.Dual mosfet Reverse current protection ,low heat production.
Specification
MODEL | XTD210 | XTD220 | XTD110 | XTD120 |
Batt voltage | 12V/24V 12V | |||
Charge current | 10A | 20A | 10A | 20A |
Discharge current | 10A | 20A | 10A | 20A |
Max Solar input | 21V | |||
Charge drop | <0.2V | |||
Discharge drop | <0.25V | |||
Equalization | 14.8V | |||
Bulk | 14.5V | |||
Acceptance | 14.2V PWM | |||
Float | 13.8V | |||
Charge reconnect | 13.0V | |||
Discharge stop | 11.2V | |||
Discharge reconnect | 12.6V | |||
Self-consume | <10mA | |||
Temperature compensation | N/C | |||
USB output | 5V 3A | N/C | ||
Operating temperature | -35~+60 ℃ | |||
Size/Weight | 133*70*35mm /150g | |||
*Product specifications are subject to change without prior notice
