Home > Products > 1Amp-60Amp Solar Charge Controller > Solar Charge Controller Solar Energy System Controller, 12V 24V 30A CY10A-1230

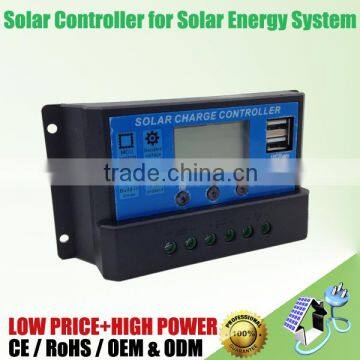

Solar Charge Controller Solar Energy System Controller, 12V 24V 30A CY10A-1230
Negotiable
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Guangzhou/Shenzhen
- L/C D/P D/A
You May Like
-
1A, 3A, 5A solar panel charge controller, mini size, 12V, SC1205
-
Solar Lighting Controller with LCD display, CY30A, 30A 12V
-
Solar Battery Charge and Discharge Controller, 12V 24V 15A KTD1215
-
Solar Charge Controller Solar Energy System Controller, 12V 24V 30A KTF1230
-
Solar Charge Controller Solar Energy System Controller, 48V 30A KTF4830
-
10 Amps LCD solar controller, 12V 24V automatic, RTD1210, with low heat
Product Details
| Place of Origin | Guangdong, China | Brand Name | Neutral Packing | |
| Model Number | CY10A-1230 | Application | Charger Controller | |
| Rated Voltage | Other, 12V/24V auto-adapt | Maximum Current | 30A |
Product Description
CY-Series
PWM Solar Charge Controller
Features
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual MOS Reverse current protection ,low heat production.
Specifications
MODEL | CY10A-1210 | CY10A- 1220 | CY10A- 1230 | CY10A- 4820 | CY10A- 4830 | ||
Batt voltage | 12V/24V auto | 48V | |||||
Charge current | 10A | 20A | 30A | 20A | 30A | ||
Discharge current | 10A | 20A | 30A | 20A | 30A | ||
Max Solar input | <50V | <80V | |||||
Equalization | B01 sealed | B02 Gel | B03 flood | ||||
14.4V | 14.2V | 14.6V | |||||
Float charge | 13.7V(defaul,adjustable) | ||||||
Discharge stop | 10.7V(defaul,adjustable) | ||||||
Discharge reconnect | 12.6V(defaul,adjustable) | ||||||
USB output | 5V/3A | ||||||
Self-consume | <10mA | ||||||
Operating temperature | -35~+60 ℃ | ||||||
Size/Weight | 150*78*35mm /150g | ||||||
*all red color voltage X2 ,X4 while using 24V /48V system.
*Product specifications are subject to change without prior notice.
