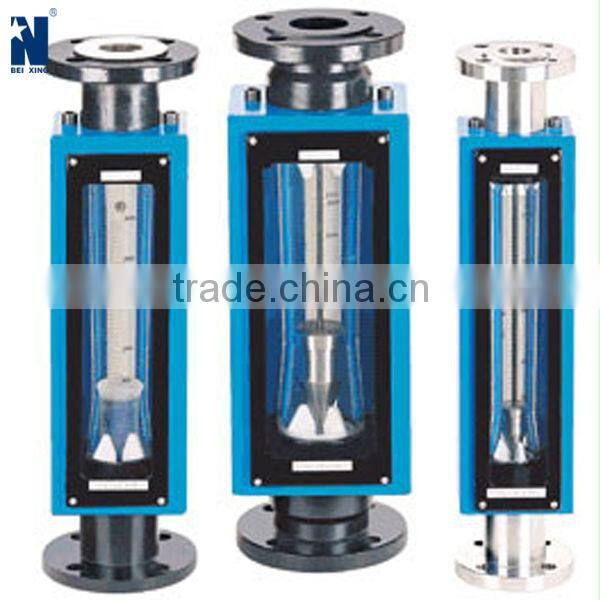

FA24 Gas flow meter with anticorrosive material
Introduction
FA24 Type glass rotameter adopt international advanced technology and equipment and the quality performance can reach the international standard.
Flange connection can rotate to adjust four installation holes,In the case of flow meter not leave the pipeline.It is convenient to change the cone tube and float.
Feature
1.High temperature resistant
2.Wide measuring range
3.Whole steel plate molding
4.Safety protection the glass
Material
Common type
Guide bar,float | 1Cr18Ni9Ti |
Base | Cast iron, Stainless steel (1Cr18Ni9Ti/316/136L) or other material |
Throttle valve | Fluoroplastics |
Sealing ring | High temperature resistant rubber |
Anti-corrosion type
Float | Outsourcing fluorine plastic |
Base | Lined with fluorine plastic |
Throttle valve | Fluoroplastics |
Sealing ring | Fluorine rubber |
Basic Parameters
Bore (DN) | Type | Measuring range | Loss pressure (Pa) | Maximum pressure (Mpa) | Maximum Temp °C | Accuracy level | |
Water(20°C)L/h | Air(20°C 1.013 ×105Pa)m3/h | ||||||
DN15 | FA24-15 FA24-15F | 10-100 16-160 25-250 40-400 63-630 | 0.3-3 0.5-5 0.8-8 | 1100 1200 1700 2000 2500 | 1.0 | 180°C | 1.5;2.5 |
DN25 | FA24-25 FA24-25F | 63-630 100-1000 160-1600 | 2-20 3-30 | 2800 4000 5000 | |||
DN40 | FA24-40 FA24-40F | 250-2500 400-4000 | 8-80 | 4000 5000 | 0.9 | ||
DN50 | FA24-50 FA24-50F | 630-6300 1000-10000 | 20-200 | 6500 8500 | 0.7 | ||
DN80 | FA24-80 FA24-80F | 1600-16000 2500-25000 |
| 8000 9000 | 0.5 | ||
PS: 1. Overall length of flow meter is 50mm
2. The measuring range of Anti-corrosion type is lower than common type.
3.Special specification can be made by order
