Help CenterPrecision Bore Orifice Plate Meter With Integral Fittings/Orifice Flow Meter
Related Products
-
Digtal Flow Meter for Gas or LiquidUS$ 300 - 2,000MOQ: 2 Units -
LZ Metal Tube Water Rotameter/flow Meter With Output SignalUS$ 1 - 832MOQ: 1 Set
-
LZ Metal Tube Variable Area Rotameter/flow Meter With High PressureUS$ 484 - 5,161MOQ: 1 Set
-
LZ Metal Tube Chemical Rotameter /variable Area Flow MeterUS$ 1 - 800MOQ: 1 Set
-
DK80 Glass Tube Water/gas Flow Meter/ RotameterUS$ 1 - 80.6MOQ: 1 Set
Specifications
1.Ability to handle Water,Dry gas,Wet gas,Steam2.Special specification can be made by order
3Hhigh pressure and high quality
Summary
Integrated orifice flow meter is one kind of differential pressure flow meter which fitted with standard orifice throttling element. It has long history; plenty reference material on both theory and practice, mature on usage. It is the most popular flow meter which widely used in many field.
Technical parameter
|
Pipeline bore (mm) |
Throttling element |
1st choice (set) |
50, 80, 100, 125, 150, 200, 250, 300 |
|||
2nd choice |
(25), 65, 175, 225, 275, 325 |
|||||
Throttling β |
Standard orifice |
0.44, 0.52, 0.65 |
||||
Material |
1st choice: 1Cr18Ni9Ti; 2nd choice: 2Cr13 |
|||||
|
Temperature range°C |
Water |
Environment temperature°C |
0 ~ 50°C |
Application temperature°C |
0 ~ 100°C |
|
Dry gas |
0 ~ 50°C |
-25 ~ 200°C |
||||
Wet gas |
0 ~ 50°C |
0 ~ 500°C |
||||
Steam |
0 ~ 50°C |
100 ~ 450°C |
||||
Pressure range |
Nominal pressure: 2.5MPa, 4.0MPa |
|||||
Relative Humidity |
≤95% |
|||||
Flowing range |
Same as the traditional standard orifice flow meter |
|||||
Accuracy |
1% |
|||||
Protection level |
IP65 |
|||||
Power supply |
24VDC |
|||||
Holding part material |
20# steel, A3 steel (optional), 1Cr18Ni9Ti (optional) |
|||||

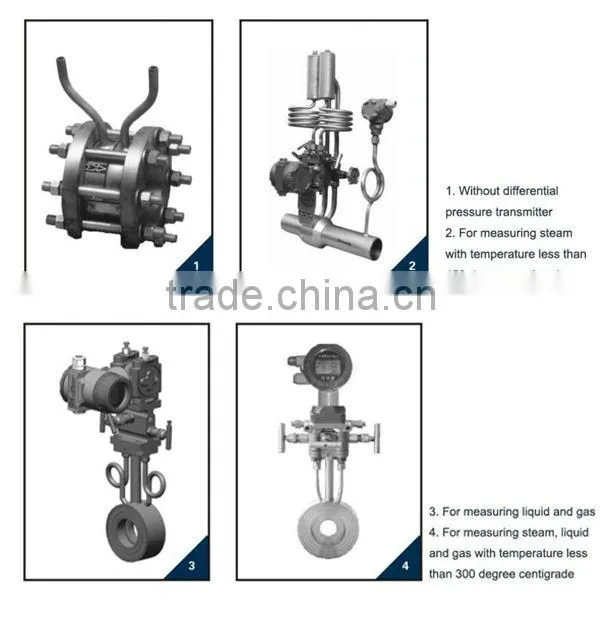

Structure pictures of Integrated orifice flow meter
