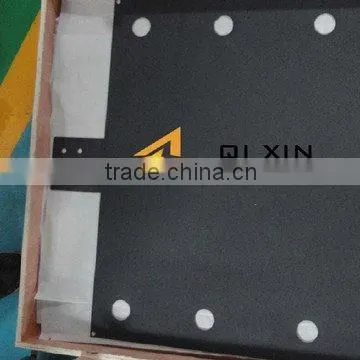

Titanium Anode for Cathode Deposits | |
Material |
Gr1 Titanium as substrate, mixed metal oxide(MMO) as coating |
Technology |
Sand blasting,Acid washing and Brush Coating |
|
Dimension & Shape |
Different dimension and shape are available, process according to customized design/ drawing |
|
Working Parameter |
l Current density≤2000A/M2 l Temperature<60°C l PH 0.1~14 l Max content of Fluoride ion is 200PPM |
Electrolyte |
H2SO4, HCL or HNO3 |
Features |
u Insoluble anode, Stable dimension, u Stable distance of the anode & cathode, Stable cell voltage u Low working voltage, save power/electricity u High purity of the electroposited material u No pollution of the cell u Light weight u The titanium material is recyclable u High property of current efficiency & catalysis u Long working life
|
Applications |
Electrodeposition for Cu, Zn,Ni,Co,Mn,Pd,Cr,Ag,Au,Rh etc |
Packing |
Plastic or paper as inside,plywood case or carton as outside,or according to client's demand |
MOQ |
MOQ flexible,small sample acceptable |

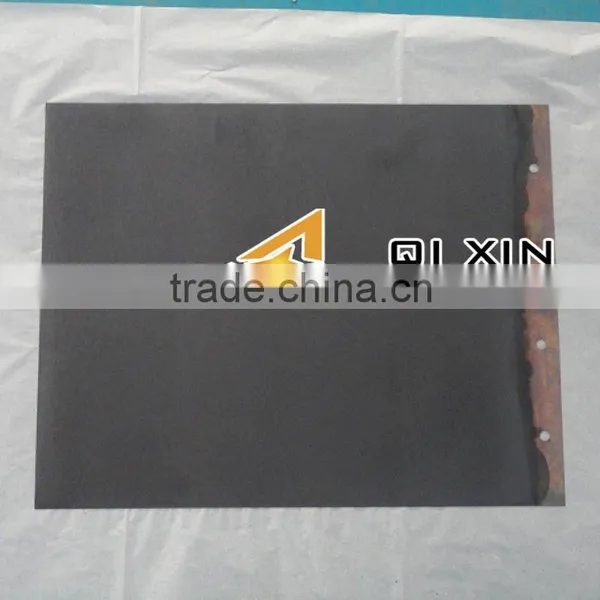

Titanium anode showcase:
Device showcase:
