Horizontal Continuous Foaming Machine

Horizontal Continuous Foaming Machine photo-1
Horizontal Continuous Foaming Machine photo-2
Horizontal Continuous Foaming Machine photo-3
Horizontal Continuous Foaming Machine photo-4
Horizontal Continuous Foaming Machine photo-5
Horizontal Continuous Foaming Machine photo-6
US$ 135,000 - 155,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, Foaming machine
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, Foaming machine
Place of Origin Guangdong, China
Brand Name YA Foaming Machine
Model Number YA-FA
Voltage 380V
Power(W) 130KW
Dimension(L*W*H) L33*W4.5*H3.2m
Weight 30ton
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

 Horizontal Continuous Foaming Machine

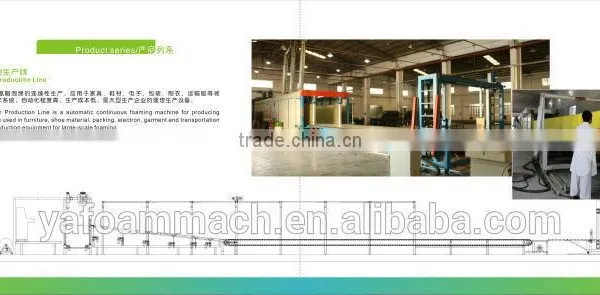

The YA-AF Flexible Foam Production Line is a automatic continuous foaming machine for producing flexible polyurethane foam used in furniture, shoe material, packing, electron, garment and transportation industrial. It’s the ideal production equipment for large-scale foaming.

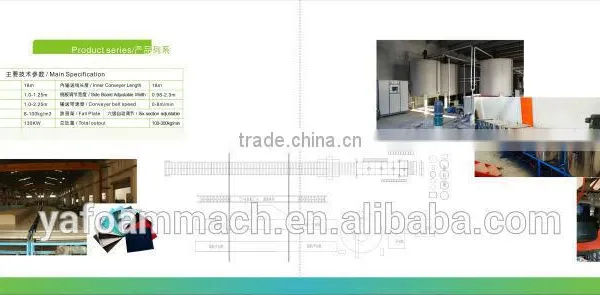

Main Specification

 Oven Length 18m     Inner Conveyer length 18m
Foaming Height 1.0-1.25m Side Borar Adjustable Width 0.98-2.3m
Foaming Width 1.0-2.25m Conveyer Belt Speed  0-8m/min
Foaming Density   8-100kg/m3   Fall Plate  Six section adjustable
Total Power 130KW Total output  100-300kg/min

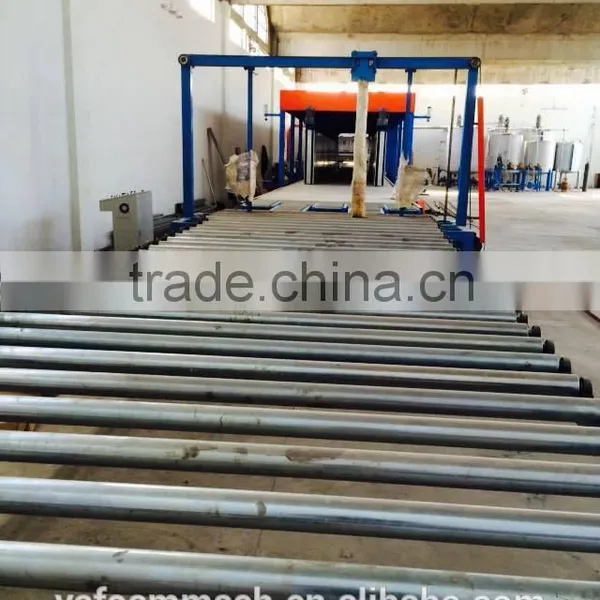

 Double 50m movable conveyer and crane for foaming machine Horizontal Continuous Foaming Machine

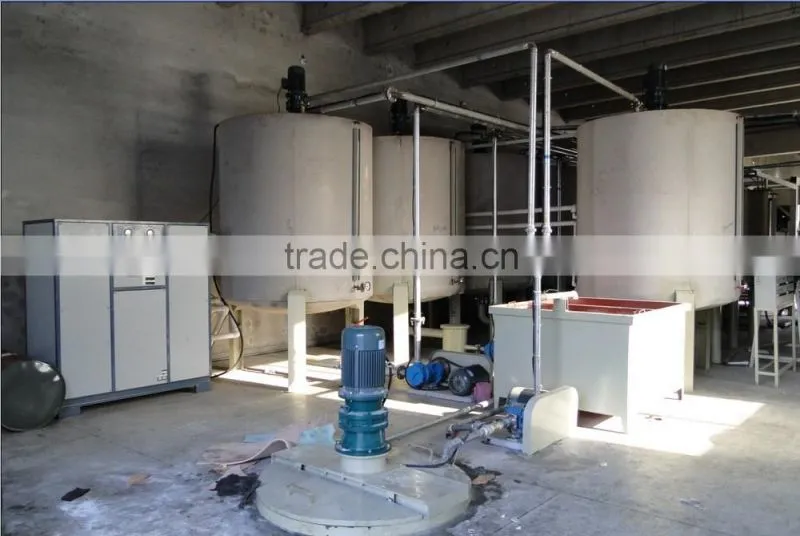

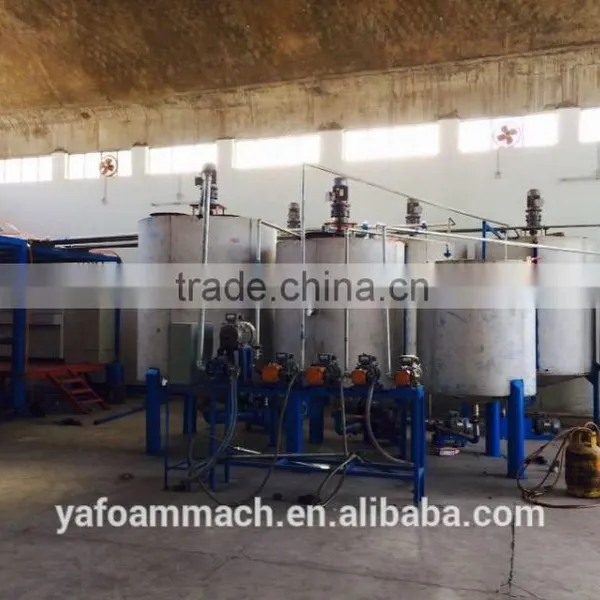

 Material tank standard 5ton for foaming machine Horizontal Continuous Foaming Machine





Packaging & Shipping

 How is the packing for such a big machine?

 For this Horizontal Continuous Foaming Machine we will pack all the parts not the whole set in paper with plastic film and some in wooden case into the container.

Wa then how many container needed?

In order to save the place we will put some parts in the material tank so for one standard 13groups foaming machine without the long conveyer we just need 2*40HQ +1*20GP.

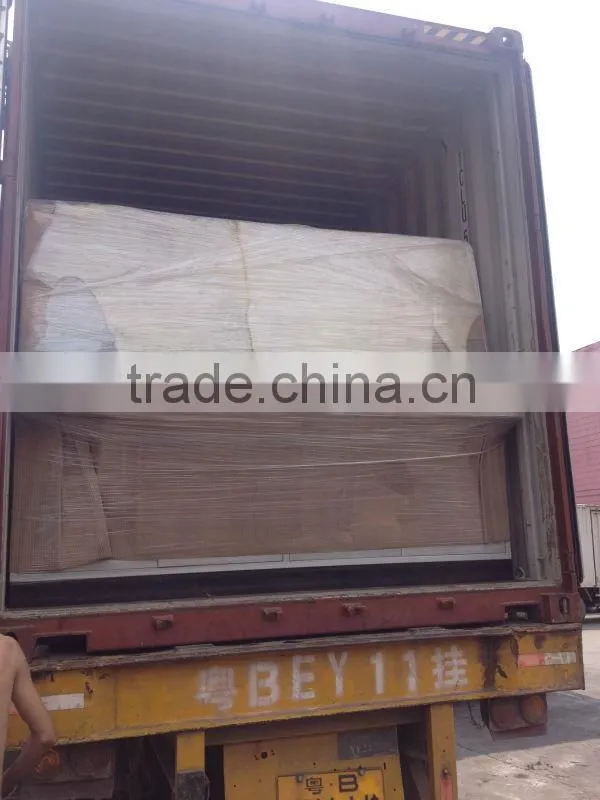

See the following some pic during the loading of foaming machine line

Horizontal Continuous Foaming Machine







Our Services

1.You can come and visit our factory at any time to see the machine and the foaming process.

2.We will provide the operation manual and the routine maintenance guidance to your engineer and also provided the drawing layout according to your factory size.

3.We can also help to choose the best raw material for the foam that you are going to make.

4. We will offer all kind of foaming formulation for your foam product with low cost.





FAQ

Q: Can I see the machine and see the foaming process?

A: Of course. We have our foam factory you can come and see the machine at any time. After you buy the machine from us you can also learn the foaming from us.

Q: I have no knowledage about foam and i dont know what is the size of the building needed for the machine?

A:  We will provide the operation manual and the routine maintenance guidance to your engineer and also provided the drawing layout according to your factory size.







Company Information

Dongguan YangAo Machinery Co., Ltd is specialized in research and development and manufacture foam machines. Take the advance technology of some profession and improvement. Absorb the new originality strictly control the product quality full service tracking insist on manufacturing the high quality products. Our main products YA-AF Flexible Foam Production Line can make the foam for furniture industrial shoes industrial and so on. Our foam machines sales well in and out of China have an excellent public reputation. Our concept is “innovating, quality, service, dedication, thankful”. Try our best to be the No.1 in foam machine industries.

Our head office Chenghui Investment CO.,Ltd and Hangtai Shoe  have their own professional R & D polyurethane products teams. They make the high density foam and memory foam and own its brand name “ MSJ “ products sales well all over the worlds.

Superior service never ends here and your satisfactions is our goal.Choosing YangAo work together and strive for the better.







 We are new and energetically waitting for your inquiry at any time. Just click "send" Now.
